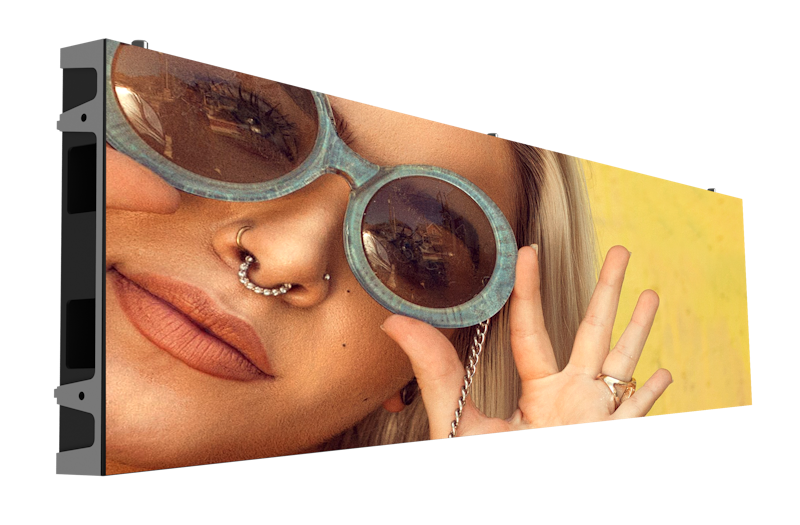

Philips L-Line 7000 Series

41BDL7431L/00

No limits. No boundaries. The Philips L-Line 7000 series is an LED signage solution for endless possibilities in shape and size. Seamless linking and multiple size options enable truly unique displays of any dimension for perfect results.

Get a quote

Technical Specifications

Convenience

Ease of installation	Guide pins
	Light weight
Signal control loop through	RJ45
Power loop through	For 230 V environments: 8 cabinets or less, for 110 V environments: 4 cabinets or less, 10 A max

Accessories

LAN cable (RJ45, CAT-5)	2 pcs
Power cable	2 pcs
QSG	1 pcs

Cabinet

Cabinet construction	Die-Casting Aluminium
Data connector	RJ45
Receiving card quantity	1 pcs
Cabinet size (mm)	1000 x 250 x 40
Cabinet diagonal (inch)	40.6"
Power connector	3 core socket (C14 in, C13 out)
Cabinet resolution (W x H)	320 x 80
Cabinet pixels (Dot)	25,600
Receiving card brand	NovaStar
Weight (kg)	6.40
Cabinet area (m2)	0.25
Receiving card spec.	A5S Plus
Side angle (degree)	90

Power

Black screen power cons. (W)	<11
Max. power cons. BC (W)	<193.1
Max. power cons. AC (W)	<144.1
Input voltage	AC100~240 V (50 and 60 Hz)
Typical power cons. (W)	<48.1

Miscellaneous

Fire retardancy certification	BS 476 Part7:1997
	UL94
Conformal coating	hub board, backside LED module
Regulatory approvals	EN55032
	EN55035
	EN61000-3-2
	EN61000-3-3
	IEC/UL60950
	IEC/UL62368
	IEC62471
	RoHS
	FCC SDOC, Part 15, Class A
	EAC
Warranty	2 years

Picture/Display

Calibration (brightness/colour)	Supported
Colour temperature adjust range	4000~9500 K (by software)
Brightness before calibration	3500 nits
Picture enhancement	Wide colour gamut display
Refresh rate (Hz)	2100~3900 (14 bits:3900 Hz)
Frame frequency (Hz)	50 & 60
Brightness uniformity	>=97%
Viewing angle (horizontal)	155 degree
Aspect ratio	4:1
Brightness after calibration	2750 nits
Usage	Indoor
Placement	Landscape
Viewing angle (vertical)	150 degree
Contrast ratio (typical)	10000:1
Colour temperature default	6500±500 K

Operating conditions

Temperature range (storage)	-20~50 °C
Temperature range (operation)	-20~45 °C
Humidity range (storage) [RH]	10~85%
Humidity range (operation)[RH]	10~80%

Module

Module size (W x H in mm)	249.9*249.9
LED lifetime(Hrs)	100,000 at half brightness
Pixel pitch (mm)	3.1
Pixel constitution	1R1G1B
LED type	SMD 1921 Copper wire
Module resolution (WxH pixels)	80x80
