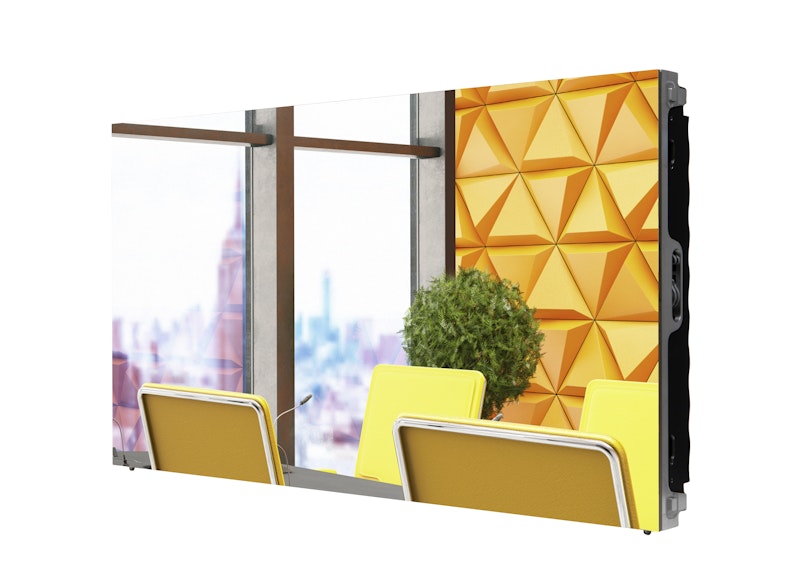

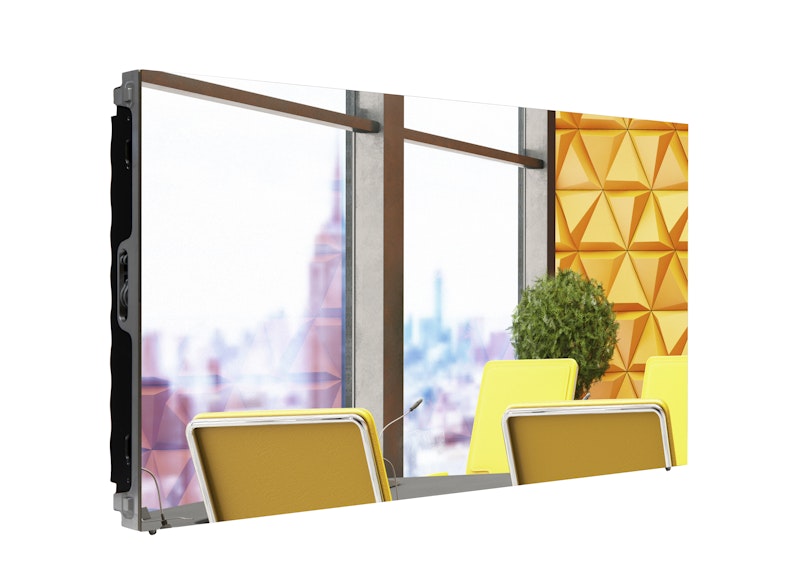

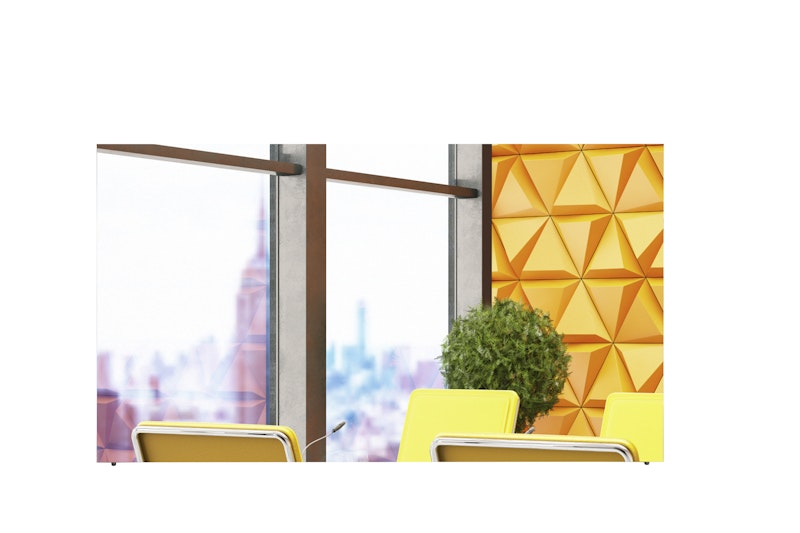

Philips L-Line 9000 Series

27BDL9119L/00

Fill their imagination. Create seamless displays. With an L-Line Professional LED Display Wall, the possibilities are endless. The bezel-free design, wide viewing angle and breathtaking brightness ensure authoritative imaging. At any size.

Get a quote

Technical Specifications

Convenience

Ease of installation	Guide pins
	Light weight
	Locking mechanism for cabinet
Power loop through	For 230 V environments: 8 cabinets or less, for 110 V environments: 4 cabinets or less
Signal control loop through	RJ45

Accessories

Common connecting piece	4 pcs
Power loop through cable	1 pcs
LAN cable (RJ45, CAT-5)	1 pcs
QSG	1 pcs
Screw bolt	4 pcs (M8*20) (Inner Hexagon Screw)

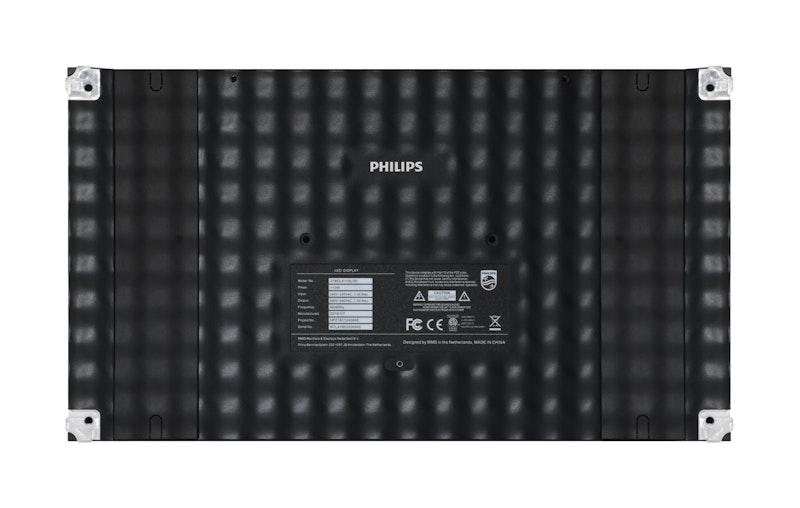

Cabinet

Data connector	RJ45
Cabinet construction	Die-Casting Aluminium
Receiving card quantity	1 pcs
Cabinet diagonal (inch)	27.5 inch
Cabinet size (mm)	608 x 342 x 55
Cabinet resolution (W x H)	320 × 180
Power connector	In/Out(C14/C13)
Receiving card brand	Novastar
Weight (kg)	8(+/-0.4 Kg)
Cabinet area (m2)	0.2079
Cabinet pixels (Dot)	57,600
Receiving card spec.	A5S/A5S Plus

Power

BTU Value m2	1804 BTU/m2
Max Power consumption (W)	<=110 W W
Input voltage	AC100~240 V (50 and 60 Hz)
Consumption (Typical)	<=36 W

Miscellaneous

Regulatory approvals	FCC SDOC, Part 15
	EMC Class B
	EN55032
	EN55035
	EN61000-3-2
	EN61000-3-3
	IEC/UL60950
	IEC/UL62368
	IEC62471
	RoHS
Warranty	3 years

Operating conditions

Temperature range (storage)	-20~50 °C
Humidity range (operation)[RH]	10~80%
Humidity range (storage) [RH]	10~85%
Temperature range (operation)	-20~45 °C

Picture/Display

Calibration (brightness/colour)	Supported
Colour temperature adjust range	4000~9500 K (by software)
Brightness before calibration	900 nits
Refresh rate (Hz)	1920~3840
Picture enhancement	Dynamic contrast enhancement
	Wide colour gamut display
Frame frequency (Hz)	50 & 60
Aspect ratio	16:9
Usage	24/7 hrs, Indoor
Viewing angle (horizontal)	160 degree
Placement	Landscape
Brightness Uniformity	>=97%
Brightness after calibration	800 nits
Colour temperature default	6500±500 K
Viewing angle (vertical)	160 degree
Contrast ratio (typical)	>=3000:1

Module

LED lifetime(Hrs)	100 000
Pixel pitch (mm)	1.9
Pixel constitution	1R1G1B
Module size (WxHxD in mm)	152 x 71 x 10
Module resolution (WxH pixels)	80 x 90
LED type	SMD 1515 Gold wire
