MediaSuite

19HFL5214W/12

Give them Chromecast™ built-in, access to the Google Play™ Store and more. Built for private viewing in healthcare settings, this Android™-powered bedside TV combines intuitive functionality with medical-grade design.

Get a quote

Technical Specifications

Design

Colour	White

Audio

Bathroom speaker out	1.5 W Mono 8 ohm
Sound output Power	5 (2 x 2.5) W
Speakers	2.0
	Down Firing
Sound Features	DTS-HD
	Dolby Atmos Compatible
	Dolby MS12D
	AC-4
	DTS Studio Sound

Accessories

Included	DC Power Adapter
	DC Power Cord 1.5 m
	AC Power Cord
	Warranty Leaflet
	Legal and Safety brochure
Optional	DC Power Cord 3 m 22 AV 1965 A/12
	Easy RC 22AV1601B/12
	Healthcare RC 22AV1604B/12
	Hygenic RC 22AV2204A
	Setup RC 22AV9574A/12

Tuner/Reception/Transmission

Analogue TV	PAL
IP Playback	Multicast
	Unicast
	HLS
	OTT App Channels
Digital TV	DVB-T/T2/C
	HEVC FHD (up to 1080p60)

Wireless Connectivity

Wireless LAN	802.11 ac
	Wi-Fi-Direct

Power

EPREL registration number	964360
Power Saving Features	Eco mode
Energy Label Class	E
Ambient temperature	0 °C to 40 °C
Input	12 V DC
EU Energy Label power	14 W
External power supply	50-60Hz
	AC 100-240 V
Standby power consumption	<0.5 W

Dimensions

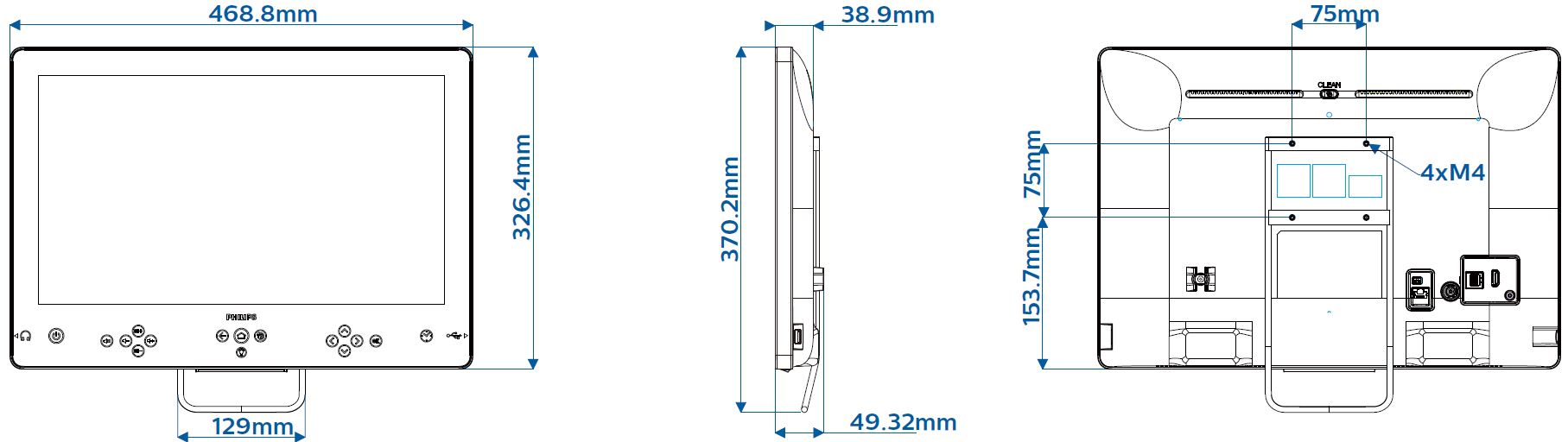

Set dimensions (excl. handle)	(WxHwD) 469x326x39/49 mm
Wall-mount compatible	75 x 75 mm
	M4
Product weight (+handle)	3.8 kg
Product weight	3.45 kg

Picture/Display

Display	LED HD TV
Panel resolution	1366 x 768p
Viewing angle (horizontal)	45/45 degree
Diagonal screen size (metric)	47 cm
Brightness	200 cd/m²
Viewing angle (vertical)	25/40 degree
Diagonal screen size (inch)	19

Healthcare features

Safety	Tempered Glass
	Double isolation class II
	Flame retardant
	Galvanic Isolat. Headphone out
	IEC/EN60601-1
Hygienic	Anti-Fingerprint Glass Front
	Hydrophobic Coating
	Smooth back cover design
	JISZ2801 Anti-microbial housing
Convenience	Reading Light
	Proximity sensor
	TV Handle Bar
	TalkBack
	Independent main speaker mute
	Cleaning Lock Function
Control	Multi-Remote Control
	Nurse call system compatible
	Illuminated Touch Ctrl Buttons
EMC	IEC/EN60601-1-2

Side Connectivity

Headphone out	Mini-Jack
USB1	USB 2.0

Android TV

OS	Android TV™ 9 (Pie)
Memory size (Flash)	16 GB*
Pre-installed apps	Netflix*
	YouTube
	Google Play Store*
	Google Play Movies
	Google Play Games
	YouTube Music

Hospitality Features

CMND&Control	Off-Line Channel Editor
	Off-Line Settings Editor
	Remote Management over IP/RF
	TV Group management
	Local Updates via USB
	Instant Initial Cloning
Interactive DRM	VSecure
	Playready Smoothstreaming
	SecureMedia
Your brand	Customisable Home Screen
	Customisable Welcome App
	Location Name (Geonames ID)
	CMND&Create
	Custom Dashboard (HTML&APK)
Control	AppControl
	JEDI Native Android TV Control
	JSON API for TV Control-JAPIT
	Serial Xpress Protocol
	Crestron Connected
	Joystick
Power control	Quick Start Mode
	Auto Power ON
	Auto Power OFF
Revenue generation	MyChoice
Sharing	Chromecast built in
	Secure Sharing
	Network-managed Sharing
CMND&Check-In	Guest Name
	Guest Language
	Messages
	Bill on TV
	Express Checkout
Convenience	Google Assistant*
	Google Account Login
	Weather Forecast
	>40 Supported Menu Languages
	Clock in OFF mode
	Theme TV
	Wake Up Alarm
	Sleep Timer
Hotel mode	Volume limitation
	Switch-ON Settings Control
	Installation Menu Lock
	Menu lock
	Local Control Lock
	Prison mode

Multimedia

Video playback supported	Formats: H.264/MPEG4 AVC
	MPEG1
	MPEG2
	MPEG4
	WMV9/VC1
	HEVC
	Containers: AVI, MKV
	VP9
Subtitle formats supported	SRT
	SMI
	TXT
Music formats supported	MP3
	AAC
	WAV
	WMA (v2 up to v9.2)
	WMA-PRO (v9 and v10)
Supp. Video Resolution on USB	up to 1920x1080p@60Hz
Picture formats supported	JPG
	PNG
	BMP
	GIF

Rear Connectivity

External Control	RJ-48
Bathroom speaker out	Mini-Jack
Ethernet (LAN)	RJ-45
HDMI1	HDMI 1.4
Antenna	IEC-75

Connectivity Enhancements

HDMI	ARC (all ports)
	Auto Input Selection
EasyLink (HDMI CEC)	One touch play
	System Standby
	RC pass through
	system audio control
RJ48	IR-In/Out
	Serial Xpress interface
