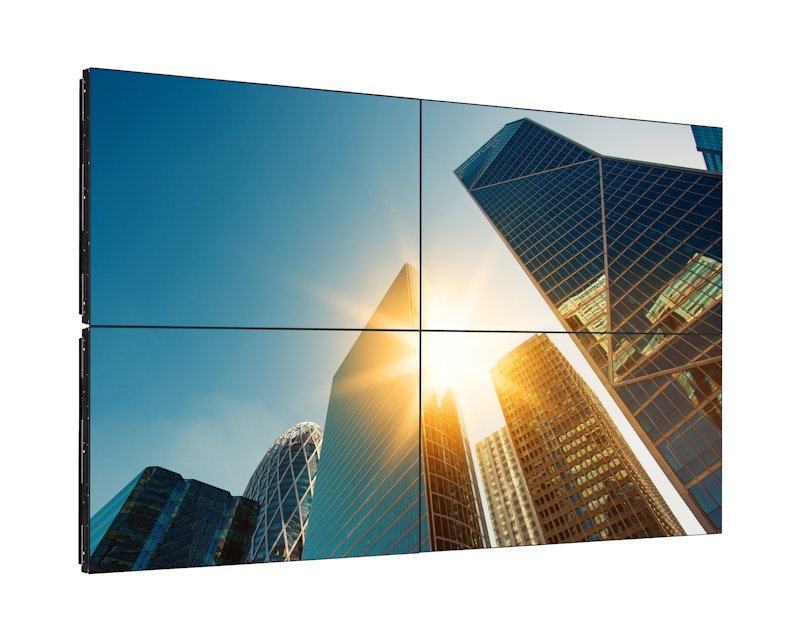

Philips X-Line

55BDL4107X/00

Energy Label: g

Take presentations and corporate branding to the next level. The Philips X-Line Videowall display brings your content to life to ensure absolute audience engagement in every setting with Pure Colour Pro.

Get a quote

Technical Specifications

Connectivity

Video outputDisplay Port 1.3 (x 1)
Audio output3.5 mm Mini Jack (x 1)
Video inputDVI-D (x 1)
VGA (Analogue D-Sub) (x 1)
Display Port1.3 (x 1)
HDMI 2.0 (x 2)
Other connectionsOPS
USB 2.0 (x 1)
Thermal sensor
External controlIR (in) 3.5 mm jack
LAN RJ45 (x2)
Signal loopthrough RJ45 (x 2)
Audio input3.5 mm mini jack (x 1)

Convenience

Ease of installationCarrying Handles
Smart Insert
Screen-saving functionsPixel Shift, Low Bright
Energy-saving functionsSmart Power
PlacementLandscape (24/7)
Portrait (24/7)
Tiled MatrixUp to 15 x 15
Network controllableLAN (RJ45)
Signal loop throughDisplayPort
RJ45

Accessories

Included AccessoriesAC Switch Cover
Gap pad x 3
IR sensor cable (1.8 m) (x 1)
Quick start guide (x 1)
Remote control and AAA batteries
RJ45/RS232 converter
Wire Clamper (x 3)
Power cord
DP cable (x1)
RJ45 cable (x1)
Edge alignment pin (x2)
Kit-1 (x1)
Kit-2 (x2)

Dimensions

Wall Mount400 mm x 400 mm, M6
Set Height683 mm
Set Width1212.2 mm
Set Width (inch)47.72
Set Depth97.7 mm(D@WallMount)/98.9 mm(D@Handle) mm
Smart Insert mount100 mm x 100 mm, 6xM4xL6
Set Depth (inch)3.85 (D@WallMount)/3.89 (D@Handle)
Bezel width0.88 mm + 0.88 mm
Product weight25.33 kg
Set Height (inch)26.89

Sound

Built-in speakers2 x 10 W (RMS)

Power

Consumption (On mode)150 W
Energy Label ClassG
Consumption (Typical)190 W
Standby power consumption0.5 W
Consumption (Max)370 W

Miscellaneous

On-Screen Display LanguagesArabic
English
French
German
Italian
Japanese
Polish
Russian
Spanish
Simplified Chinese
Turkish
Traditional Chinese
Regulatory approvalsCE
FCC, Class A
RoHS
CB
BSMI
ETL
PSE
Warranty3 year warranty

Picture/Display

Brightness700 cd/m²
Panel resolution1920 x 1080p
Pixel pitch0.63 x 0.63 mm
Diagonal screen size (metric)138.7 cm
Optimum resolution1920 x 1080 @ 60 Hz
Display colours1.07 B
Aspect ratio16:9
Dynamic contrast ratio500,000:1
Viewing angle (horizontal)178 degree
Contrast ratio (typical)1100:1
Viewing angle (vertical)178 degree
Diagonal screen size (inch)54.6
Response time (typical)8 ms
Haze28%

Operating conditions

Temperature range (storage)-20 ~ 60 °C
Humidity range (storage) [RH]5 - 95% (without condensation)
Temperature range (operation)0 ~ 40 °C
Humidity range (operation)[RH]20 - 80% (without condensation)
Altitude0 ~ 3000 m
MTBF50,000 hour(s)

Supported Display Resolution

Video formats720p, 50, 60 Hz
1080i, 25, 30 Hz
1080p, 50, 60 Hz
2160 P 50, 60 Hz ((HDMI/OPS/DP)
Computer formats640 x 480, 60, 72, 75 Hz
720 x 400, 70 Hz
800 x 600, 60, 75 Hz
1024 x 768, 60, 75 Hz
1280 x 768, 60 Hz
1280 x 800, 60 Hz
1280 x 960, 60 Hz
1280 x 1024, 60 Hz
1360 x 768, 60 Hz
1366 x 768, 60 Hz
1600 x 1200, 60 Hz
1920 x 1080, 60 Hz
