H-Line

55BDL4002H/00

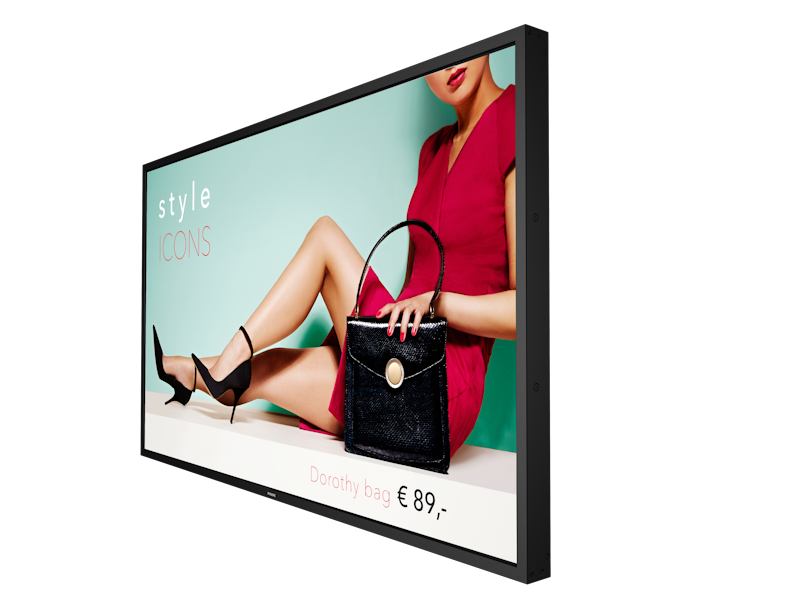

Stay visible day and night with Philips H-Line high bright displays. Astonishing clarity and contrast make this a perfect solution for showcasing engaging content in windows and lighter locations. From airports to shopping malls, and more.

Get a quote

Technical Specifications

Connectivity

Other connections	OPS
	USB 2.0 (x2)
Audio output	3.5mm jack
Video input	Display Port1.2 (x1)
	DVI-I (x 1)
	HDMI 2.0 (x2)
Audio input	3.5 mm jack
External control	IR (in/out) 3.5 mm jack
	RJ45
	RS232C (in/out) 2.5 mm jack
Video output	DisplayPort 1.2 (x1)
	HDMI 2.0 (x1)

Convenience

Energy saving functions	Smart Power
Remote control signal	Lockable
Screen saving functions	Pixel Shift, Low Brightness

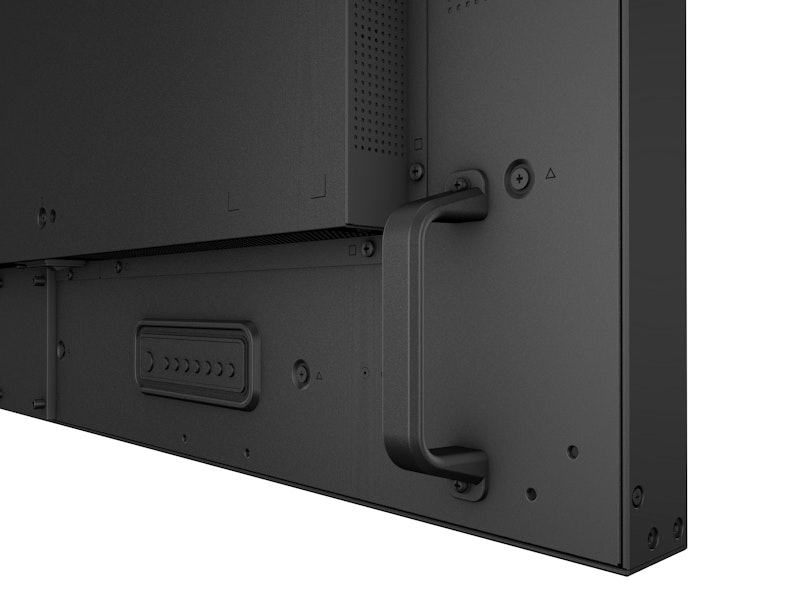

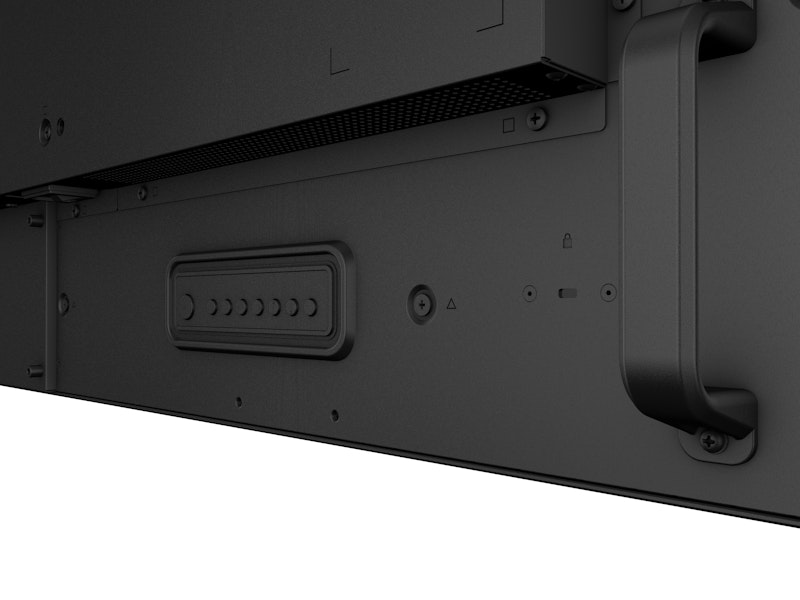

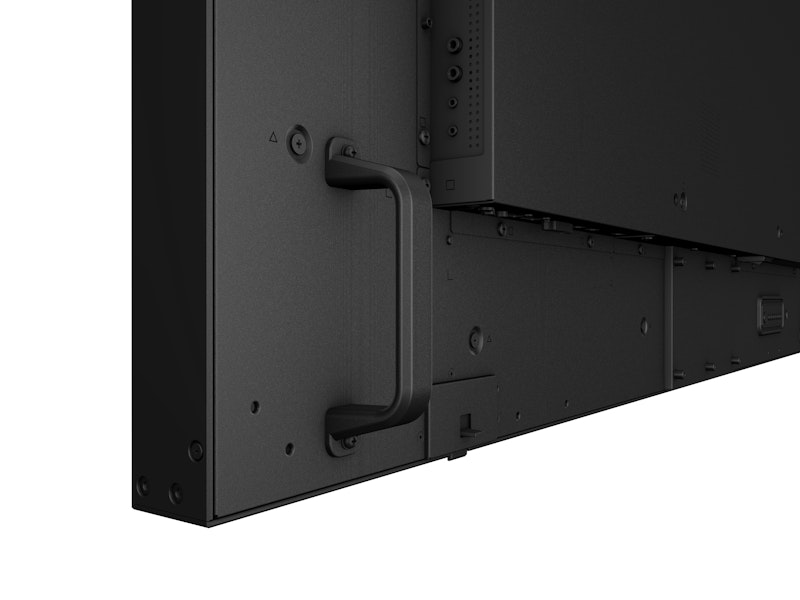

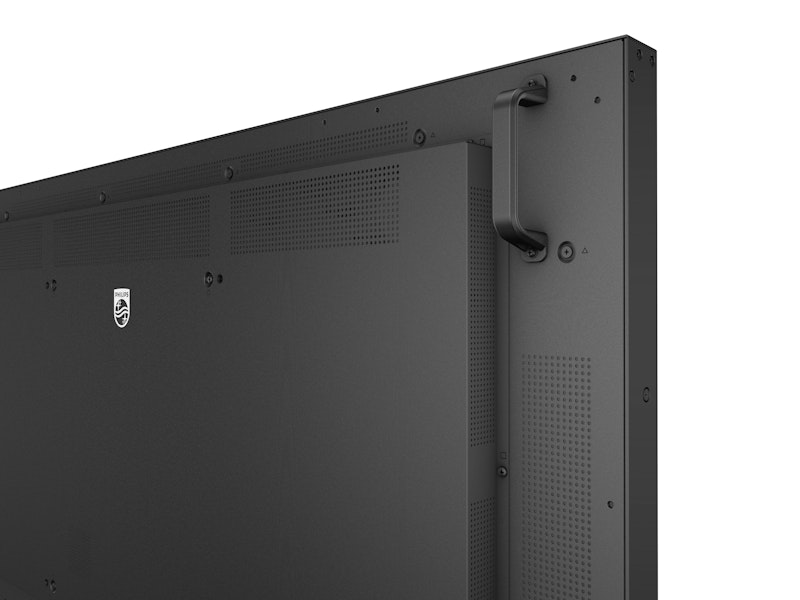

Ease of installation	Carrying Handles
	Smart Insert
Signal loop through	DisplayPort
	RS232
	HDMI
	IR Loopthrough
Keyboard control	Hidden
	Lockable
Network controllable	RS232
	RJ45
Placement	Landscape (24/7)
	Portrait (24/7)

Accessories

Included Accessories	AC Switch Cover
	IR sensor cable (1.8 m) (x1)
	Philips logo (x1)
	Quick start guide (x1)
	Remote control & AAA batteries
	USB Cover and screw x1
	Wire Clamper (x3)
	AC Power Cord
	Edge Alignment Kit
	Open frame kit

Dimensions

Set Height	719.4 mm
Product weight	30.37 kg
Set Width	1248.6 mm
Product weight (lb)	66.95 lb
Set Depth (inch)	3.35

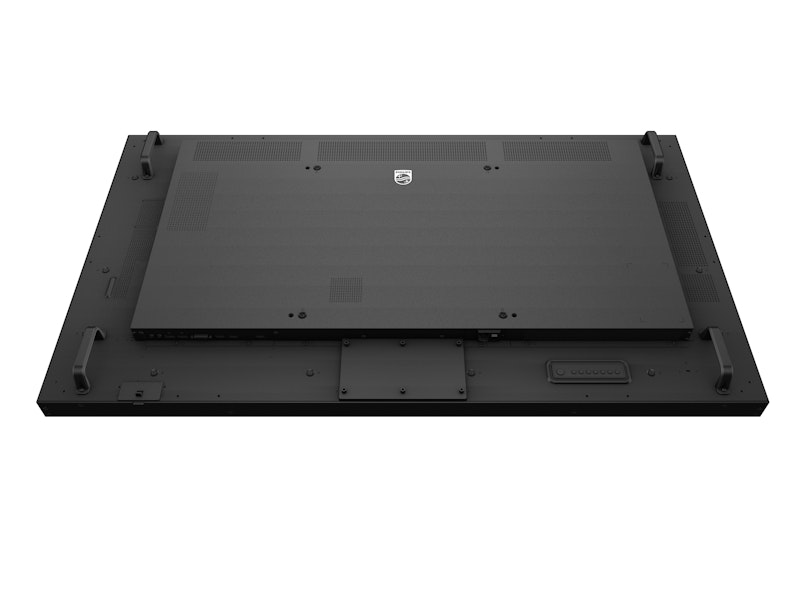

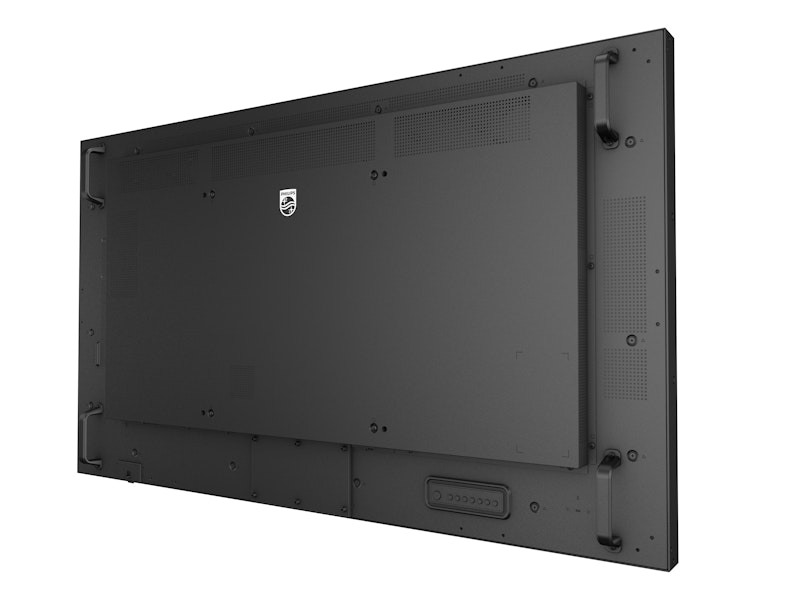

Wall Mount	400 x 400 mm, M6
Set Width (inch)	49.16
Smart insert height	100 mm
Smart Insert mount	100mm x 100mm pitch, 6xM4L6
Set Depth	85 mm
Set Height (inch)	28.32

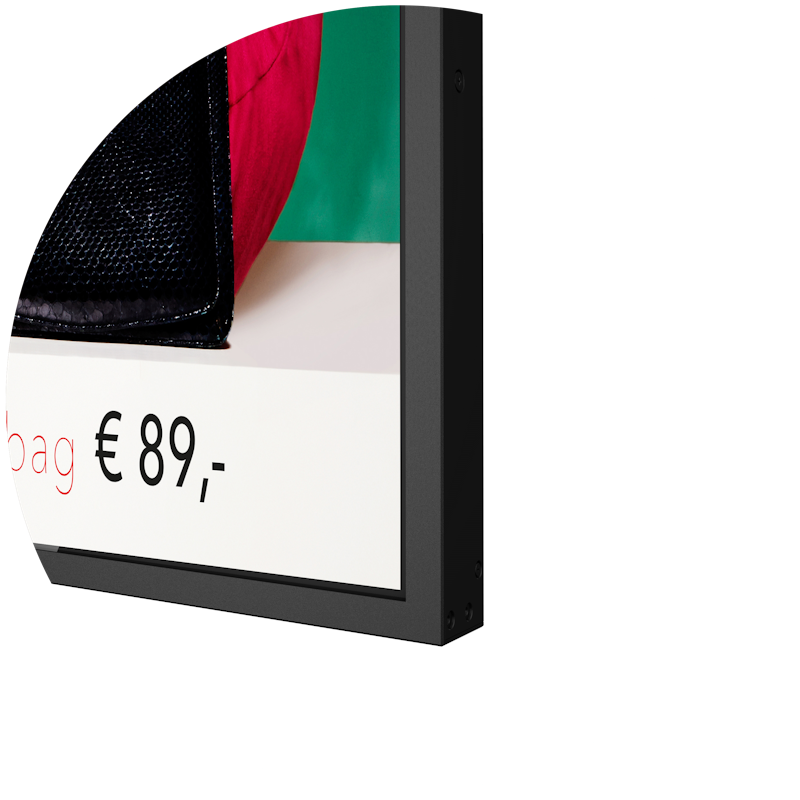

Bezel width	17.5 mm (even bezel)

Sound

Built-in speakers	2 x 10W RMS

Power

Standby power consumption	<0.5W
Consumption (Typical)	245 W
Mains power	100 ~ 240 VAC, 50 ~ 60 Hz
Consumption (Max)	430 W

Multimedia Applications

USB Playback Video	AVI
	MP4
	MPEG
	MPG
	TS
	VOB
	MPEG4
USB Playback Picture	BMP
	JPEG
	JPG
	PNG

Operating conditions

Altitude	0 ~ 3000 m
MTBF	50,000 hour(s)
Humidity range (storage) [RH]	5 ~ 95% RH (No condensation)
Humidity range (operation)[RH]	20 ~ 80% RH (No condensation)
Temperature range (storage)	-20 ~ 60 °C
Temperature range (operation)	0 ~ 40 °C

Miscellaneous

On-Screen Display Languages	Arabic
	Dutch
	English
	French
	German
	Italian
	Japanese
	Polish
	Portuguese
	Russian
	Spanish
	Simplified Chinese
	Turkish
	Traditional Chinese
Warranty	3 year warranty
Regulatory approvals	CE
	FCC, Class A
	UL/cUL
	CB

Picture/Display

Viewing angle (vertical)	178 degree
Contrast ratio (typical)	4000:1
Viewing angle (horizontal)	178 degree
Response time (typical)	8 ms
Optimum resolution	1920 x 1080 @ 60Hz
Aspect ratio	16:9
Diagonal screen size (inch)	54.6
Dynamic contrast ratio	500,000 : 1
Display colors	1.07 B
Panel resolution	1920x1080p
Diagonal screen size (metric)	138.7 cm
Pixel pitch	0.63 x 0.63 mm
Brightness	2500 cd/m²

Supported Display Resolution

Computer formats	640 x 480, 60, 72, 75Hz
	720 x 400, 70Hz
	800 x 600, 60, 75Hz
	1024 x 768, 60, 75Hz
	1280 x 768, 60Hz
	1280 x 800, 60Hz
	1280 x 960, 60Hz
	1280 x 1024, 60Hz
	1360 x 768, 60Hz
	1366 x 768, 60Hz
	1600 x 1200, 60Hz
	1920 x 1080, 60Hz
Video formats	720p, 50, 60Hz
	1080i, 25, 30Hz
	1080p, 50, 60Hz
