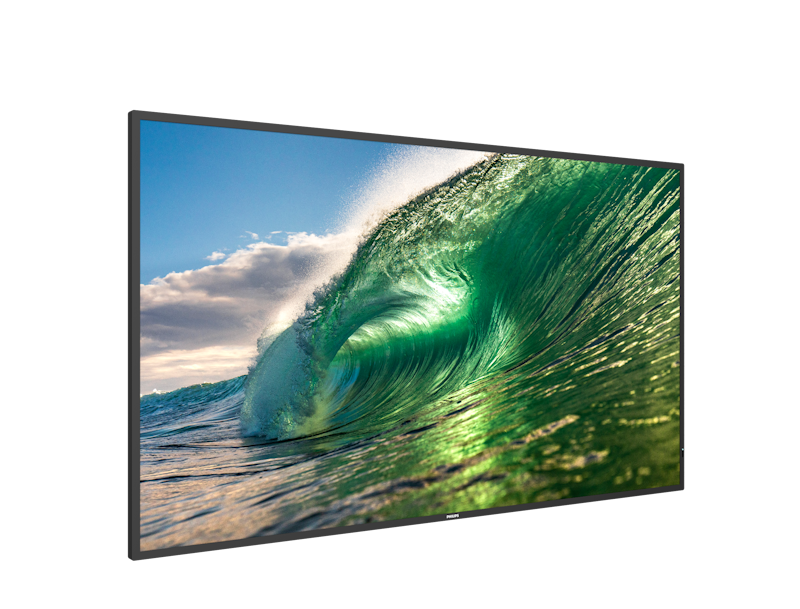

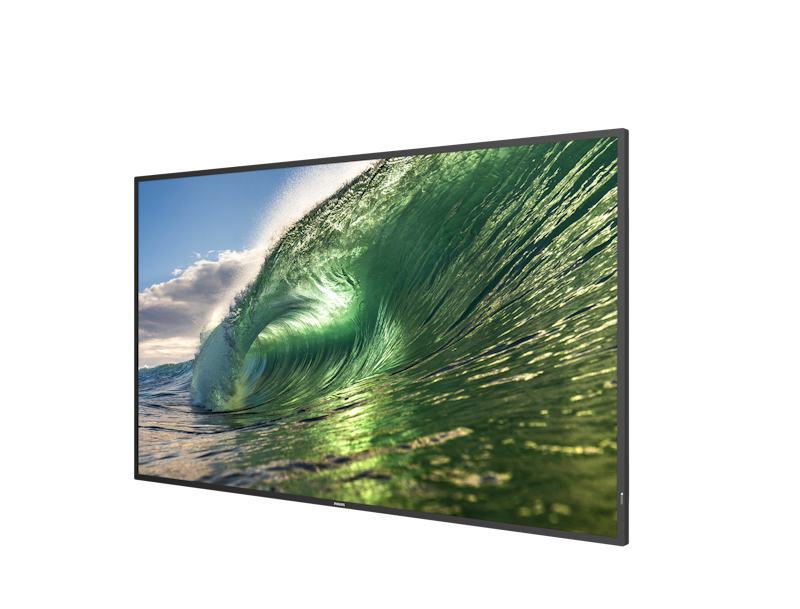

QE-Line

55BDL3650QE/00

Engage your audience with this environmentally conscious 4K Ultra HD digital display. Delivering uncompromised 4K UHD performance while running on half the power compared to other market models, with the very latest PPDS EcoDesign.

Get a quote

Technical Specifications

Connectivity

Other connections	micro SD
	OPS
Audio output	3.5mm jack
Video input	DVI-I (x 1)
	HDMI 2.0 (x2)
	USB 2.0 (x2)
	USB 3.0 (x2)
Audio input	3.5 mm jack
Optional WiFi functionality	CRD22 wifi dongle
External control	RJ45
	RS232C (in/out) 2.5 mm jack
	IR (in/out) 3.5 mm jack

Convenience

Energy saving functions	Smart Power
Remote control signal	Lockable
Tiled Matrix	Up to 15 x 15
Signal loop through	RS232
	IR Loopthrough
Keyboard control	Lockable
	Hidden
Placement	Landscape (18/7)
	Portrait (18/7)
Network controllable	RS232
	RJ45

Accessories

Included Accessories	IR sensor cable (1.8 m) (x1)
	RS232 daisy-chain cable
	Philips logo (x1)
	AC Power Cord
	AC Switch Cover
	Cable clip (x2)
	Quick start guide
	RS232 cable
	USB Cover (x1)

Dimensions

Set Height	712.6 mm
Set Width	1241.8 mm
Product weight	17.2 kg
Wall Mount	400mm x 400mm , M6
Product weight (lb)	37.92 lb
Set Depth (inch)	2.50
Set Width (inch)	48.89
Set Depth	63.6 mm
Set Height (inch)	28.06
Bezel width	13.9 mm (Even bezel)

Internal Player

GPU	G52 MC1
Memory	16GB
	3GB DDR
CPU	Dual core cortex A53 1.1G Hz
	Dual core cortex A73 1.15G Hz
	Quad Core Cortex A55

Sound

Built-in speakers	2 x 10W RMS

Power

Standby power consumption	<0.5 W
Power Saving Features	Smart Power
Consumption (Typical)	70 W
Mains power	100 ~ 240 VAC
Consumption (Max)	120 W
Energy Label Class	D

Multimedia Applications

USB Playback Video	H.264
	H.263
	H.265
	MPEG1/2
	MPEG4
	VP8
	VP9
USB Playback Picture	JPEG
	BMP
	PNG
USB Playback Audio	AAC
	HEAAC
	MPEG

Operating conditions

Altitude	0 ~ 3000 m
Humidity range (storage) [RH]	5 ~ 95% RH (No condensation)
MTBF	30,000 hour(s)
Humidity range (operation)[RH]	20 ~ 80% RH (No condensation)
Temperature range (storage)	-20 ~ 60 °C
Temperature range (operation)	0 ~ 40 °C

Miscellaneous

On-Screen Display Languages	English
	French
	German
	Italian
	Polish
	Turkish
	Russian
	Simplified Chinese
	Spanish
	Traditional Chinese
	Arabic
	Japanese
Warranty	3 year warranty
Regulatory approvals	CE
	CB
	BSMI
	FCC, Class A
	VCCI
	J-Moss
	ETL
	RoHS

Picture/Display

Picture enhancement	3/2 - 2/2 motion pull down
	Dynamic contrast enhancement
	Motion compens. deinterlacing
Viewing angle (vertical)	178 degree
Contrast ratio (typical)	1200:1
Response time (typical)	8 ms
Viewing angle (horizontal)	178 degree
Optimum resolution	3840 x 2160 @ 60 Hz
Aspect ratio	16:9
Diagonal screen size (inch)	54.6
Dynamic contrast ratio	500,000:1
Operating system	Android 10
Display colors	1.06 Billion
Panel resolution	3840 x 2160
Diagonal screen size (metric)	138.7 cm
Panel technology	IPS
Pixel pitch	0.315 x 0.315 mm
Brightness	350 cd/m²

Supported Display Resolution

Computer formats	1920 x 1080, 60Hz
	1600 x 1200, 60Hz
	1440 x 900, 60Hz
	1280 x 1024, 60Hz
	1280 x 720, 60Hz
	1280 x 800, 60Hz
	1024 x 768, 60, 70, 75Hz
	720 x 400, 70Hz
	640 x 480, 60, 67, 72, 75Hz
	1152 x 870, 75Hz
	1680 x 1050, 60Hz
	800 x 600, 56, 60, 72, 75Hz
	1152 x 864, 75Hz
	832 x 624, 75Hz
	3840 x 2160, 24,25,30,60Hz
Video formats	480i, 60Hz
	480p, 60Hz
	1080p, 50, 60Hz
	1080i, 50, 60Hz
	720p, 50,60 Hz
	3840 x 2160p,24,25,30,60Hz
