C-Line

75BDL6051C/00

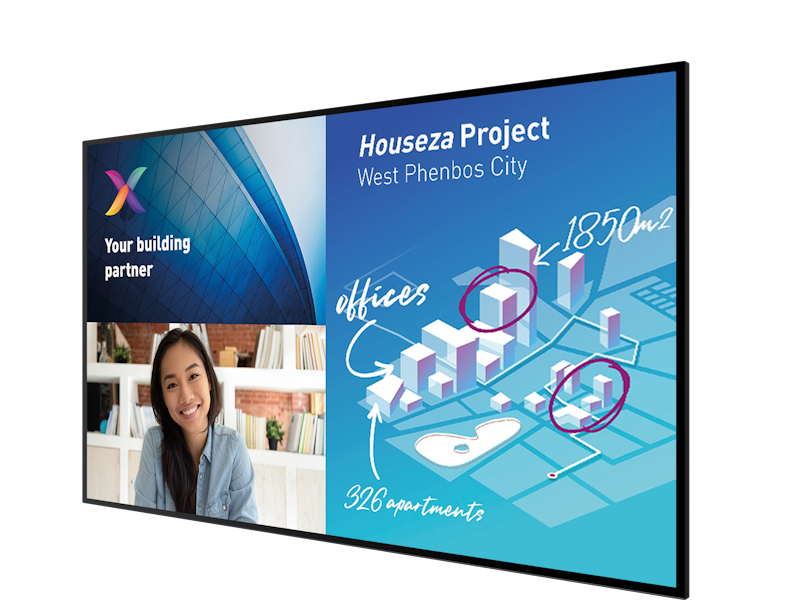

Maximise engagement and inspire collaboration with an interactive Philips C-Line display. These Android powered displays are made to withstand heavy daily usage, and feature up to 10 touchpoints, edge-to-edge glass and flush design.

Get a quote

Technical Specifications

Picture/Display

Diagonal screen size (inch)	74.5
Diagonal screen size (metric)	189.3
Panel resolution	3840 x 2160
Optimum resolution	3840x 2160 @ 60Hz
Brightness	350
Contrast ratio (typical)	1000:1
Dynamic contrast ratio	500,000:1
Aspect ratio	16:9
Response time (typical)	8
Pixel pitch	0.4935 (H) x 0.4935 (V)
Display colors	1.07 billion
Viewing angle (horizontal)	178
Viewing angle (vertical)	178
Picture enhancement	3/2 - 2/2 motion pull down
	Motion compens. deinterlacing
	3D MA deinterlacing
	Dynamic contrast enhancement
	Progressive scan
Operating system	Android 9

Connectivity

Video input	Display Port1.2 (x1)
	DVI-I (x 1)
	HDMI 2.0 (x4)
	USB-C
	USB 2.0 (x2)
	USB 3.0 (x2)
Video output	DisplayPort 1.2 (x1)
	HDMI 2.0 (x1)
Audio input	3.5 mm jack
Audio output	3.5mm Jack (x2)
Other connections	OPS
	micro SD
External control	RJ45
	RS232C (in/out) 2.5 mm jack
	IR (in/out) 3.5 mm jack

Supported Display Resolution

Computer formats	1920 x 1200, 60Hz
	1920 x 1080, 60Hz
	1680 x 1050, 60Hz
	1600 x 1200, 60Hz
	1600 x 900, 60Hz
	1440 x 1050, 60Hz
	1440 x 900, 60, 75Hz
	1400 x 1050 ,60, 75Hz
	1366 x 768, 60Hz
	1360 x 768, 60Hz
	1280x1024, 60,67,75Hz
	1280 x 960, 60Hz
	1280 x 800, 60,75Hz
	1280 x 768, 60Hz, 75Hz
	1280 x 720, 60,70Hz
	1152 x 900, 66Hz
	1152 x 864, 60, 70, 75Hz
	1024x768, 60,70Hz
	960x720, 75Hz
	848 x 480, 60Hz
	832 x 624, 75Hz
	800 x 600, 56, 60, 72, 75Hz
	720 x 400, 70Hz
	640 x 350, 70Hz
	640 x 480, 60, 67, 72, 75Hz
Video formats	1080p, 50, 60Hz
	576p, 50Hz
	480p, 60Hz
	1080i, 50, 60Hz
	4K x 2K, 50,60Hz
	720p, 50, 60Hz
UHD Formats	3840 x 2160, 24, 25, 30, 60 Hz
	3840 x 2160, 50 Hz

Dimensions

Set Width	1703.80
Set Height	982.00
Set Depth	84.20(@wall mount), 99.70(@max)
Set Width (inch)	67.08
Set Height (inch)	38.66
Set Depth (inch)	3.31(@wall mount), 3.93(@max)
Bezel width	1.50 mm(even)
Product weight (lb)	143.52
Product weight	65.1
Wall Mount	600(H)x400(V) mm, M8
Smart Insert mount	6M4L6(200x100)

Convenience

Placement	Landscape
	Landscape (18/7)
	Portrait (12/7)
Keyboard control	Hidden
	Lockable
Signal loop through	RS232
	IR Loopthrough
	DisplayPort
Network controllable	RJ45
	RS232
Energy saving functions	Smart Power
Screen saving functions	Pixel Shift, Low Bright
Ease of installation	Smart Insert
DPMS power saving system	Yes

Power

Standby power consumption	<0.5 W
Mains power	100 ~ 240 VAC, 50 ~ 60 Hz
Consumption (Typical)	240
Consumption (Max)	340 W
Energy Label Class	G

Operating conditions

Temperature range (operation)	0 ~ 40
Temperature range (storage)	-20 ~ 60
Relative humidity	20 ~ 80
Altitude	0 ~ 3000 m
MTBF	50,000

Sound

Built-in speakers	2 x 20W RMS

Accessories

Included Accessories	Philips logo (x1)
	RS232 Daisy chain cable (x1)
	AAA batteries (x1)
	Cleaning cloth (x1)
	DVI - I Cable (1.8m) (x1)
	HDMI Cable (3m) (x1)
	IR sensor cable (1.8 m) (x1)
	M2 Screw (x2)
	M3 screw (x2)
	Power cable (x3)
	Quick start guide (x1)
	Remote control (x1)
	RS232 cable (3 m) (x1)
	Touch Pen (x2)
	USB A to B cable (3m) (x1)
	USB Cover (x1)

Multimedia Applications

USB Playback Audio	AAC
	M4A
	MP3
	WMA
USB Playback Picture	BMP
	JPEG
	JPG
	PNG
USB Playback Video	ASF
	AVI
	FLV
	MKV
	MP4
	MPEG
	MPG
	TS
	VOB
	WEBM
	WMV
	DAT

Miscellaneous

On-Screen Display Languages	English
	French
	German
	Spanish
	Polish
	Turkish
	Russian
	Italian
	Simplified Chinese
	Traditional Chinese
	Arabic
	Japanese
	Danish
	Dutch
	Finnish
	Norwegian
	Portuguese
	Swedish
Regulatory approvals	CE
	RoHS
	CB
	VCCI
	CU
	EAC
	EMF
	ETL
	FCC, Class A
	PSB
Warranty	3 year warranty
