Philips X-Line

55BDL2105X/27

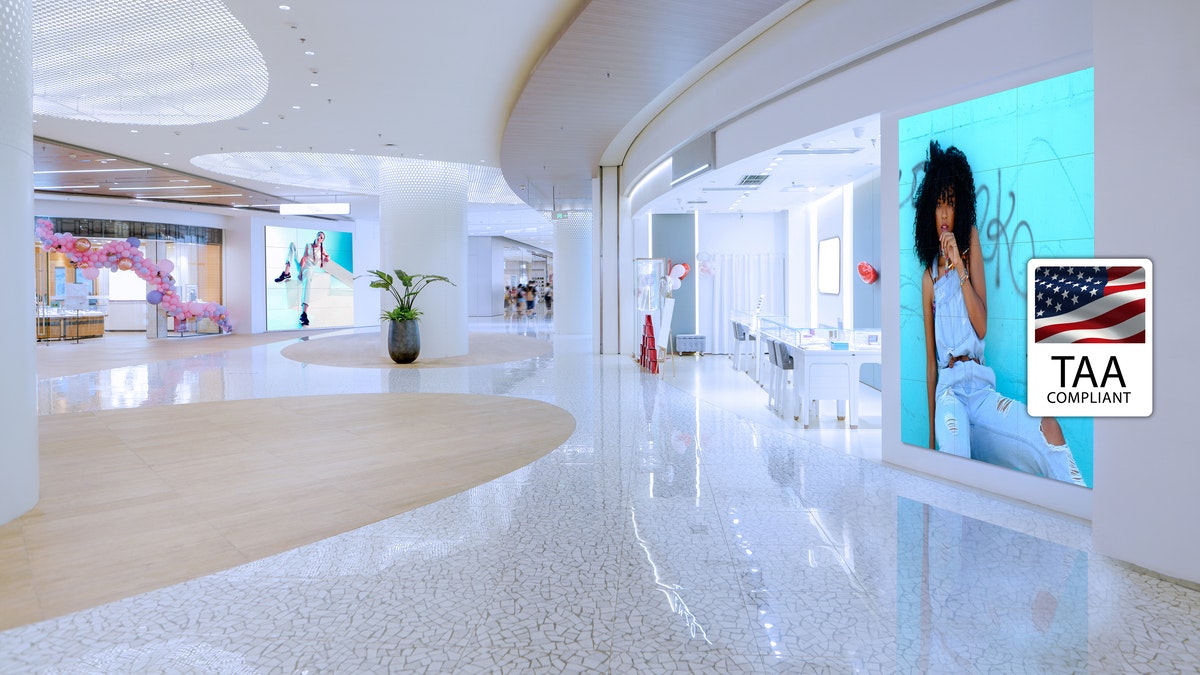

Designed for 24/7 operation, the Philips X-Line Videowall display captivates customer attention with its immersive moving content. CMND makes managing your promotions and retail content easy, whilst FailOver adds greater peace of mind.

Get a quote

TAA compliant

Created in 1979, TAA compliance requires products and goods considered for governmental use to be manufactured or substantially transformed in the US or in designated TAA countries*. Products for government use are available via selected commercial companies – such as distributors – with Federal Supply Schedule government contracts.

Technical Specifications

Connectivity

Audio output	3.5 mm Mini Jack (x1)
Other connections	OPS
	USB 2.0 (x1)
	Thermal sensor
Video input	Display Port1.2 (x1)
	DVI-D (x1)
	HDMI 2.0 (x2)
	VGA (Analog D-Sub) (x1)
Audio input	3.5 mm mini jack (x1)
External control	IR (in) 3.5 mm jack
	LAN RJ45 (x2)
Video output	DisplayPort 1.2 (x1)

Convenience

Screen saving functions	Pixel Shift, Low Bright
Tiled Matrix	Up to 15 x 15
Energy saving functions	Smart Power
Ease of installation	Carrying Handles
	Smart Insert
Signal loop through	DisplayPort
	RJ45
Placement	Landscape (24/7)
	Portrait (24/7)
Network controllable	LAN (RJ45)

Accessories

Included Accessories	Gap pad x3
	IR sensor cable (1.8 m) (x1)
	Quick start guide (x1)
	Remote control & AAA batteries
	RJ45 / RS232 converter
	Wire Clamper (x3)
	Power cord
	DP cable (x1)
	RJ45 cable (x1)
	Edge alignment pin (x2)
	Kit-1 (x1)
	Kit-2 (x2)

Dimensions

Set Width	1213.5 mm
Product weight	28.8 kg
Set Height	684.3 mm
Wall Mount	400mm x 400mm, M6
Set Depth (inch)	3.85 (D@WallMount)/3.85 (D@Handle) inch
Smart Insert mount	100mm x 100mm, 6xM4xL6
Bezel width	2.3 mm + 1.2 mm
Set Height (inch)	26.94 inch
Set Depth	97.8 mm(D@WallMount)/97.8 mm(D@Handle) mm
Set Width (inch)	47.77 inch

Sound

Built-in speakers	2 x 10W (RMS)

Power

Consumption (On mode)	140 W
Standby power consumption	0.5 W
Consumption (Max)	340 W
Consumption (Typical)	180 W
Energy Label Class	G

Operating conditions

MTBF	50,000 hour(s)
Humidity range (operation)[RH]	20 - 80% (without condensation)
Altitude	0 ~ 3000 m
Humidity range (storage) [RH]	5 - 95% (without condensation)
Temperature range (storage)	-20 ~ 60 °C
Temperature range (operation)	0 ~ 40 °C

Miscellaneous

On-Screen Display Languages	Arabic
	English
	French
	German
	Italian
	Japanese
	Polish
	Russian
	Spanish
	Simplified Chinese
	Turkish
	Traditional Chinese
Warranty	3 years warranty
Regulatory approvals	CE
	FCC, Class A
	RoHS
	CB
	ETL
	BSMI

Picture/Display

Viewing angle (vertical)	178 degree
Response time (typical)	8 ms
Viewing angle (horizontal)	178 degree
Contrast ratio (typical)	1200:1
Optimum resolution	1920 x 1080 @ 60 Hz
Haze	25 %
Diagonal screen size (inch)	54.5 inch
Dynamic contrast ratio	500,000:1
Aspect ratio	16:9
Diagonal screen size (metric)	138.7 cm
Display colors	16.7 M
Panel resolution	1920x1080p
Pixel pitch	0.63 x 0.63 mm
Brightness	500 cd/m²

Supported Display Resolution

Computer formats	720 x 400, 70Hz
	800 x 600, 60, 75Hz
	1024 x 768, 60, 75Hz
	1280 x 768, 60Hz
	1280 x 800, 60Hz
	1280 x 960, 60Hz
	1280 x 1024, 60Hz
	1360 x 768, 60Hz
	1366 x 768, 60Hz
	1600 x 1200, 60Hz
	1920 x 1080, 60Hz
	640 x 480, 60, 72, 75Hz
Video formats	720p, 50, 60Hz
	1080i, 25, 30Hz
	1080p, 50, 60Hz
	2160P 50, 60Hz ((HDMI/OPS/DP)
