Tableaux

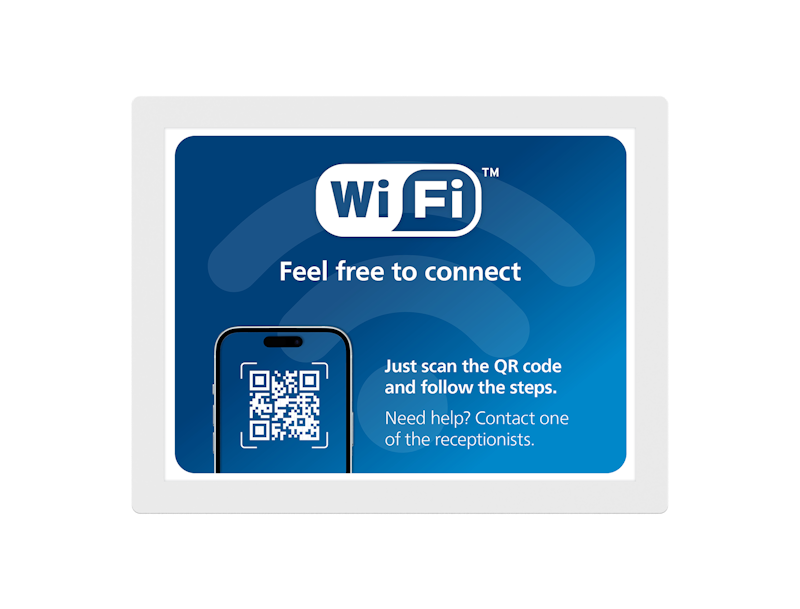

13BDL4150IW/00

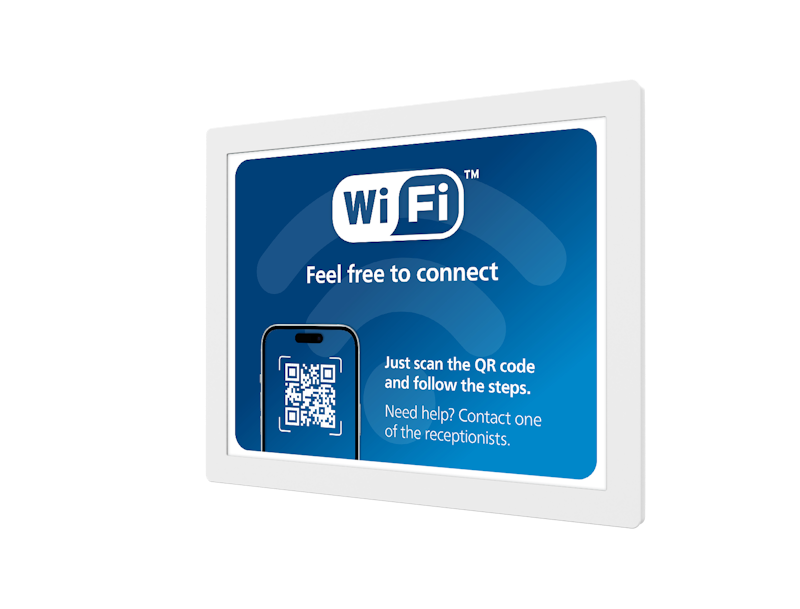

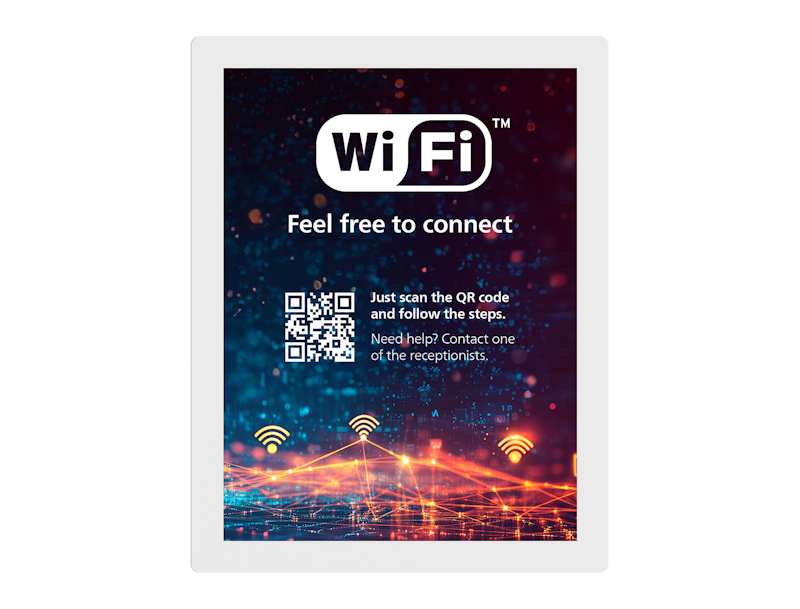

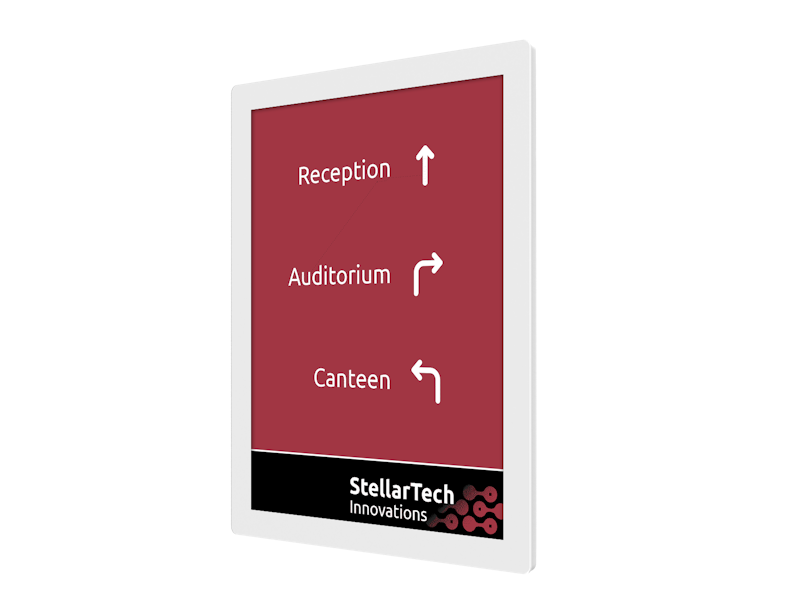

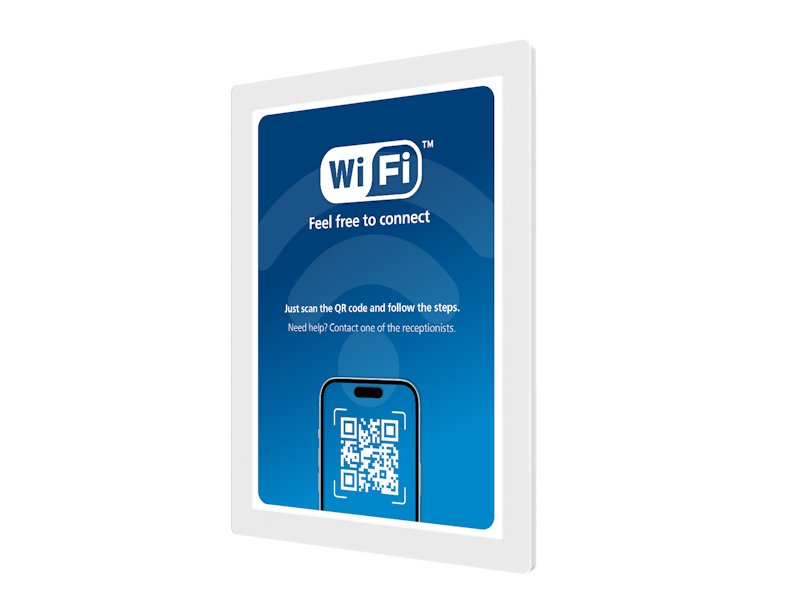

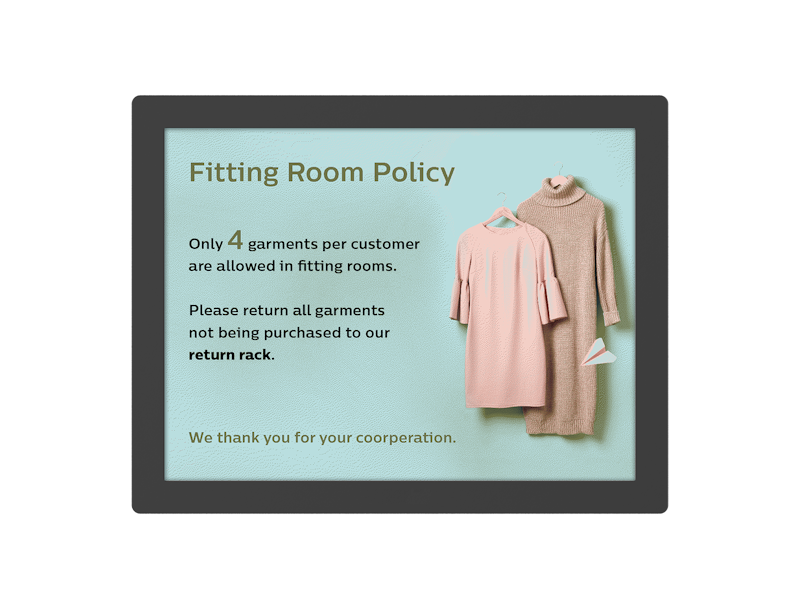

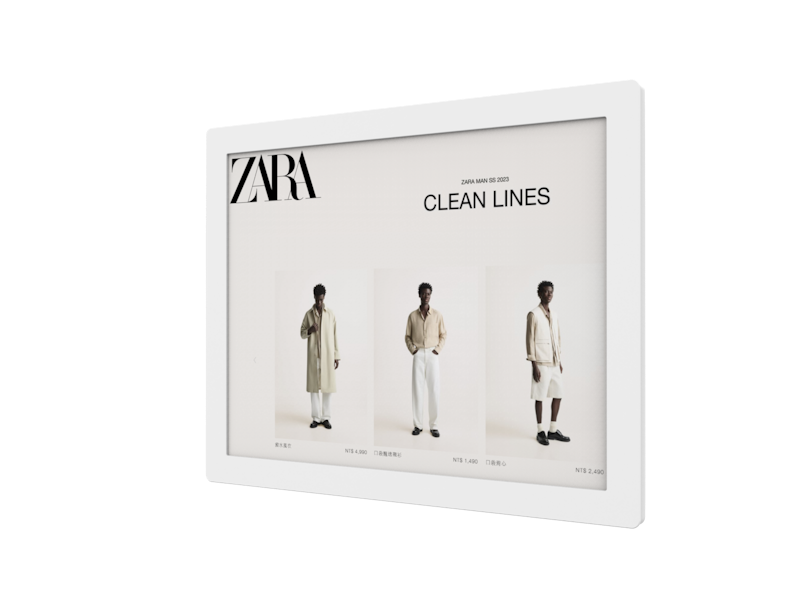

Whether for room bookings or product info, extend your vision to include this power- and paper-free ePaper signage. Digitise paper posters or swap out digital models showing static content with ultra-clear, easily updatable ePaper displays.

Get a quote

Technical Specifications

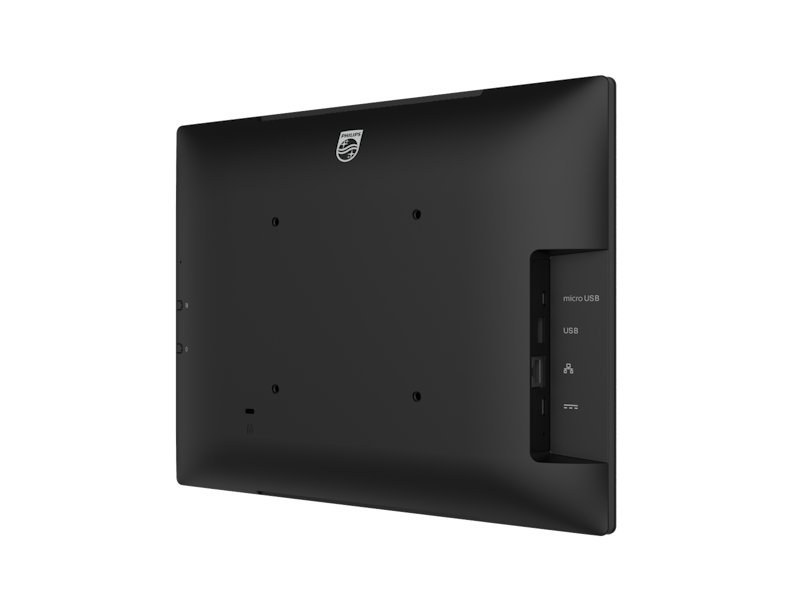

Connectivity

Audio output	Audio Left/Right (3.5 mm jack)
Video input	USB
Other connections	micro USB

Convenience

Placement	Landscape (24/7)
	Portrait (24/7)
Network controllable	LAN (RJ45)

Accessories

Included Accessories	AC power adapter
	Quick start guide (x 1)

Dimensions

Set Height	238.8 mm
Wall Mount	100 x 100 mm VESA mount
Set Width	306.4 mm
Set Depth	31.66 mm
Bezel width	18.5 mm
Product weight	1.3 kg

Internal Player

Storage	16 GB EMMC
Memory	2 GB DDR4
CPU	Rockchip PX30S

Power

Mains power	20 V/2.25 A adapter

Communication

Wi-Fi/ WLAN	2Tx/2Rx 802.11 ac/a/b/g/n Wi-Fi + BT 5.1 Module
Ethernet	10 M/100 M

Operating conditions

Temperature range (storage)	-20 ~ 60 °C
Temperature range (operation)	15~ 35 °C
Altitude	0 ~ 3000 m
Relative humidity	20% ~ 80 %

Miscellaneous

On-Screen Display Languages	English
	Simplified Chinese
Regulatory approvals	CE
	CB
	UL
	FCC
Warranty	3 year warranty

Picture/Display

Panel resolution	1600 x 1200
Display colours	60K
Aspect ratio	16:9
Diagonal screen size (inch)	13.3 inch
Operating system	Android 11
