Technical Specifications
Connectivity
| Audio output | Audio Left/Right (3.5 mm jack) |
|---|---|
| Video input | USB |
| Other connections | micro USB |
Convenience

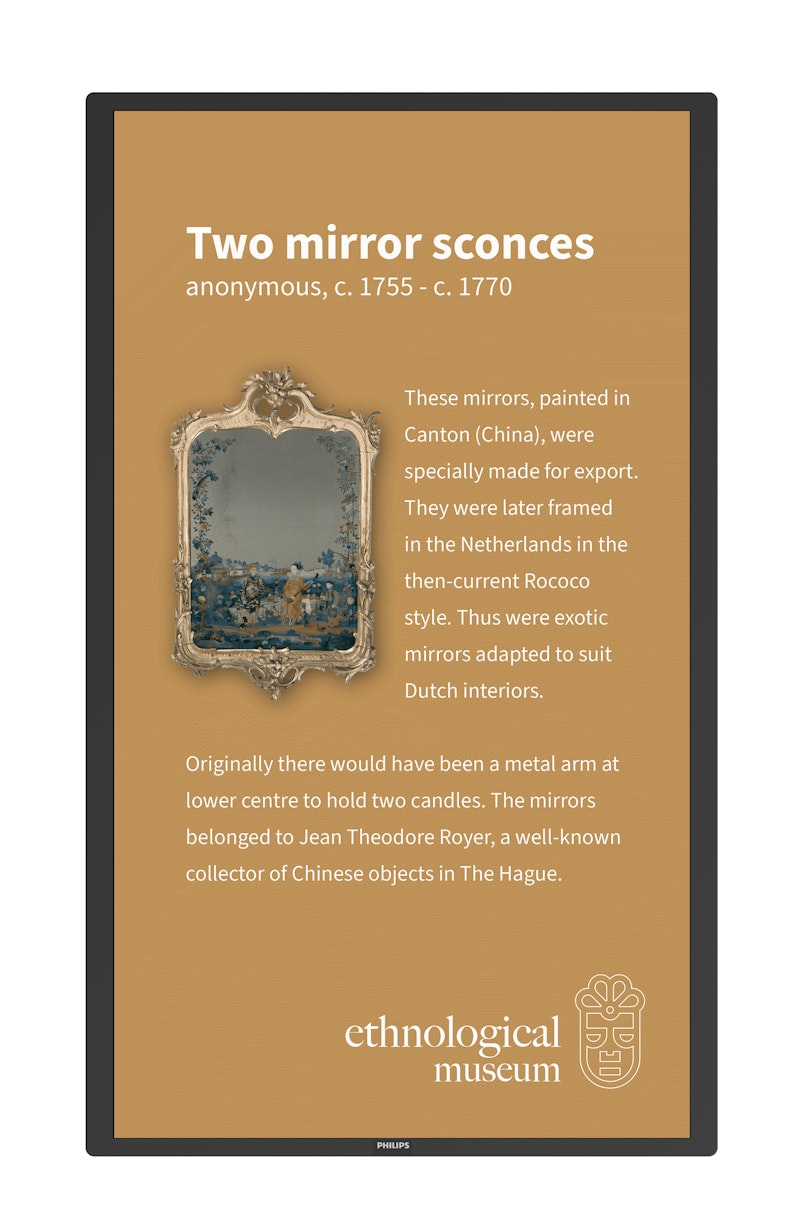

| Placement | Landscape (24/7) |
|---|---|

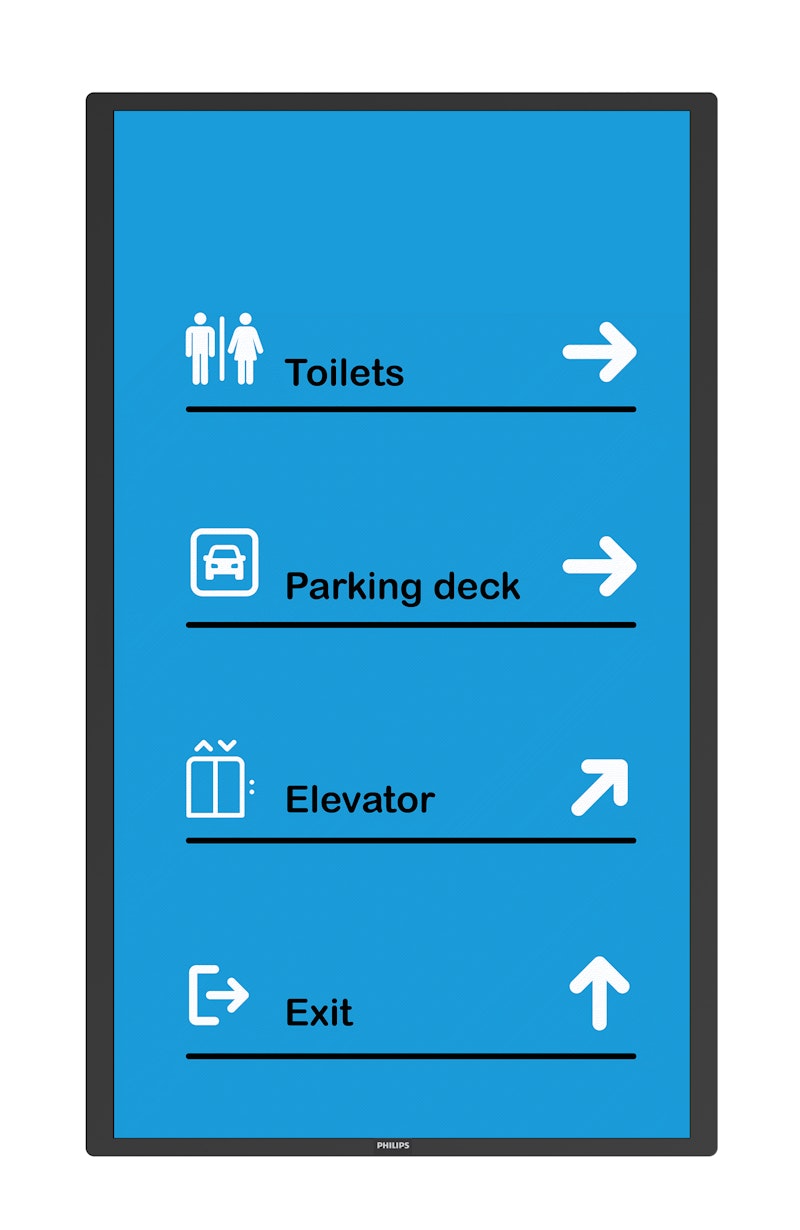

| Portrait (24/7) | |
| Network controllable | LAN (RJ45) |
| Battery bay | 4 pcs 18650 batteries (>2600 mAh) not included |
Accessories
| Included Accessories | AC power adapter |
|---|---|
| Quick start guide (x 1) |
Internal Player
| Storage | 16 GB EMMC |
|---|---|
| Memory | 2 GB DDR4 |
| CPU | Rockchip RK3566 |
Dimensions
| Set Height | 426.9 mm |
|---|---|

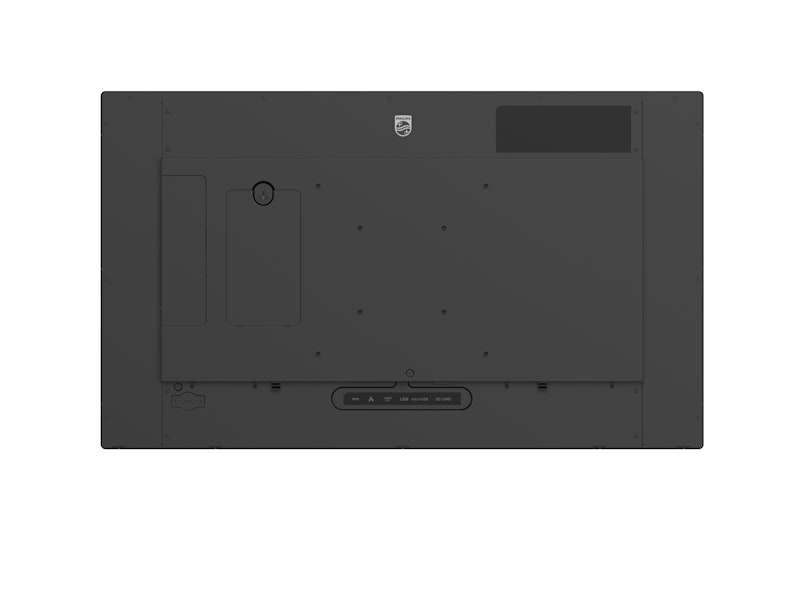

| Wall Mount | 100 x 100 mm, 200 x 200 mm VESA mount |
| Set Width | 718.7 mm |

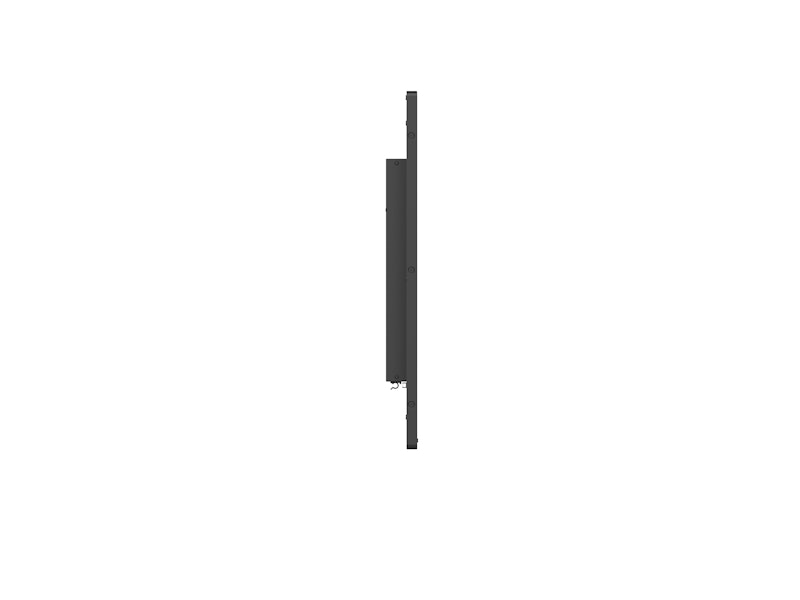

| Set Depth | 37.5 mm |
| Product weight | 3.5 kg |
| Bezel width | 18.6/18.6/12.2/12.2 mm |
Power
| Mains power | 20 V/2.25 A adapter, PoE++, IEEE 802.3bt (Type 3) |
|---|
Communication
| Wi-Fi/ WLAN | 2Tx/2Rx 802.11 ac/a/b/g/n Wi-Fi + BT 5.1 Module |
|---|---|
| Ethernet | 10 M/100 M |
Picture/Display
| Panel resolution | 2560 x 1440 |
|---|---|
| Display colours | 65K |
| Aspect ratio | 16:9 |
| Diagonal screen size (inch) | 31.5 inch |
| Operating system | Android 13 |
Miscellaneous
| On-Screen Display Languages | English |
|---|---|
| Simplified Chinese | |
| Regulatory approvals | CE |
| CB | |
| UL | |
| FCC | |
| Warranty | 3 year warranty |
Operating conditions
| Temperature range (storage) | -20 ~ 60 °C |
|---|---|
| Temperature range (operation) | 0~ 50 °C |
| Relative humidity | 20% ~ 80 % |
| Altitude | 0 ~ 3000 m |
