Q-Line

55BDL3550Q/00

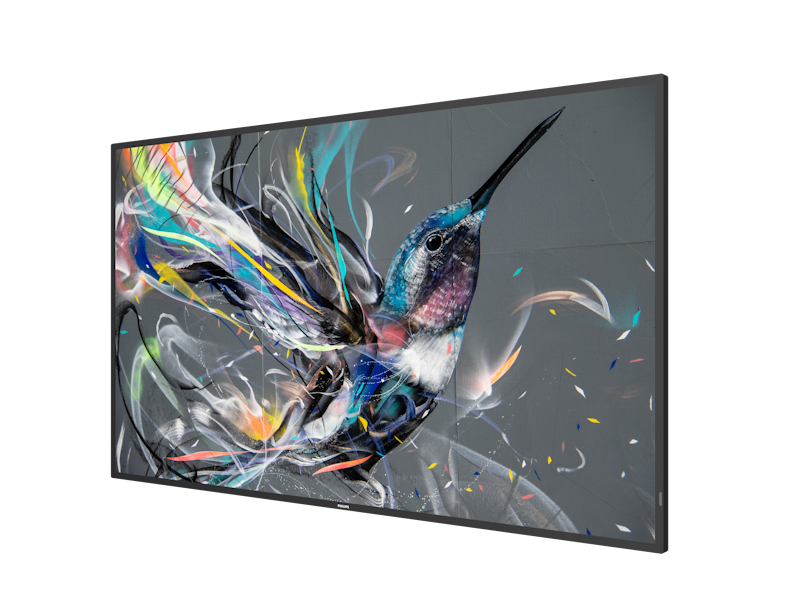

Inform and enthral with a Philips Q-Line Professional 4K Ultra HD Display. This reliable solution can be up and running as quickly as you need.

Get a quote

CMND & Control

Run your display network over a local (LAN or RF) connection. CMND & Control allows you to perform vital functions like updating software and settings, as well as monitoring display status. Whether you’re in charge of one display or more, CMND & Control makes managing your fleet easy.

CMND & Create

Take control of your content with CMND and Create. A drag-and-drop interface makes it simple to publish your own content, whether it's a daily specials board or branded corporate information. Preloaded templates and integrated widgets ensure that your stills, text and video will be up and running in no time.

FailOver

From waiting room to meeting room, never show a blank screen. FailOver lets your Philips professional display switch automatically between primary and secondary inputs, ensuring that content keeps playing even if the primary source goes down. Simply set a list of alternative inputs to be sure your business is always on.

Powered by Android

With Android on your professional display you'll enjoy a faster, richer and guest-friendly interface. It's your launch control to a wealth of dedicated hospitality services, applications and so much more. There's an easy-to-navigate menu with direct links to your favourite apps.

Discover Android

Integrated Media Player

Easily schedule content to play from USB or internal memory. Your Philips professional display will wake from standby to play the content you want, and then return to standby once playback has finished.

Integrated HTML5 browser

Connect and control your content over the internet with the integrated HTML5 browser. Using the Chromium-based browser, design your content online and connect a single display or your complete network. Show content in both landscape and portrait mode, with full-HD resolution. Streaming content can also be shown in a PIP (picture-in-picture) window. Simply connect the display to the internet using WiFi or with an RJ45 cable, and enjoy your own created playlist

CMND & Control

Run your display network over a local (LAN or RF) connection. CMND & Control allows you to perform vital functions like updating software and settings, as well as monitoring display status. Whether you’re in charge of one display or more, CMND & Control makes managing your fleet easy.

CMND & Create

Take control of your content with CMND and Create. A drag-and-drop interface makes it simple to publish your own content, whether it's a daily specials board or branded corporate information. Preloaded templates and integrated widgets ensure that your stills, text and video will be up and running in no time.

FailOver

From waiting room to meeting room, never show a blank screen. FailOver lets your Philips professional display switch automatically between primary and secondary inputs, ensuring that content keeps playing even if the primary source goes down. Simply set a list of alternative inputs to be sure your business is always on.

Powered by Android

With Android on your professional display you'll enjoy a faster, richer and guest-friendly interface. It's your launch control to a wealth of dedicated hospitality services, applications and so much more. There's an easy-to-navigate menu with direct links to your favourite apps.

Discover Android

Integrated Media Player

Easily schedule content to play from USB or internal memory. Your Philips professional display will wake from standby to play the content you want, and then return to standby once playback has finished.

Integrated HTML5 browser

Connect and control your content over the internet with the integrated HTML5 browser. Using the Chromium-based browser, design your content online and connect a single display or your complete network. Show content in both landscape and portrait mode, with full-HD resolution. Streaming content can also be shown in a PIP (picture-in-picture) window. Simply connect the display to the internet using WiFi or with an RJ45 cable, and enjoy your own created playlist

Ultimate attention

Q-Line makes your content the focal point in any space.

Technical Specifications

Picture/Display

Diagonal screen size (metric)	138.7
Diagonal screen size (inch)	54.6
Panel resolution	3840 x 2160
Optimum resolution	3840 x 2160 @ 60 Hz
Brightness	400
Contrast ratio (typical)	1300:1
Dynamic contrast ratio	500,000:1
Response time (typical)	9
Aspect ratio	16:9
Viewing angle (horizontal)	178
Viewing angle (vertical)	178
Pixel pitch	0.315 x 0.315 mm
Display colours	1.07 Billion
Clinical image	D-Image preset (dicom part 14 compatible)
Operating system	Android 8.0
Panel technology	IPS
Picture enhancement	3/2 - 2/2 motion pull down
	3D Combfilter
	3D MA deinterlacing
	Dynamic contrast enhancement
	Motion compens. deinterlacing
	Progressive scan

Supported Display Resolution

Computer formats	1920 x 1080, 60 Hz
	1600 x 1200, 60 Hz
	1440 x 900, 60 Hz
	1280 x 1024, 60 Hz
	1280 x 720, 60 Hz
	1280 x 800, 60 Hz
	1024 x 768, 60, 70, 75 Hz
	720 x 400, 70 Hz
	640 x 480, 60, 67, 72, 75 Hz
	1152 x 870, 75 Hz
	1680 x 1050, 60 Hz
	800 x 600, 56, 60, 72, 75 Hz
	1152 x 864, 75 Hz
	832 x 624, 75 Hz
Video formats	3840 x 2160, 60 Hz
	3840 x 2160, 30Hz
	480i, 60 Hz
	480p, 60 Hz
	576i, 50 Hz
	576p, 50 Hz
	1080p, 50, 60 Hz
	1080i, 50, 60 Hz
	720p, 50,60 Hz

Connectivity

Video input	DVI-D (x 1)
	HDMI 2.0 (x 2)
	USB 2.0 (x 2)
	VGA (Analogue D-Sub) (x 1)
Audio input	3.5 mm jack
Audio output	3.5 mm jack
External control	RJ45
	RS232C (in/out) 2.5 mm jack
	IR (in/out) 3.5 mm jack

Convenience

Energy-saving functions	Smart Power
Tiled Matrix	Up to 15 x 15
Start-up	Switch on delay
	Switch on status
	Boot on source
Start-up window	enable/disable Philips logo
Keyboard control	Lockable
	Hidden
Network controllable	RS232
	RJ45
Signal loop through	RS232
	IR Loop through
Placement	Landscape (18/7)
	Portrait (18/7)
Remote control signal	Lockable

Dimensions

Bezel width	13.9 mm (Even bezel)
Set Width	1241.8
Set Height	712.6
Set Depth	63.6
Set Width (inch)	48.89
Set Height (inch)	28.06
Set Depth (inch)	2.50
Wall Mount	400 mm x 400 mm, M6
Product weight	16.6
Product weight (lb)	36.60

Operating conditions

Temperature range (operation)	0 ~ 40
Temperature range (storage)	-20 ~ 60
MTBF	30,000
Humidity range (operation)[RH]	20~80% RH (No condensation)
Humidity range (storage) [RH]	5~95% RH (No condensation)
Altitude	0 ~ 3000 m

Power

Mains power	100 ~ 240 VAC
Standby power consumption	<0.5 W
Consumption (Max)	175 W
Consumption (Typical)	125
Power Saving Features	Smart Power
Energy Label Class	G

Sound

Built-in speakers	2 x 10 W RMS

Multimedia Applications

USB Playback Video	MPEG
	H.264
	H.263
	H.265
USB Playback Picture	JPEG
	BMP
	PNG
USB Playback Audio	AAC
	HEAAC
	MPEG

Accessories

Included accessories	AC Power Cord
	RS232 cable
	Remote Control
	Batteries for remote control
	Quick start guide
Included Accessories	IR sensor cable (1.8 m) (x 1)
	RS232 daisy-chain cable
	Philips logo (x 1)
	USB Cover and screw (x 2)
Stand	BM05922(optional)

Miscellaneous

Warranty	3 year warranty
On-Screen Display Languages	English
	French
	German
	Italian
	Polish
	Turkish
	Russian
	Simplified Chinese
	Spanish
	Traditional Chinese
	Arabic
	Japanese
Regulatory approvals	CE
	CB
	BSMI
	CU
	EPA
	ETL
	FCC, Class A
	PSB
	VCCI
	J-Moss
