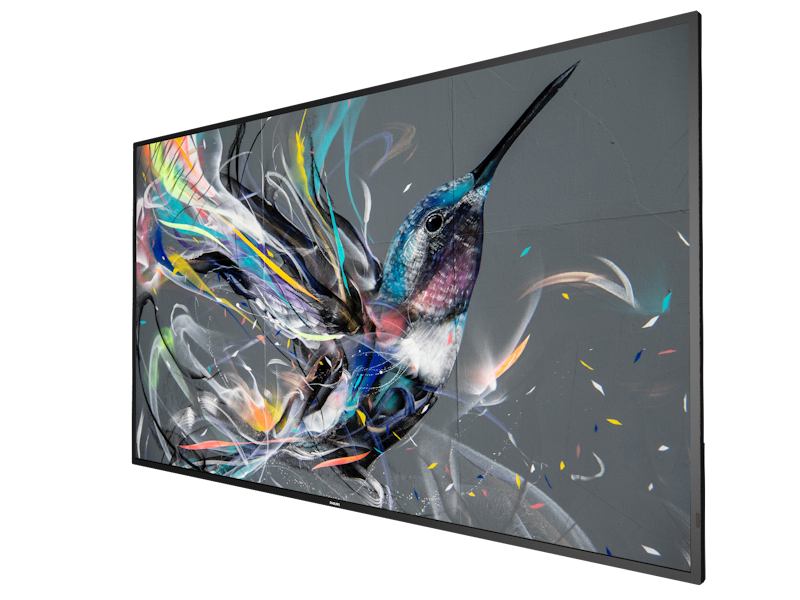

Q-Line

65BDL3550Q/00

Inform and enthral with a Philips Q-Line Professional Ultra HD Display. This reliable solution can be up and running as quickly as you need.

Get a quote

CMND & Control

Run your display network over a local (LAN or RF) connection. CMND & Control allows you to perform vital functions like updating software and settings, as well as monitoring display status. Whether you’re in charge of one display or more, CMND & Control makes managing your fleet easy.

CMND & Create

Take control of your content with CMND and Create. A drag-and-drop interface makes it simple to publish your own content, whether it's a daily specials board or branded corporate information. Preloaded templates and integrated widgets ensure that your stills, text and video will be up and running in no time.

Integrated Media Player

Easily schedule content to play from USB or internal memory. Your Philips professional display will wake from standby to play the content you want, and then return to standby once playback has finished.

Integrated HTML5 browser

Connect and control your content over the internet with the integrated HTML5 browser. Using the Chromium-based browser, design your content online and connect a single display or your complete network. Show content in both landscape and portrait mode, with full-HD resolution. Streaming content can also be shown in a PIP (picture-in-picture) window. Simply connect the display to the internet using WiFi or with an RJ45 cable, and enjoy your own created playlist

FailOver

From waiting room to meeting room, never show a blank screen. FailOver lets your Philips professional display switch automatically between primary and secondary inputs, ensuring that content keeps playing even if the primary source goes down. Simply set a list of alternative inputs to be sure your business is always on.

Powered by Android

With Android on your professional display you'll enjoy a faster, richer and guest-friendly interface. It's your launch control to a wealth of dedicated hospitality services, applications and so much more. There's an easy-to-navigate menu with direct links to your favourite apps.

Discover Android

CMND & Control

Run your display network over a local (LAN or RF) connection. CMND & Control allows you to perform vital functions like updating software and settings, as well as monitoring display status. Whether you’re in charge of one display or more, CMND & Control makes managing your fleet easy.

CMND & Create

Take control of your content with CMND and Create. A drag-and-drop interface makes it simple to publish your own content, whether it's a daily specials board or branded corporate information. Preloaded templates and integrated widgets ensure that your stills, text and video will be up and running in no time.

Integrated Media Player

Easily schedule content to play from USB or internal memory. Your Philips professional display will wake from standby to play the content you want, and then return to standby once playback has finished.

Integrated HTML5 browser

Connect and control your content over the internet with the integrated HTML5 browser. Using the Chromium-based browser, design your content online and connect a single display or your complete network. Show content in both landscape and portrait mode, with full-HD resolution. Streaming content can also be shown in a PIP (picture-in-picture) window. Simply connect the display to the internet using WiFi or with an RJ45 cable, and enjoy your own created playlist

FailOver

From waiting room to meeting room, never show a blank screen. FailOver lets your Philips professional display switch automatically between primary and secondary inputs, ensuring that content keeps playing even if the primary source goes down. Simply set a list of alternative inputs to be sure your business is always on.

Powered by Android

With Android on your professional display you'll enjoy a faster, richer and guest-friendly interface. It's your launch control to a wealth of dedicated hospitality services, applications and so much more. There's an easy-to-navigate menu with direct links to your favourite apps.

Discover Android

Ultimate attention

Q-Line makes your content the focal point in any space.

Technical Specifications

Connectivity

Audio output	3.5 mm jack
Video input	DVI-D (x 1)
	HDMI 2.0 (x 3)
	USB 2.0 (x 2)
	VGA (Analogue D-Sub) (x 1)
External control	RS232C (in/out) 2.5 mm jack
	IR (in/out) 3.5 mm jack
	RJ45
Audio input	3.5 mm jack

Convenience

Ease of installation	Smart Insert
Remote control signal	Lockable
Start-up window	enable/disable Philips logo
Energy-saving functions	Smart Power
Placement	Landscape (18/7)
	Portrait (18/7)
Tiled Matrix	Up to 15 x 15
Network controllable	RS232
	RJ45
Signal loop through	RS232
	IR Loop through
Start-up	Switch on delay
	Switch on status
	Boot on source
Keyboard control	Hidden
	Lockable

Accessories

Included Accessories	IR sensor cable (1.8 m) (x 1)
	RS232 daisy-chain cable
	M3 screw (x 2)
	Philips logo (x 1)
	USB Cover (x 1)
Included accessories	AC Power Cord
	RS232 cable
	Remote Control
	Batteries for remote control
	Quick start guide

Internal Player

Memory	2 GB DDR3
	8 GB
GPU	ARM Mali G51
CPU	Dual core cortex A53 1.1 GHz
	Dual core cortex A73 1.15 GHz

Dimensions

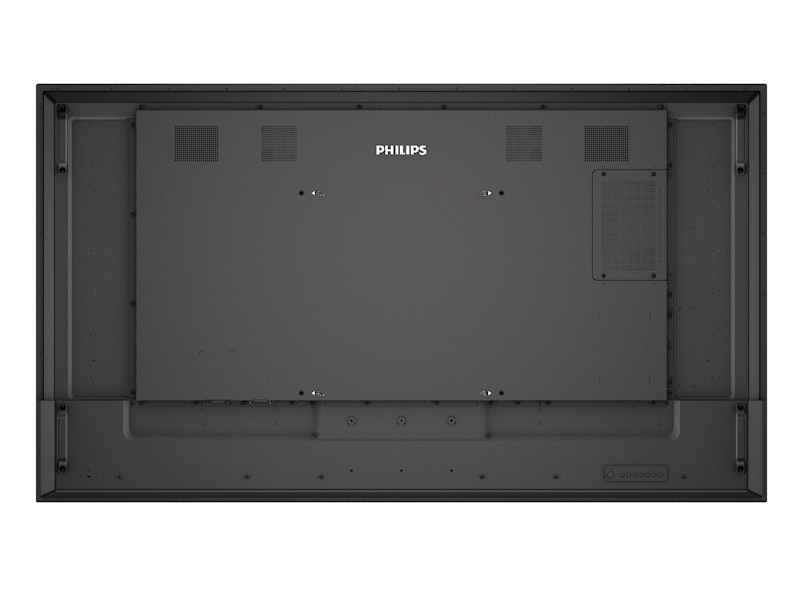

Wall Mount	400 x 400 mm, M8
Set Height	837.3 mm
Set Width	1462.3 mm
Set Depth	68.9 mm(D@wall mount)/89.9 mm(D@handle) mm
Set Width (inch)	57.57 inch
Product weight (lb)	61.29 lb
Set Depth (inch)	2.71(@ wall mount)/3.54(@ handle) inch
Set Height (inch)	32.96 inch
Bezel width	14.9 mm (Even bezel)
Product weight	27.80 kg

Sound

Built-in speakers	2 x 10 W RMS

Power

Energy Label Class	G
Power Saving Features	Smart Power
Consumption (Typical)	155 W
Consumption (Max)	210 W
Mains power	100–240 V~, 50/60 Hz
Standby power consumption	<0.5 W

Multimedia Applications

USB Playback Video	MPEG
	H.264
	H.263
	H.265
USB Playback Picture	BMP
	JPEG
	PNG
USB Playback Audio	AAC
	HEAAC
	MPEG

Miscellaneous

On-Screen Display Languages	Simplified Chinese
	Traditional Chinese
	English
	French
	German
	Italian
	Polish
	Russian
	Spanish
	Turkish
	Japanese
	Arabic
Regulatory approvals	CE
	CB
	BSMI
	CU
	EPA
	ETL
	FCC, Class A
	PSB
	VCCI
	J-Moss
Warranty	3 year warranty

Operating conditions

Temperature range (storage)	-20 ~ 60 °C
Altitude	0 ~ 3000 m
Humidity range (storage) [RH]	5~95% RH (No condensation)
Temperature range (operation)	0 ~ 40 °C
Humidity range (operation)[RH]	20~80% RH (No condensation)
MTBF	30,000 hour(s)

Picture/Display

Panel resolution	3840 x 2160
Clinical image	D-Image preset (dicom part 14 compatible)
Pixel pitch	0.372 x 0.372 mm
Brightness	400 cd/m²
Diagonal screen size (metric)	163.9 cm
Picture enhancement	3/2 - 2/2 motion pull down
	3D Combfilter
	Motion compens. deinterlacing
	Progressive scan
	3D MA deinterlacing
	Dynamic contrast enhancement
Optimum resolution	3840 x 2160 @ 60 Hz
Display colours	1.07 Billion
Viewing angle (horizontal)	178 degree
Aspect ratio	16:9
Dynamic contrast ratio	500,000:1
Diagonal screen size (inch)	64.5 inch
Viewing angle (vertical)	178 degree
Panel technology	IPS
Contrast ratio (typical)	1300:1
Response time (typical)	9 ms
Operating system	Android 8.0

Supported Display Resolution

Video formats	3840 x 2160, 60 Hz
	3840 x 2160, 30Hz
	576p, 50 Hz
	576i, 50 Hz
	480p, 60 Hz
	480i, 60 Hz
	1080p, 50, 60 Hz
	1080i, 50, 60 Hz
	720p, 50,60 Hz
Computer formats	1920 x 1080, 60 Hz
	1680 x 1050, 60 Hz
	1600 x 1200, 60 Hz
	1440 x 900, 60 Hz
	1280 x 1024, 60 Hz
	1280 x 800, 60 Hz
	1280 x 720, 60 Hz
	1152 x 870, 75 Hz
	1024 x 768, 60, 70, 75 Hz
	800 x 600, 56, 60, 72, 75 Hz
	720 x 400, 70 Hz
	640 x 480, 60, 67, 72, 75 Hz
	1152 x 864, 75 Hz
	832 x 624, 75 Hz
