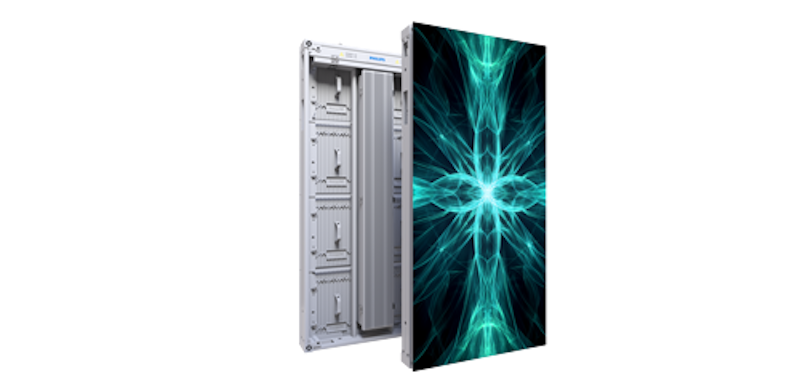

Philips Urban LED 7000 Series

44HUL7139DP/00

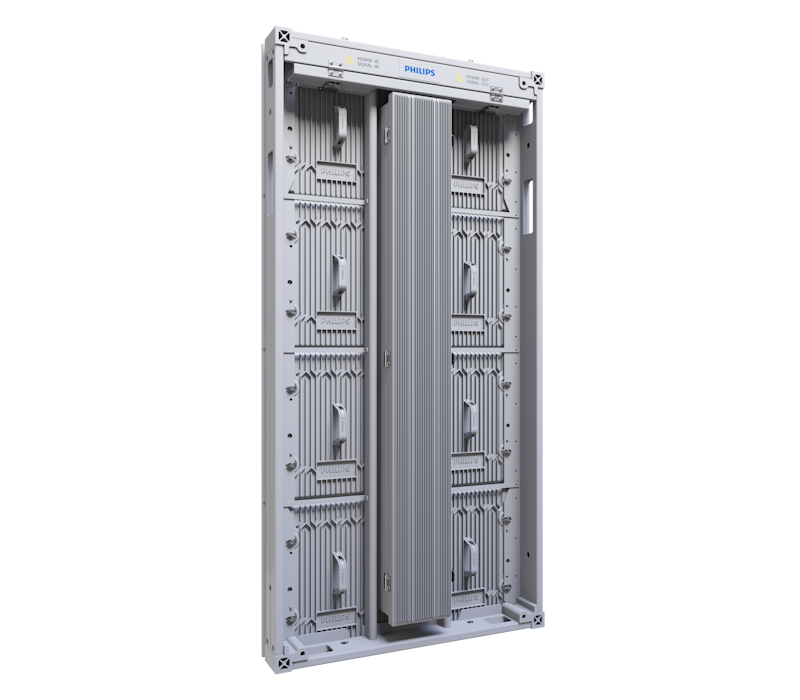

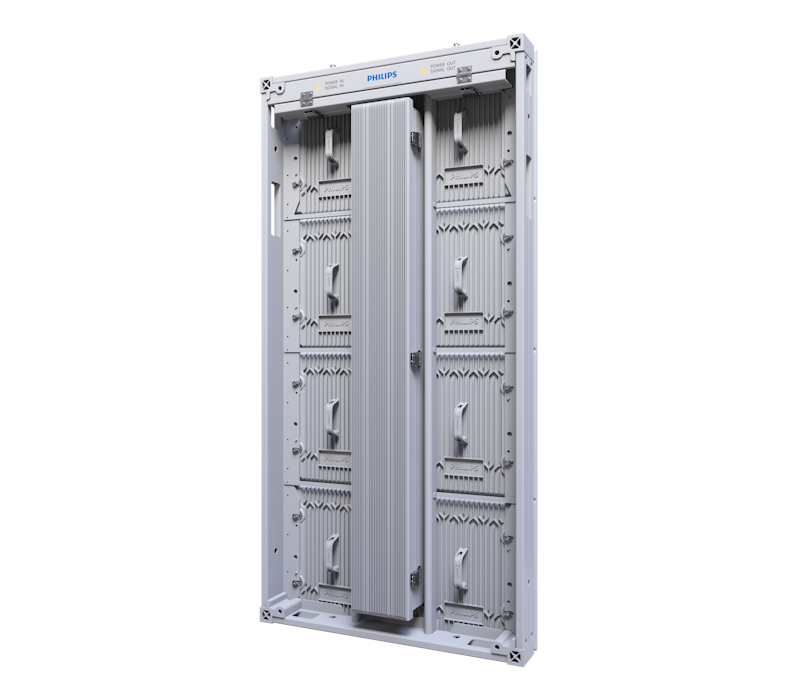

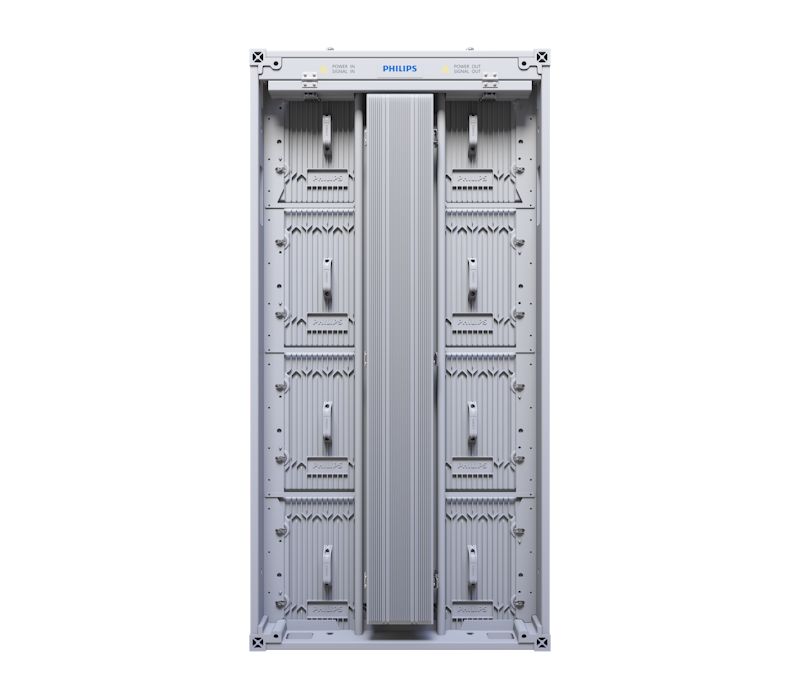

Offering a series of fine pixel pitches, the range ensures high brightness for advertising displays at bus stations, arenas, airports and more. Housed in a die-cast aluminium cabinet, with front and rear access for simplified maintenance.

Get a quote

Technical Specifications

Cabinet

Data connectorSeetronic
Cabinet constructionProfile Aluminium
Cabinet resolution (W x H)128 x 256 pixels
Power connectorSeetronic
Control SystemNovastar
Weight (kg)17±0.5 kg
Cabinet pixels (Dot)32768
Cabinet area (m2)0.5
Cabinet size (inches)44"
Cabinet Size (W x H x D in mm)500 x 1000 x 81.6

Power

BTU/M2 (AC)1923.24
Input voltageAC100~240 V (50 and 60 Hz)
Cabinet Typical Power consumption (W) (AC)113
Power consumption/M2 (W) (AC)564
Power consumption/M2 (W) (BC)660
BTU/M2 (BC)2250.60

Miscellaneous

Regulatory approvalsCB
CE
ETL
FCC
CertificationTUV
ITS
Warranty36 months

Operating conditions

Temperature range (storage)-40~60 °C
Working environment (indoor/outdoor)outdoor
Humidity range (operation)[RH]10%–90%
Humidity range (storage) [RH]10%–90%
Temperature range (operation)-30~50 °C
IP Rating (front/rear)IP66/65

Picture/Display

Calibration (brightness/colour)Colour and Brightness
Colour temperature adjust range3000~10000
Brightness before calibration7000
Refresh rate (Hz)3840 Hz (with CE report and cert.)
Frame frequency (Hz)50 & 60
Contrast ratio8000:1
Viewing angle (°) H/V160/90
Brightness after calibration6000
Colour temperature default8000
Bit-depth (bit)14

Module

Module size (W x H in mm)500 x 250
LED sizeSMD1921
Pixel constitution1R1G1B
Weight (kg)1.85±0.1 kg
Pixel pitch (mm)3.9
LED typeSMD
Module resolution (WxH pixels)128 x 64
LED Lifetime (hrs, half brightness)100 000
