D-Line

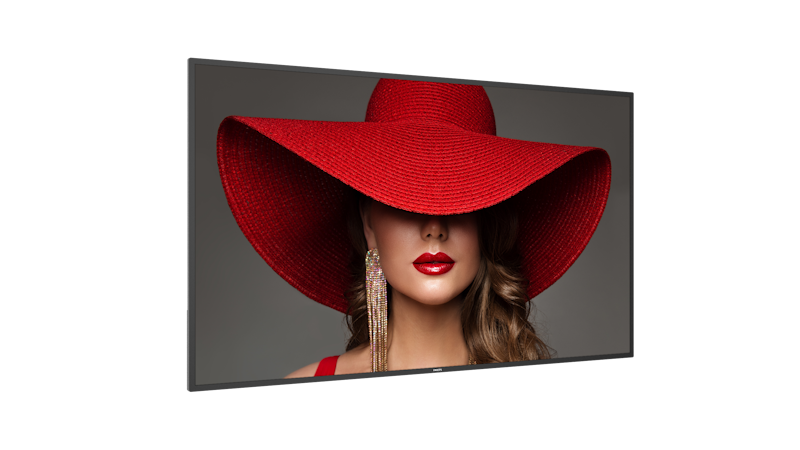

65BDL4650D/00

Philips D-Line is designed to engage your audience and delight customers. Powered by Android 11 for easy software integrations, this versatile display is suitable for impact in any setting.

Get a quote

Technical Specifications

Connectivity

Audio output	3.5mm jack
WiFi	WiFi 6 + Bluetooth 5.2 (slide-in module)
Other connections	4G/LTE antenna connectors
	Micro USB (x1) (OTG)
	USB 2.0 (x1)
Video input	DVI-I (x 1)
	DisplayPort 1.4 (x1)
	HDMI 2.0 (x2)
	USB 3.0 (x2)
	VGA (via DVI)
Audio input	3.5 mm jack
External control	RJ45
	RS232C (in/out) 2.5 mm jack
	IR (in/out) 3.5 mm jack
Video output	DisplayPort 1.4 (x1)

Convenience

Energy saving functions	Smart Power
Screen saving functions	Pixel Shift
Tiled Matrix	Up to 10 x 15
WiFi protocol	a b g n, 802.11 ax, 802.11 ac
Network controllable	RS232
	External 4G mPCIe slot
	RJ45
	WiFi
Keyboard control	Hidden
	Lockable
Placement	Landscape (24/7)
	Portrait (24/7)
Signal loop through	IR Loopthrough
	DisplayPort
	RS232

Accessories

Included Accessories	RS232 daisy-chain cable
	Philips logo (x1)
	AC Switch Cover
	USB Cover (x1)
	Screws
	AC Power Cord
	IR sensor cable (1.8 m) (x1)
	Quick start guide
	Remote control & AAA batteries
	RS232 cable
	WiFi module
	Wire Clamper (x3)

Dimensions

Set Height	837.3 mm
Product weight	28.1 kg
Set Width	1462.3 mm
Wall Mount	400mm(H) x 400mm(V), M8
Set Depth (inch)	3.54(D@Handle)/2.71(D@Wall mount) inch
Product weight (lb)	61.95 lb
Bezel width	14.9 mm (Even bezel)
Set Depth	89.9(D@Handle)/68.9(D@Wall mount) mm
Set Height (inch)	32.96 inch
Set Width (inch)	57.57 inch

Internal Player

GPU	ARM Mali-T860 MP4
Storage	32 GB eMMc
Memory	4GB RAM
CPU	2x A72 + 4x A53

Sound

Built-in speakers	2 x 10W RMS

Power

Standby power consumption	<0.5 W
Mains power	100 ~ 240 VAC, 50 ~ 60 Hz
Consumption (Typical)	155 W
Energy Label Class	G

Multimedia Applications

USB Playback Picture	BMP
	JPEG
	PNG
USB Playback Video	MPEG
	H.263
	H.264
	H.265
	AVI
	MP4
	MPEG4
	VP8
	VP9
	WEBM
USB Playback Audio	AAC
	HEAAC
	MPEG

Operating conditions

Altitude	0 ~ 3000 m
Humidity range (operation)[RH]	20 - 80% RH (No condensation)
MTBF	50,000 hour(s)
Humidity range (storage) [RH]	5 - 95% RH (No condensation)
Temperature range (storage)	-20 ~ 60 °C
Temperature range (operation)	0 ~ 40 °C

Miscellaneous

On-Screen Display Languages	English
	French
	German
	Spanish
	Polish
	Turkish
	Russian
	Italian
	Simplified Chinese
	Traditional Chinese
	Arabic
	Japanese
	Danish
	Dutch
	Finnish
	Norwegian
	Portuguese
	Swedish
Regulatory approvals	CB
	CE
	CCC
	FCC, Class A
	RoHS
	EMF
	EnergyStar 8.0
	UL
Warranty	3 year warranty

Picture/Display

Viewing angle (horizontal)	178 degree
Viewing angle (vertical)	178 degree
Response time (typical)	8 ms
Contrast ratio (typical)	1200:1
Picture enhancement	3/2 - 2/2 motion pull down
	Dynamic contrast enhancement
	Motion compens. deinterlacing
	Progressive scan
Diagonal screen size (inch)	64.5 inch
Dynamic contrast ratio	500,000:1
Operating system	Android 11
Haze	25%
Aspect ratio	16:9
Optimum resolution	3840 x 2160 @60HZ
Diagonal screen size (metric)	163.8 cm
Display colors	1.07 Billion
Panel resolution	3840 x 2160
Pixel pitch	0.372 x 0.3 72 mm
Brightness	500 cd/m²
Panel technology	ADS

Supported Display Resolution

Computer formats	1920 x 1080, 60Hz
	1680 x 1050, 60Hz
	1600 x 900, 60Hz
	1024 x 768, 60Hz
	1280 x 1024, 60Hz
	1280 x 720, 60Hz
	1440 x 900, 60 Hz
	3840 x 2160, 30, 60Hz
	640 x 480, 60Hz
	800 x 600, 60Hz
Video formats	1080i, 50, 60Hz
	576p, 50Hz
	576i, 50Hz
	480p, 60Hz
	480i, 60Hz
	1080p, 50, 60Hz
	720p, 50,60 Hz
	2160p, 50, 60Hz
