D-Line

75BDL4511D/27

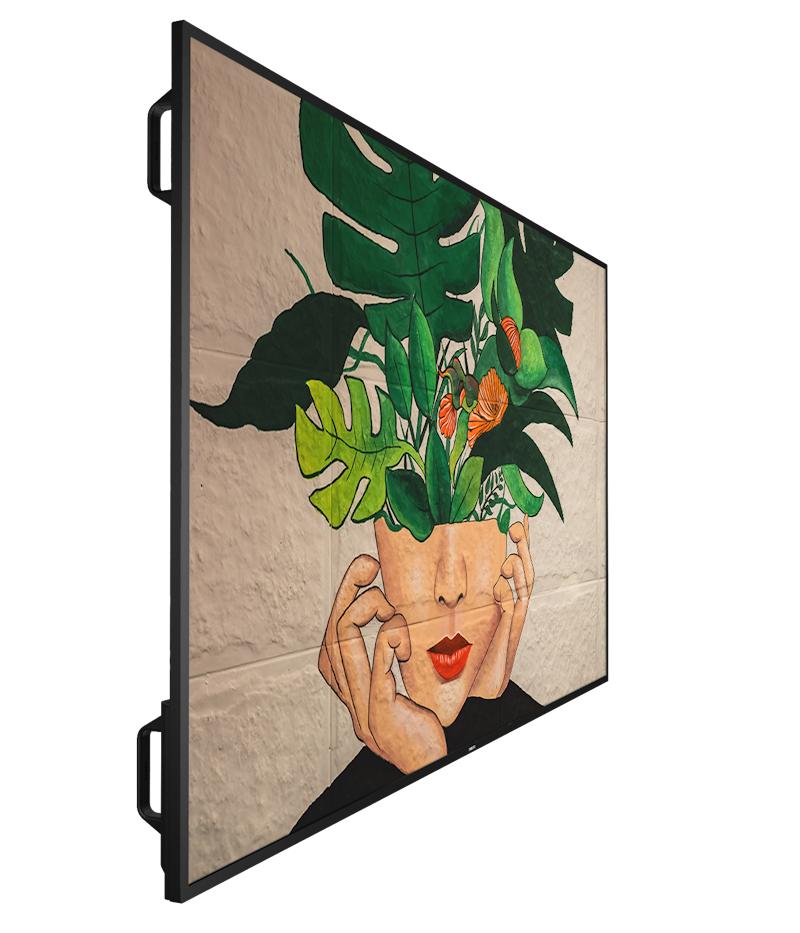

Make it stand out with a fast Philips D-Line Professional 4K UHD display. Philips superb picture quality ensures true colors and intense contrast. You can effortlessly display content from multiple sources on a single screen.

Get a quote

TAA compliant

Created in 1979, TAA compliance requires products and goods considered for governmental use to be manufactured or substantially transformed in the US or in designated TAA countries*. Products for government use are available via selected commercial companies – such as distributors – with Federal Supply Schedule government contracts.

Technical Specifications

Connectivity

Audio output	3.5mm jack
Other connections	OPS
Video input	Display Port1.2 (x1)
	DVI-I (x 1)
	HDMI 2.0 (x3)
	USB 2.0 (x2)
Audio input	3.5 mm jack
Video output	DisplayPort 1.2 (x1)
	HDMI 2.0 (x1)
External control	IR (in/out) 3.5 mm jack
	RJ45
	RS232C (in/out) 2.5 mm jack

Convenience

Screen saving functions	Pixel Shift, Low Bright
Energy saving functions	Smart Power
Placement	Landscape (24/7)
	Portrait (24/7)
Signal loop through	DisplayPort
	RS232
	HDMI
	IR Loopthrough
Network controllable	RS232
	RJ45
Keyboard control	Hidden
	Lockable

Accessories

Included Accessories	AC Switch Cover
	Philips logo (x1)
	RS232 daisy-chain cable
	AC power cord
	IR sensor cable (1.8 m) (x1)
	Quick start guide (x1)
	Remote control & AAA batteries
	RS232 cable
	USB Cover and screw x1
	Wire Clamper (x3)

Dimensions

Product weight	35.9 kg
Set Height	961.7 mm
Set Width	1683.5 mm
Product weight (lb)	79.15 lb
Wall Mount	600(H)x400(V) mm, M8
Set Depth (inch)	2.74 (wall mount)/3.61 (@Handle) inch
Set Height (inch)	37.86
Set Width (inch)	66.28
Set Depth	69.5 (@Wall mount)/ 91.8 (@Handle) mm
Bezel width	14.9 mm (Even bezel)

Sound

Built-in speakers	2 x 10W RMS

Power

Standby power consumption	<0.5 W
Consumption (Typical)	185 W
Mains power	100 ~ 240 VAC, 50 ~ 60 Hz
Consumption (Max)	345 W
Energy Label Class	G

Multimedia Applications

USB Playback Picture	BMP
	JPEG
	PNG
USB Playback Video	H.263
	H.264
	H.265
	MPEG
USB Playback Audio	AAC
	MPEG
	HEAAC

Operating conditions

Altitude	0 ~ 3000 m
MTBF	50,000 hour(s)
Humidity range (operation)[RH]	20 - 80% RH (No condensation)
Humidity range (storage) [RH]	5 - 95% RH (No condensation)
Temperature range (storage)	-20 ~ 60 °C
Temperature range (operation)	0 ~ 40 °C

Miscellaneous

On-Screen Display Languages	Arabic
	Dutch
	Danish
	English
	French
	Finnish
	German
	Italian
	Japanese
	Norwegian
	Polish
	Portuguese
	Russian
	Spanish
	Swedish
	Simplified Chinese
	Turkish
	Traditional Chinese
Warranty	3 year warranty
Regulatory approvals	CE
	FCC, Class A
	CCC
	RoHS
	CB
	BSMI
	EMF
	VCCI
	PSB
	EnergyStar 8.0
	ETL
	CECP
	EAC

Picture/Display

Contrast ratio (typical)	1200:1
Viewing angle (vertical)	178 degree
Response time (typical)	8 ms
Viewing angle (horizontal)	178 degree
Haze	25%
Dynamic contrast ratio	500,000:1
Diagonal screen size (inch)	74.5
Optimum resolution	3840 x 2160 @ 60Hz
Aspect ratio	16:9
Display colors	1.07 Billion
Panel resolution	3840 x 2160
Diagonal screen size (metric)	189.3 cm
Panel technology	ADS
Brightness	500 cd/m²
Pixel pitch	0.4296 x 0.429 6 mm

Supported Display Resolution

Computer formats	640 x 480, 60Hz
	800 x 600, 60Hz
	1024 x 768, 60Hz
	1280 x 720, 60Hz
	1280 x 1024, 60Hz
	1440 x 900, 60 Hz
	1600 x 900, 60Hz
	1680 x 1050, 60Hz
	1920 x 1080, 60Hz
	3840 x 2160, 30, 60Hz
Video formats	480i, 60Hz
	480p, 60Hz
	576p, 50Hz
	576i, 50Hz
	720p, 50,60 Hz
	1080i, 50, 60Hz
	1080p, 50, 60Hz
	2160p, 24, 30, 60Hz
