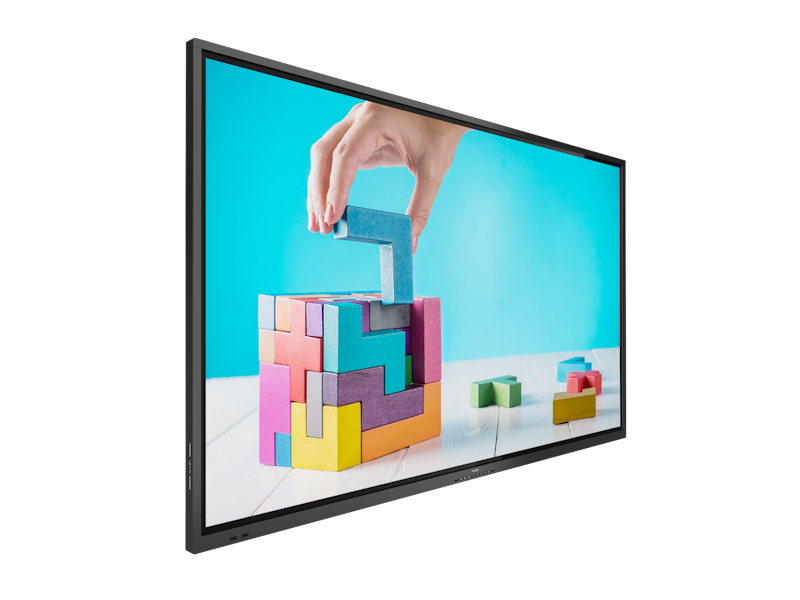

E-Line

75BDL3052E/00

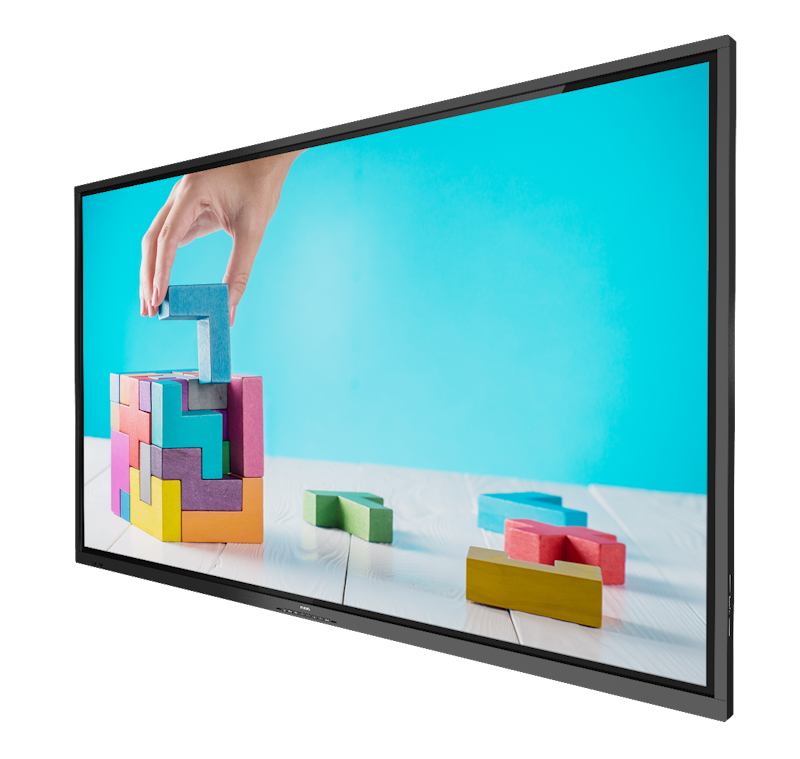

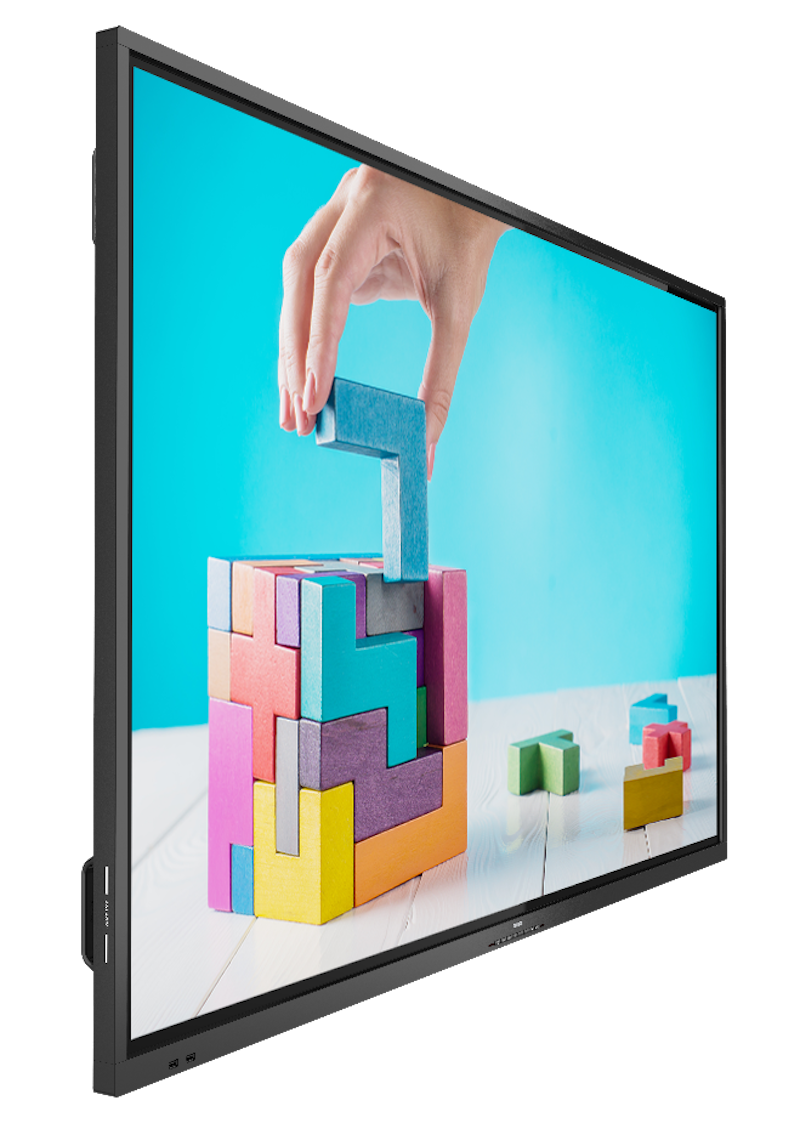

The Philips E-Line touch display maximises engagement and inspires collaboration with up to 20 touchpoints. Powered by Android and featuring a toughened anti-glare glass, it’s made to withstand heavy daily usage in the classroom.

Get a quote

Technical Specifications

Picture/Display

Diagonal screen size (metric)	189.3
Diagonal screen size (inch)	74.5
Panel resolution	3840 x 2160
Optimum resolution	3840 x 2160 @ 60 Hz
Response time (typical)	8
Aspect ratio	16:9
Viewing angle (horizontal)	178
Viewing angle (vertical)	178
Pixel pitch	0.4296 (H) x 0.4296 (V)[mm]
Display colors	1.07 B
Picture enhancement	3/2 - 2/2 motion pull down
	3D Combfilter
	Motion compens. deinterlacing
	Progressive scan
	3D MA deinterlacing
	Dynamic contrast enhancement
Panel technology	ADS
Contrast ratio (typical)	1200:1
Operating system	Android 8.0
OS UI resolution	1920 x 1080 @ 60 Hz
Brightness (after glass)	380
Brightness (before glass)	410

Supported Display Resolution

Computer formats	720 x 400, 70Hz
	832 x 624, 75Hz
	1440 x 900, 60Hz
	1600 x 900, 60Hz
	1680 x 1050, 60Hz
	1920 x 1080, 60Hz
	1024 x 768, 60Hz
	1152 x 870, 75Hz
	1280 x 1024, 60Hz
	1280 x 720, 60Hz
	3840 x 2160, 30, 60Hz
	640 x 480, 60,67,75Hz
	800 x 600, 60Hz
Video formats	480i, 60Hz
	480p, 60Hz
	720p, 50, 60Hz
	1080i, 50, 60Hz
	1080p, 50, 60Hz
	2160p, 30, 60Hz
	576i, 50Hz
	576p, 50Hz

Connectivity

Video input	DVI-D (x1)
	HDMI 2.0 (x3)
	VGA (Analog D-Sub) (x1)
	USB 2.0 (x4)
	USB-C (up to 65W)
Audio input	3.5 mm mini jack (x1)
Audio output	3.5 mm Mini Jack (x1)
External control	IR (in/out) 3.5 mm jack
	RJ45
	RS232C (in/out) 2.5 mm jack
Other connections	OPS
	micro SD
	USB-B (x3)

Convenience

Placement	Landscape (18/7)
Screen saving functions	Pixel Shift, Low Brightness
Signal loop through	RS232
	IR Loopthrough
Ease of installation	AC Out
	Smart Insert
Network controllable	RS232
	RJ45
Keyboard control	Lockable
Remote control signal	Lockable

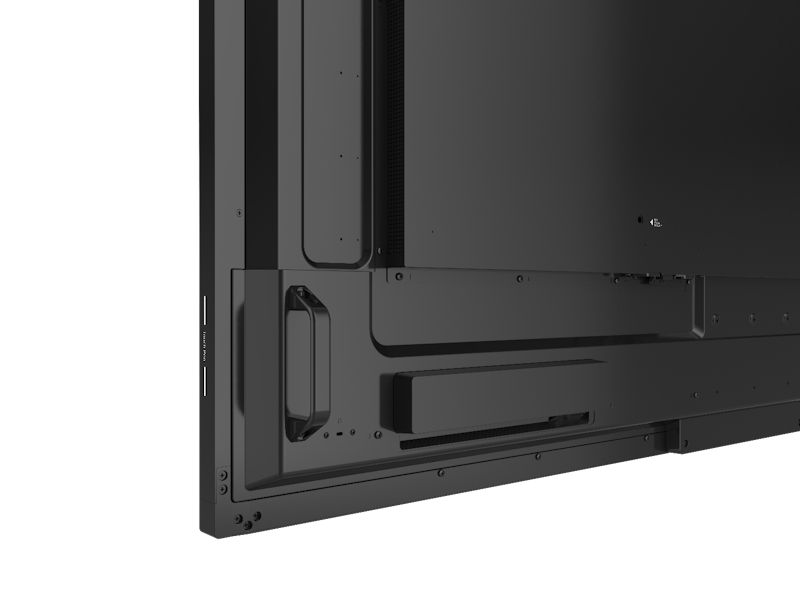

Other convenience	Carrying handles

Operating conditions

Temperature range (operation)	0 ~ 40
Temperature range (storage)	-20~60
Altitude	0 ~ 3000 m
MTBF	50,000
Humidity range (operation)[RH]	20 ~ 80% (without condensation)
Humidity range (storage) [RH]	5 ~ 95% (without condensation)

Power

Consumption (Typical)	155
Consumption (Max)	400 W
Standby power consumption	<0.5W
Mains power	100 ~ 240 VAC, 50/60Hz
Power Saving Features	Smart Power
Energy Label Class	G

Sound

Built-in speakers	2 x15 W

Accessories

Optional accessories	Interact dongles
Included Accessories	Cleaning cloth (x1)
	HDMI Cable (3m) (x1)
	IR sensor cable (1.8 m) (x1)
	Philips logo (x1)
	Quick start guide (x1)
	Remote control & AAA batteries
	RS232 daisy chain cable (x1)
	Touch Pen (x2)
	USB A to B cable (3m) (x1)
	RS232 cable
	AC Power Cord
	Cable clip (x3)
	AC switch cover & Screw x1
	DVI-D cable
	USB cover and screws

Miscellaneous

On-Screen Display Languages	Arabic
	Dutch
	Danish
	English
	French
	Finnish
	German
	Italian
	Japanese
	Norwegian
	Polish
	Portuguese
	Russian
	Spanish
	Swedish
	Simplified Chinese
	Turkish
	Traditional Chinese
Regulatory approvals	CE
	FCC, Class A
	RoHS
	CB
	EAC
	EMF
	ETL
Warranty	5 year warranty

Multimedia Applications

USB Playback Video	H.263
	H.264
	H.265
	MPEG1/2
	MPEG4
	VP9
USB Playback Picture	BMP
	JPEG
	PNG
USB Playback Audio	AAC
	MPEG
	HEAAC

Interactivity

Multi-touch technology	0-gap Infrared touch
Touch points	20 simultaneous touch points
Plug and play	HID compliant
Protection glass	Anti-Glare
	Tempered safety glass 7MOHS

Weight

Product with packaging (kg)	67.60
Product with packaging (lb)	149.03
Product without stand (kg)	55.77
Product without stand (lb)	122.95

Internal Player

CPU	2 x A53 + 2 x A73
GPU	ARM Mali G51
Memory	3GB DDR3
Storage	16GB EMMC

Dimensions

Smart Insert mount	100x100mm, 6xM4L6
Set Width	1715.5
Set Height	1007.6
Set Depth	101.5mm(D_Max)/79.2mm(D_Wallmount)
Set Width (inch)	67.54
Set Height (inch)	39.67
Set Depth (inch)	3.99(D_Max)/3.12(D_Wallmount)
Bezel width	17.8mm(T/R/L) x 31.7mm(B)
Wall Mount	600 x 400 mm, M8
Weight	55.77
