E-Line

86BDL3152E/00

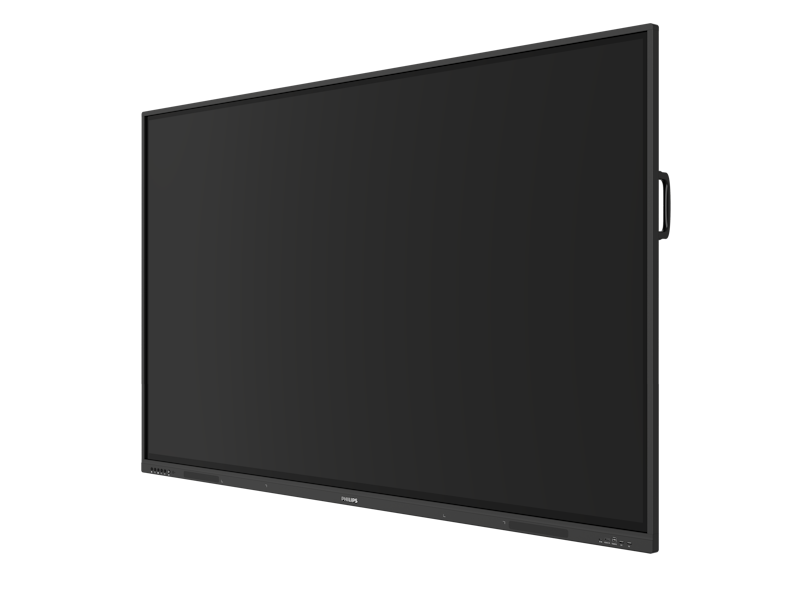

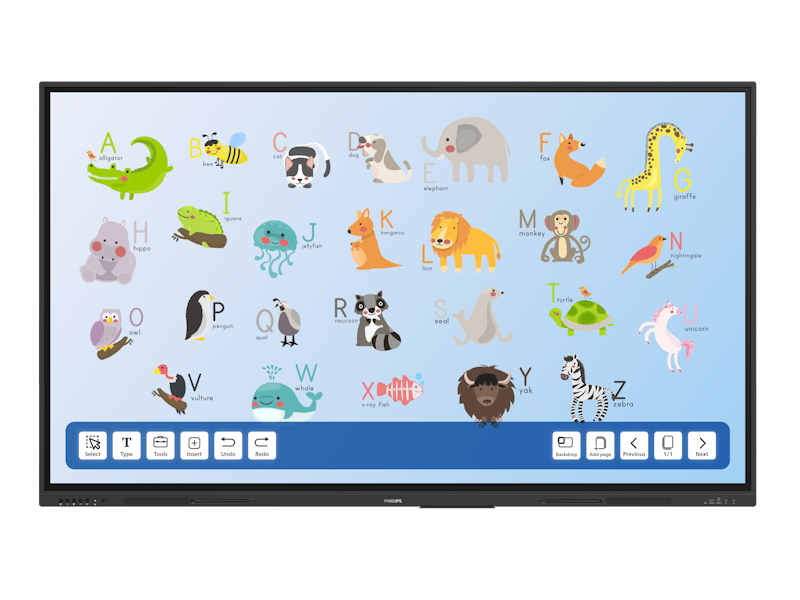

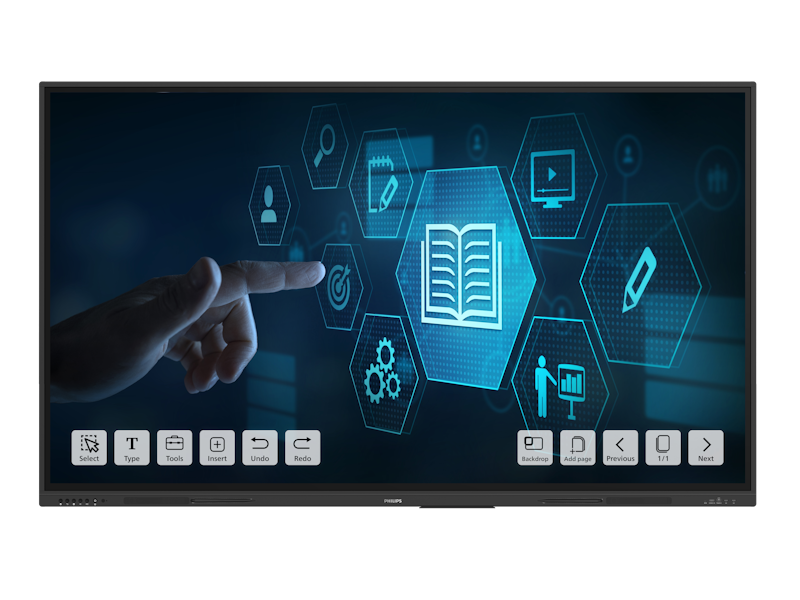

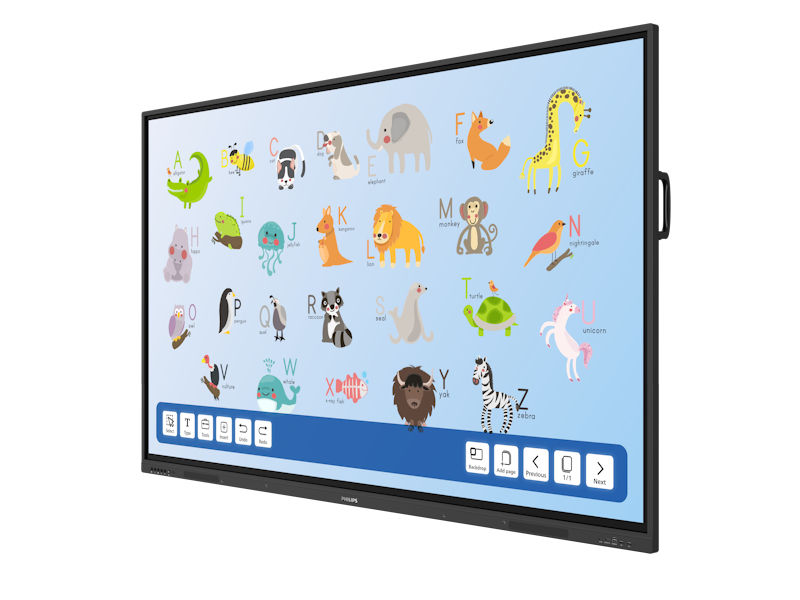

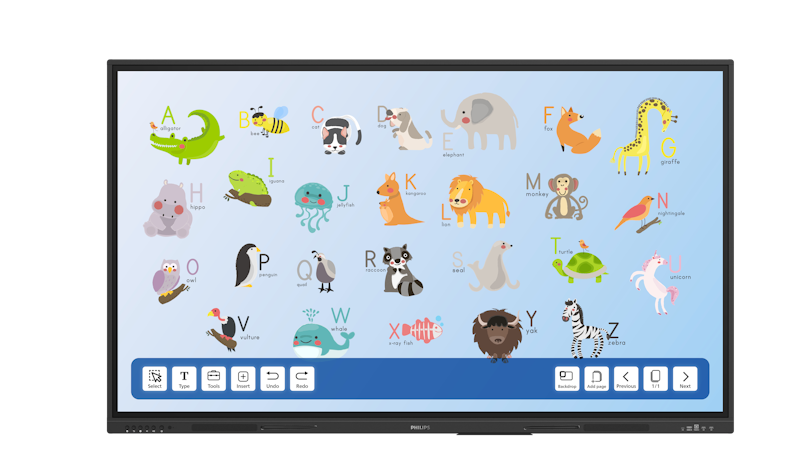

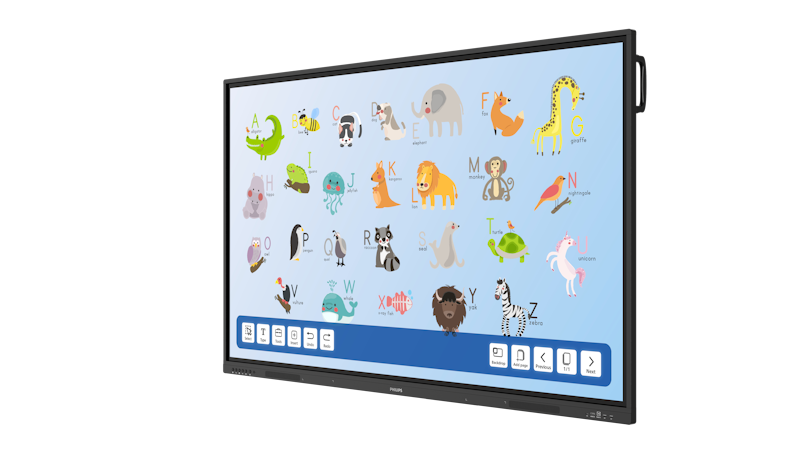

This interactive display maximises engagement and inspires collaboration with up to 40 touchpoints. Powered by Android 13 and with toughened anti-glare and anti-reflection glass, it’s made to withstand heavy daily use in busy environments.

Get a quote

Technical Specifications

Operating conditions

Altitude	0 ~ 5000 m
Humidity range (storage) [RH]	10 ~ 90% (without condensation)
MTBF	30,000 hour(s)
Humidity range (operation)[RH]	10 ~ 90% (without condensation)
Temperature range (storage)	-20~60 °C
Temperature range (operation)	0 ~ 40 °C

Miscellaneous

On-Screen Display Languages	Arabic
	Dutch
	Danish
	English
	French
	Finnish
	German
	Italian
	Japanese
	Norwegian
	Polish
	Portuguese
	Russian
	Spanish
	Swedish
	Simplified Chinese
	Turkish
	Traditional Chinese
Warranty	5 year warranty
Regulatory approvals	CE
	FCC, Class A
	RoHS
	CB
	EAC
	EMF
	ETL
	EnergyStar 8.0

Weight

Product with packaging (kg)	75 kg
Product without stand (lb)	130.51 lb
Product with packaging (lb)	165.35 lb
Product without stand (kg)	59.2 kg

Picture/Display

Picture enhancement	3/2 - 2/2 motion pull down
	3D Combfilter
	Motion compens. deinterlacing
	Progressive scan
	3D MA deinterlacing
	Dynamic contrast enhancement
Viewing angle (vertical)	178 degree
Contrast ratio (typical)	5000:1
Response time (typical)	8 ms
Viewing angle (horizontal)	178 degree
Optimum resolution	3840 x 2160 @ 60 Hz
Aspect ratio	16:9
Diagonal screen size (inch)	86 inch
Operating system	Android 13
Display colors	1.07 B
Panel resolution	3840 x 2160
OS UI resolution	1920 x 1080 @ 60 Hz
Diagonal screen size (metric)	218.44 cm
Panel technology	VA
Pixel pitch	0.4935 (H) x 0.4935 (V)[mm]
Brightness	400 cd/m²

Supported Display Resolution

Video formats	480i, 60Hz
	480p, 60Hz
	720p, 50, 60Hz
	1080i, 50, 60Hz
	1080p, 50, 60Hz
	2160p, 30, 60Hz

Interactivity

Protection glass	Anti-Glare
	Tempered safety glass 7MOHS
Touch points	50 simultaneous touch points(depending on application)
Plug and play	HID compliant
Multi-touch technology	0-gap Infrared touch

Connectivity

Other connections	OPS
	USB-B (x2)
Bluetooth	BT5.2
Audio output	3.5 mm Mini Jack (x1)
	SPDIF
Video input	HDMI 2.0 (x3)
	VGA (Analog D-Sub) (x1)
	USB-C (up to 65W)
	USB 2.0 ( x1)
	USB 3.0 (x4)
Audio input	3.5 mm mini jack (x1)
External control	RS232C (in) D-Sub9
	RJ45 x2

Convenience

Remote control signal	Lockable
Screen saving functions	Pixel Shift, Low Brightness
Other convenience	Carrying handles
Keyboard control	Lockable
Placement	Landscape (16/7)
Network controllable	RS232
	RJ45

Accessories

Accessories	Power code(US, UK, EU)
	HDMI cable
	USB A to B
	Remote control & AAA batteries
	2 pcs stylus
	Quick start guide
	Wall mount

Dimensions

Set Height	1159.9 mm
Set Width	1957 mm
Wall Mount	800 x 600 mm,M8
Set Depth (inch)	3.94 inch
Set Width (inch)	77.05 inch
Bezel width (L/R, T/B)	16.6mm (L/R/T) / 45.0mm (B)
Set Depth	95.5 mm
Set Height (inch)	45.67 inch
