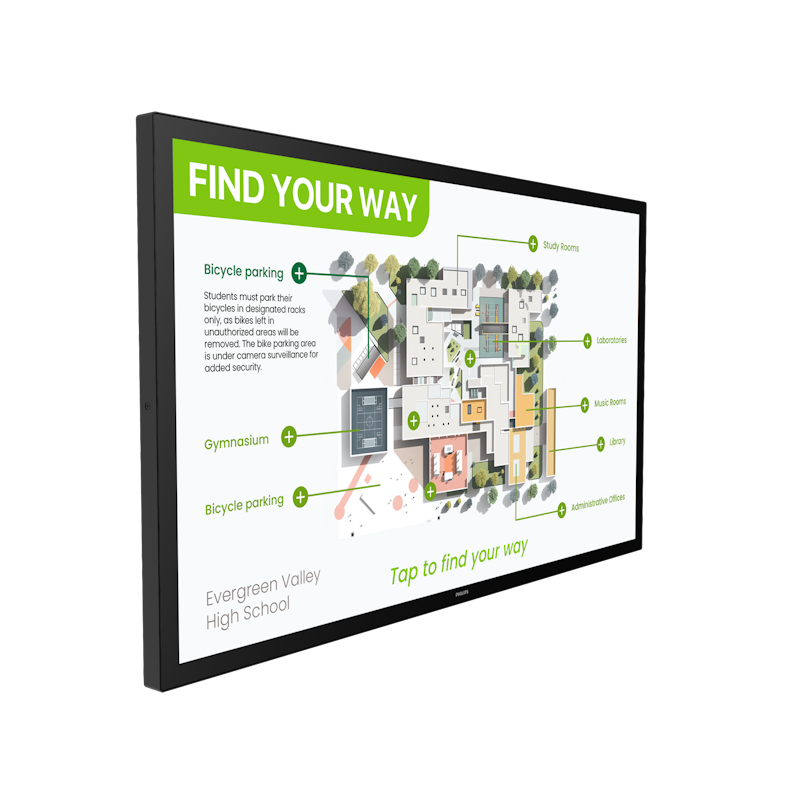

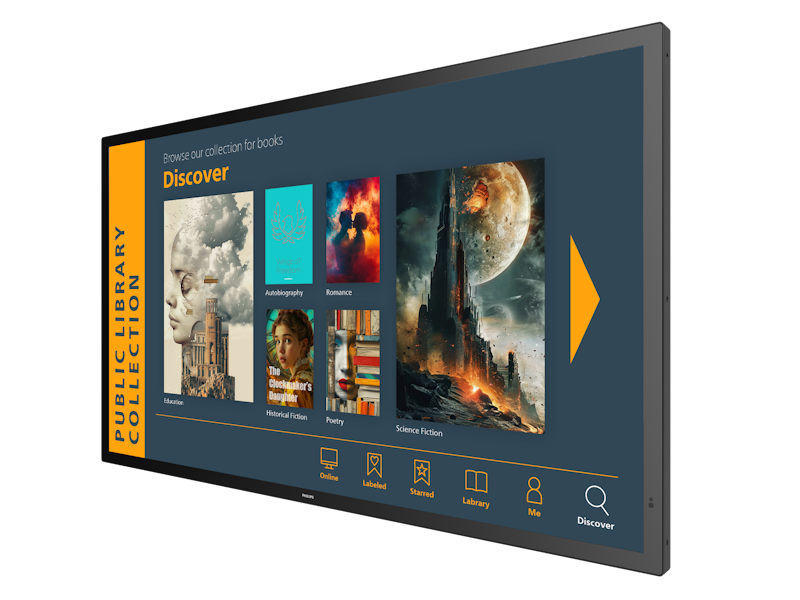

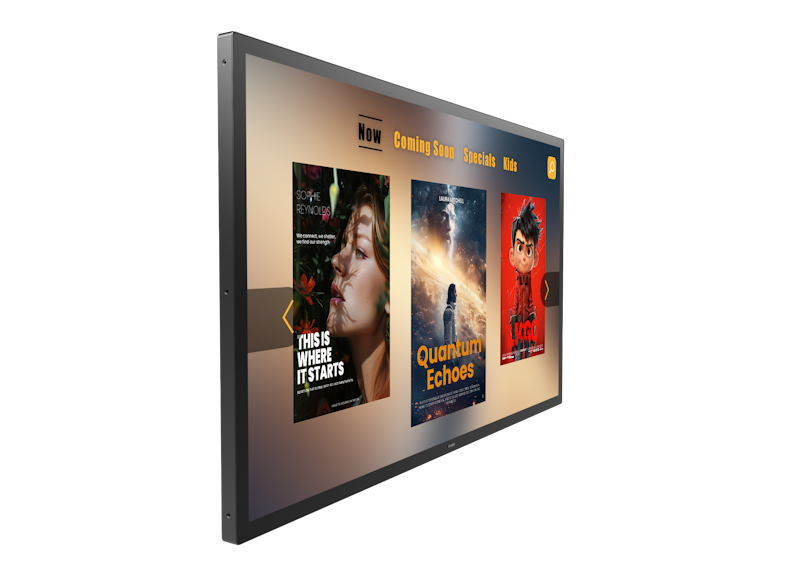

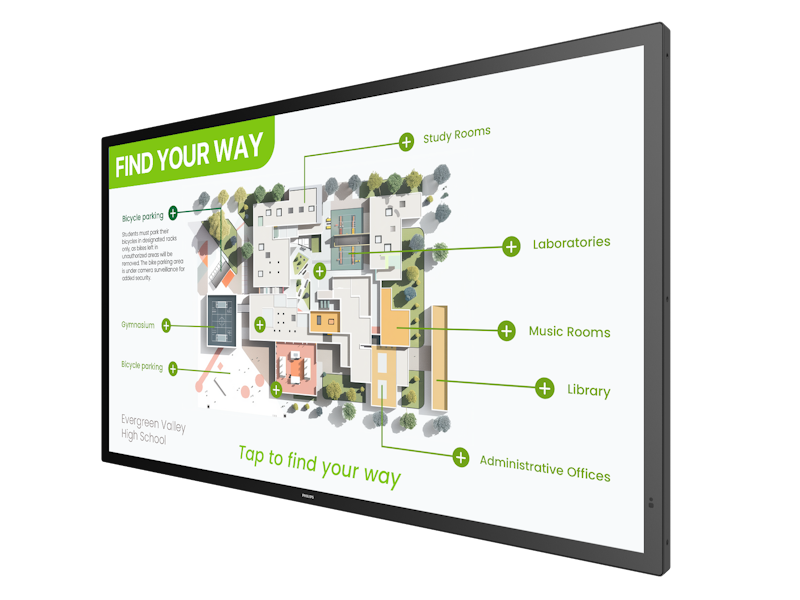

T-Line

55BDL3751T/00

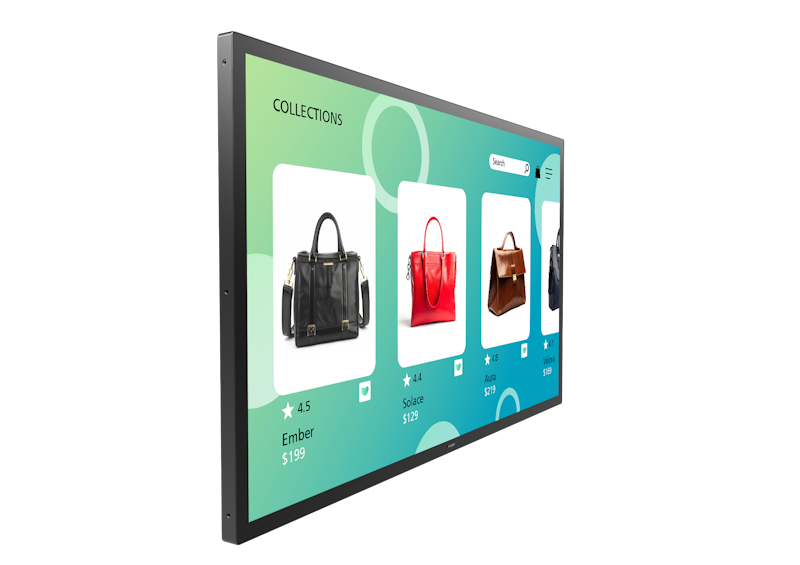

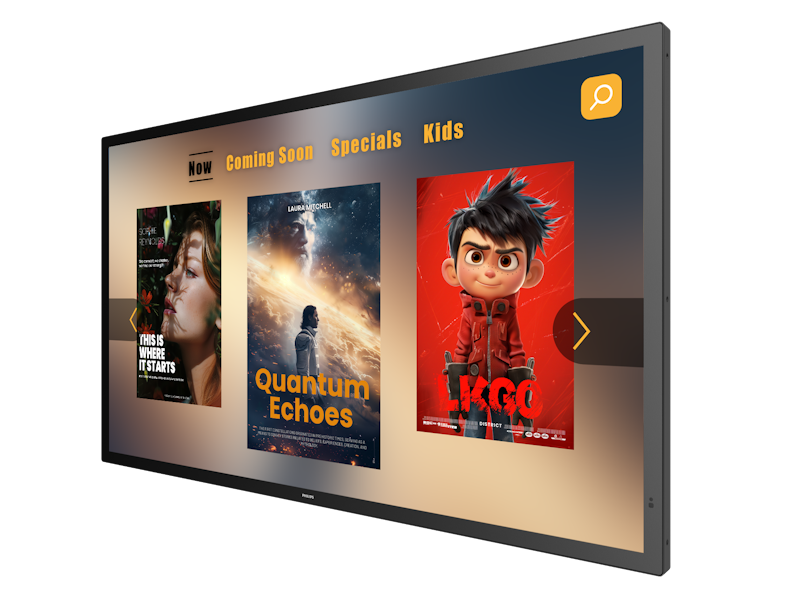

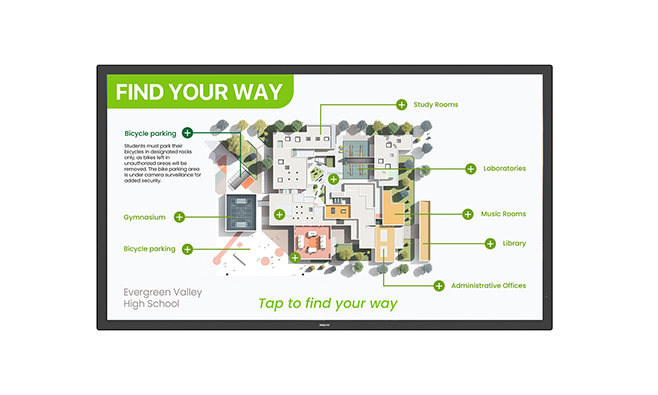

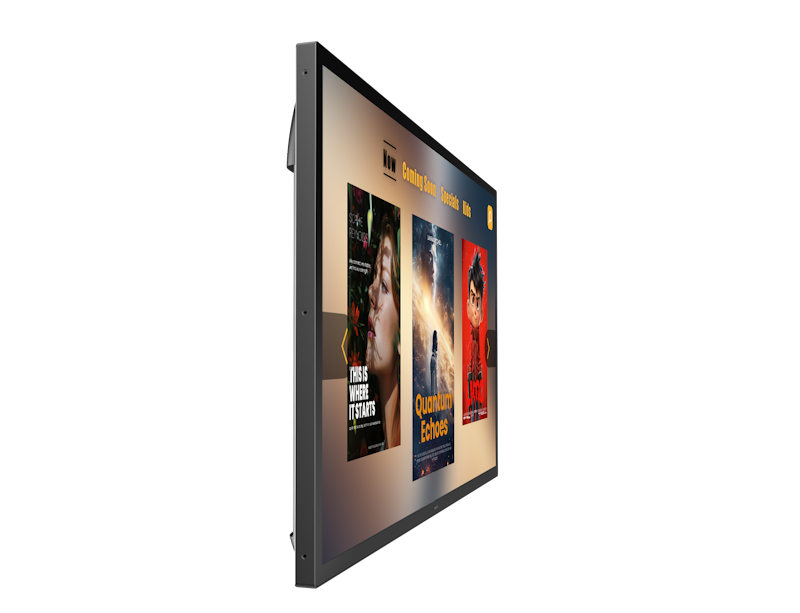

Delivering 24/7 operation with 450 nits of brightness, this versatile PCAP display is also designed to reduce energy consumption across the range. Engage. Inspire. Connect. With Android 13, Wave ready and no need for an external media player.

Get a quote

Technical Specifications

Weight

Product without packaging (kg)	24.96 kg
Product with packaging (lb)	70.94 lb
Product with packaging (kg)	32.18 kg
Product without packaging (lb)	55.03 lb

Miscellaneous

On-Screen Display Languages	Arabic
	English
	French
	German
	Italian
	Japanese
	Polish
	Spanish
	Turkish
	Russian
	Simplified Chinese
	Traditional Chinese
	Danish
	Dutch
	Finnish
	Norwegian
	Portuguese
	Swedish
Regulatory approvals	BSMI
	CB
	CE
	FCC, Class A
	RoHS
	CU
	ETL
	IMDA
	PSB
	Energy Star 8.0
Warranty	3 year warranty

Operating conditions

Temperature range (storage)	-20~60 °C
Altitude	0 ~ 3000 m
Humidity range (operation)[RH]	20–80% (without condensation)
Humidity range (storage) [RH]	5–95% (without condensation)
Temperature range (operation)	0 ~ 40 °C
MTBF	50,000 hour(s)

Picture/Display

Panel resolution	3840 x 2160
Brightness max. (after glass)	450 cd/m²
Diagonal screen size (metric)	138.4 cm
Pixel pitch	0.315
Optimum resolution	3840 x 2160 @ 60 Hz
Display colours	1.07 B
OS UI resolution	UHD
Picture enhancement	3/2 - 2/2 motion pull down
	3D Combfilter
	Motion compens. deinterlacing
	Progressive scan
	3D MA deinterlacing
	Dynamic contrast enhancement
Aspect ratio	16:9
Viewing angle (horizontal)	178 degree
Brightness max. (before glass)	500 cd/m²
Surface treatments	Anti-Glare coating
	Anti-Fingerprint coating
Panel technology	VA
Contrast ratio (typical)	5000:1
Diagonal screen size (inch)	54.5" inch
Viewing angle (vertical)	178 degree
Response time (typical)	8 ms
Operating system	Android 13

Supported Display Resolution

Video formats	480i, 60 Hz
	480p, 60 Hz
	576p, 50 Hz
	576i, 50 Hz
	720p, 50, 60 Hz
	1080i, 50, 60 Hz
	1080p, 50, 60 Hz
	3840 x 2160, 30, 60 Hz
Computer formats	720 x 400, 70 Hz
	640 x 480, 60, 67, 75 Hz
	800 x 600, 60 Hz
	832 x 624, 75 Hz
	1024 x 768, 60 Hz
	1152 x 870, 75 Hz
	1280 x 720, 60 Hz
	1920 x 1080, 60 Hz
	1680 x 1050, 60 Hz
	3840 x 2160, 30, 60 Hz
	800 x 600, 60, 72, 75 Hz
	3840 x 2160, 60 Hz, 50 Hz

Interactivity

Protection glass	3 mm tempered safety glass
Multi-touch technology	Projected capacitive
Plug and play	HID compliant
Touchpoints	10 simultaneous touch points

Connectivity

Audio output	3.5 mm jack
Video input	HDMI 2.0 (x 2)
	Display Port1.3 (x 1)
	USB-C (with 15 W power delivery)
External control	Gigabit LAN RJ45
	IR (in/out) 3.5 mm jack
	RS232 (in/out) 2.5 mm jack
Other connections	Micro USB (x 1) (OTG)
	USB 3.0 A (x 2)
	USB 3.0 B (x 1)
	Wi-Fi: 2 T/2 R 2.4/5/6 GHz
	Bluetooth 5.2

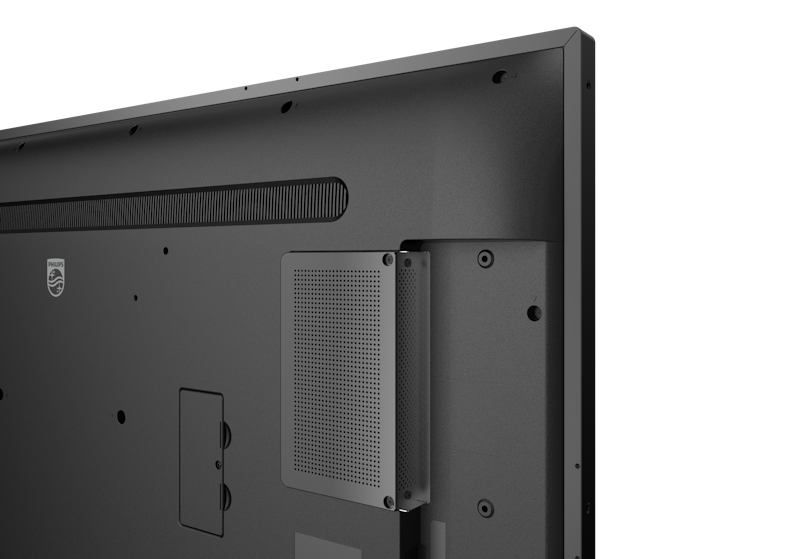

	OPS

Convenience

Remote control signal	Lockable
Screen-saving functions	Pixel Shift, Low Brightness

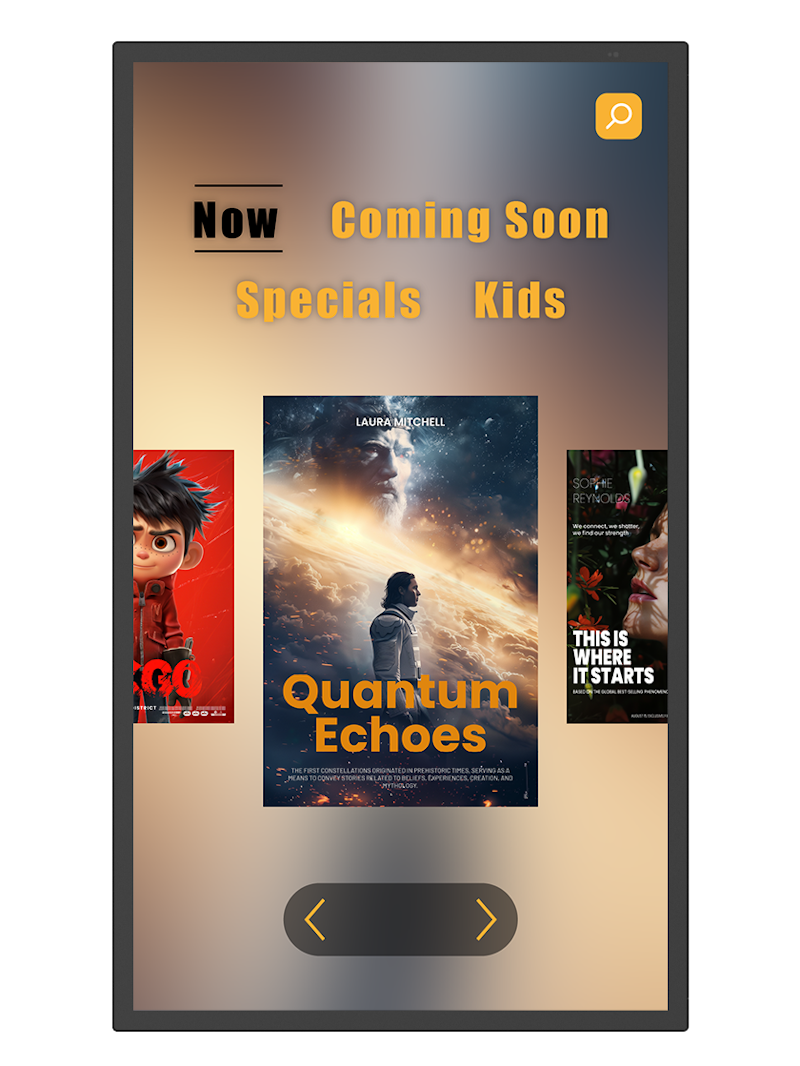

Placement	Landscape (24/7)

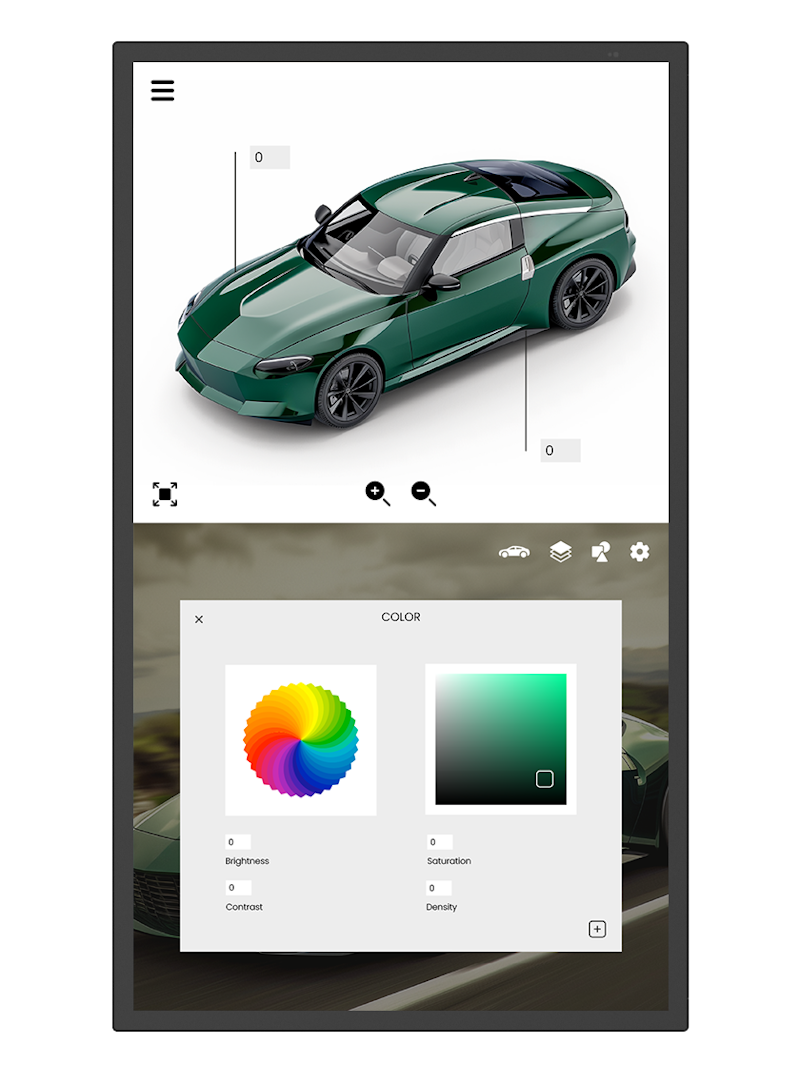

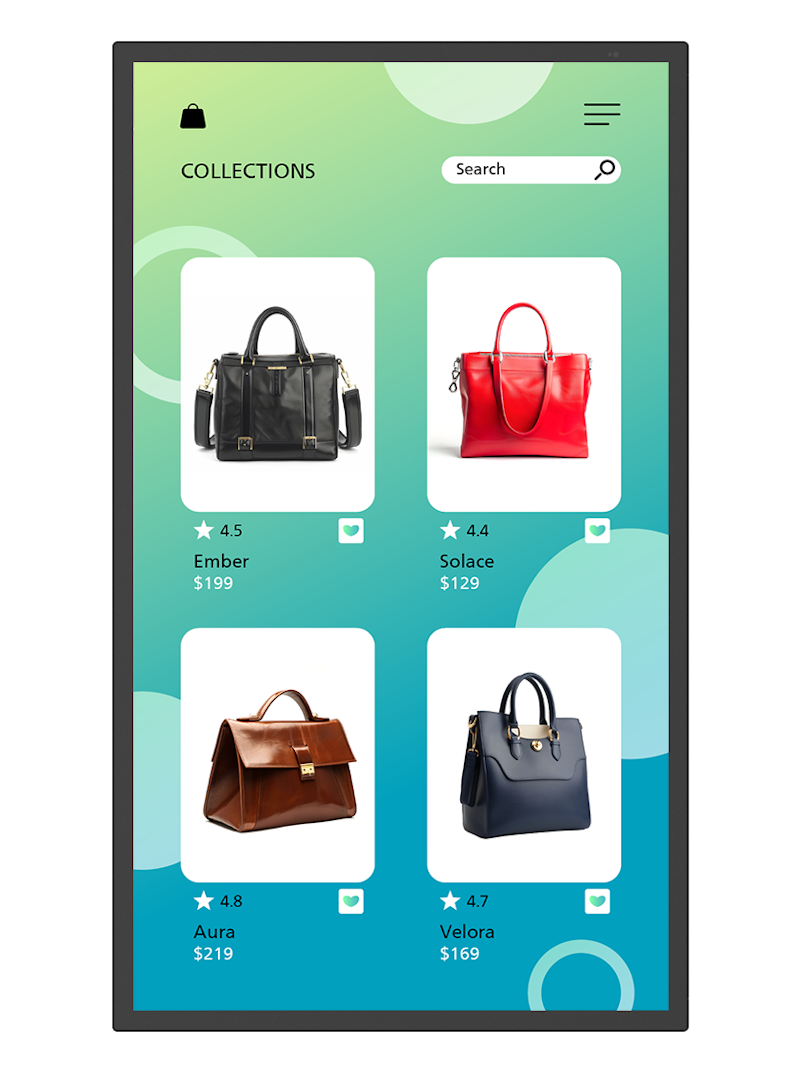

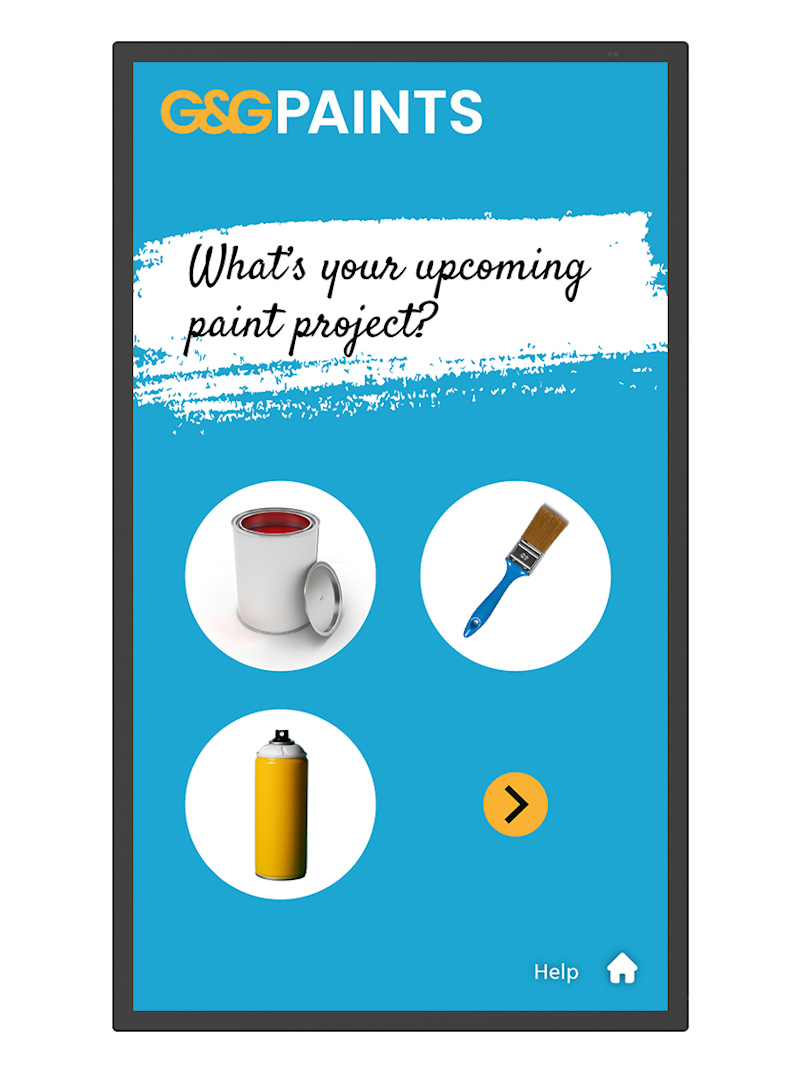

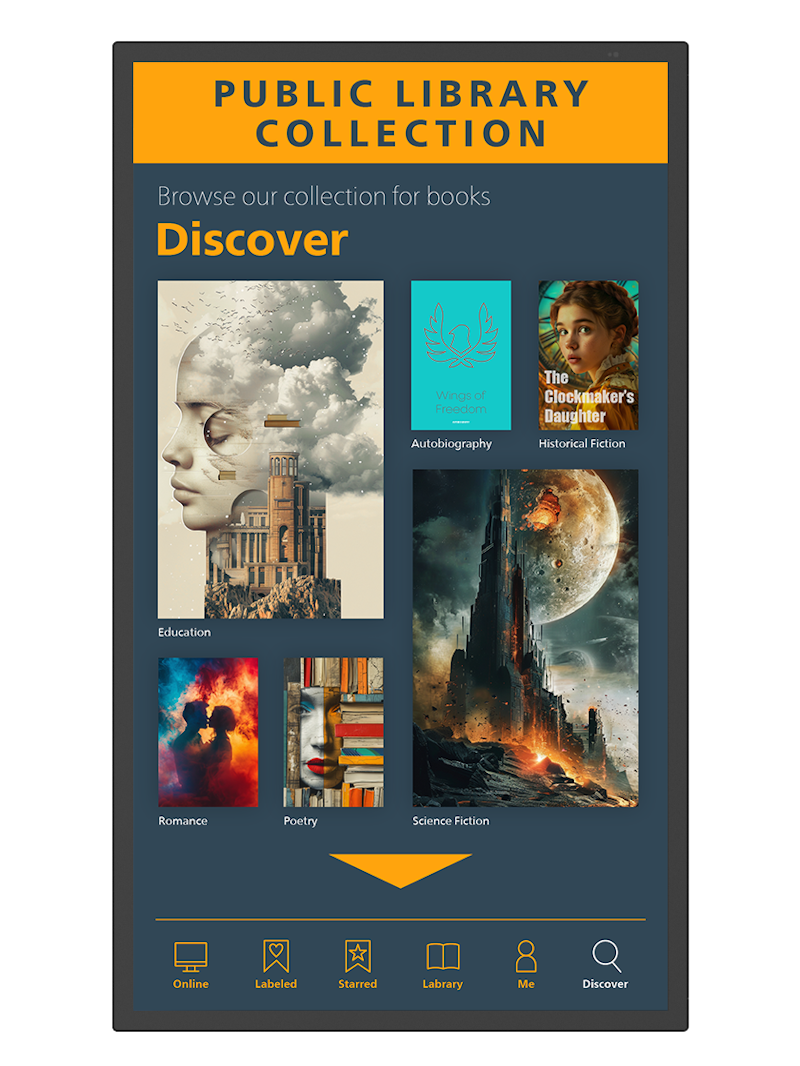

	Portrait (24/7)
	Tilted installation up to 30° backwards
Network controllable	RS232
	RJ45
Signal loop through	IR Loop through
	RS232

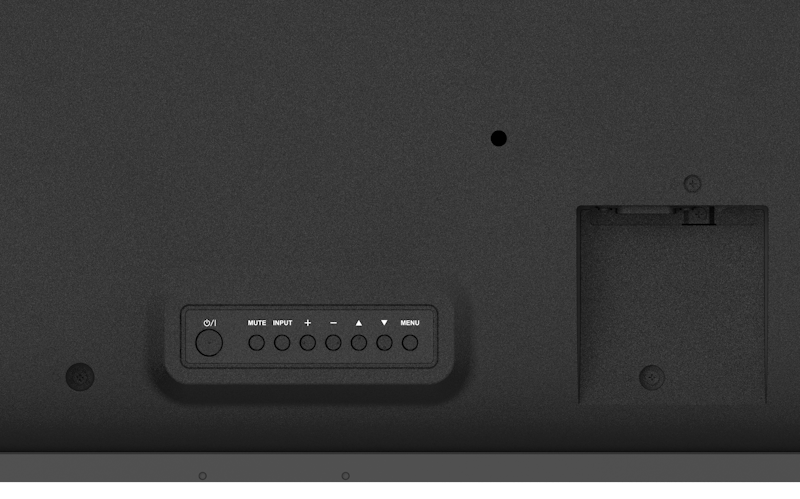

Keyboard control	Hidden
	Lockable

Accessories

Optional accessories	Open frame kit (BM03751)
Stand	BM05922 (Optional)
Included Accessories	Philips logo (x 1)
	Power supply cable (3 m)
	Quick start guide (x 1)
	Remote control and AAA batteries
	AC Switch Cover
	RS232 cable (3 m) (x 1)
	USB A to B cable (3 m) (x 1)
	CRD32 Wi-Fi module
	Wi-Fi Antennas (2 pcs)

Dimensions

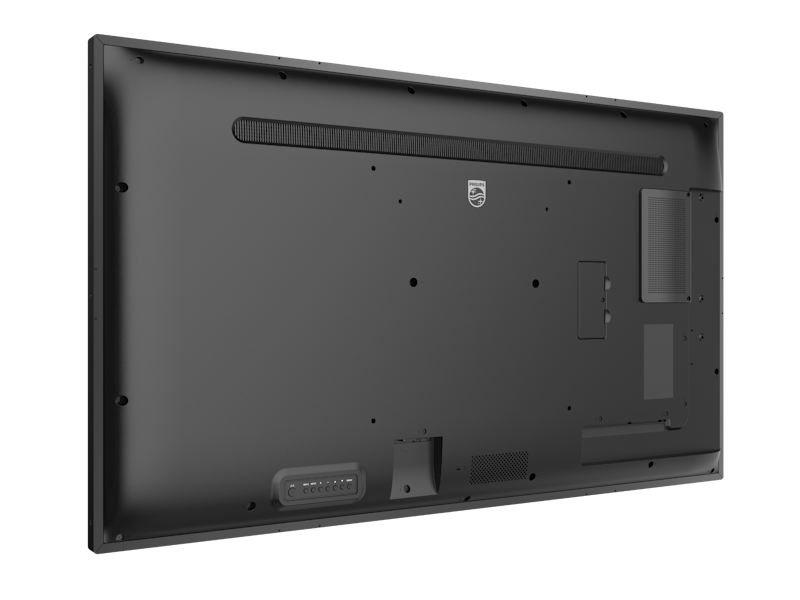

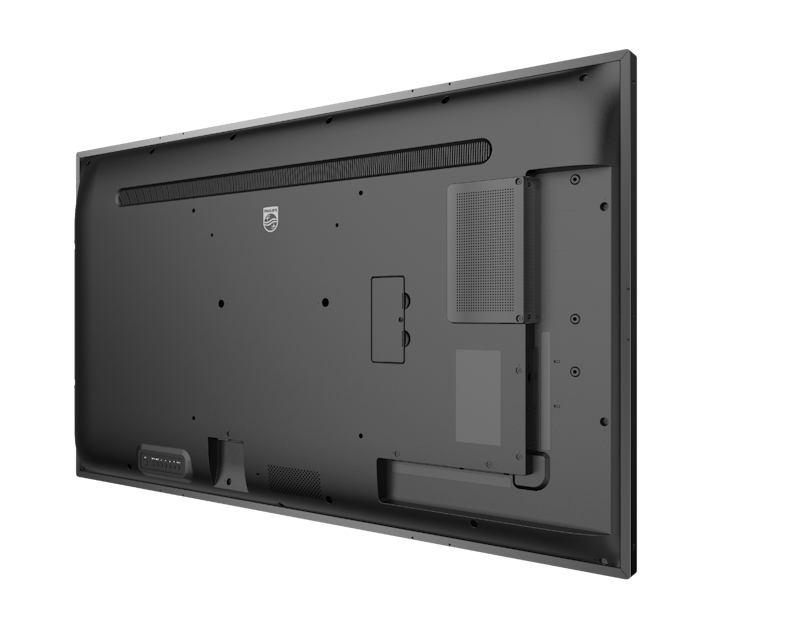

Wall Mount	400 mm x 400 mm, M6
Set Height	736.4 mm
Set Width	1265.6 mm
Set Width (inch)	49.83" inch

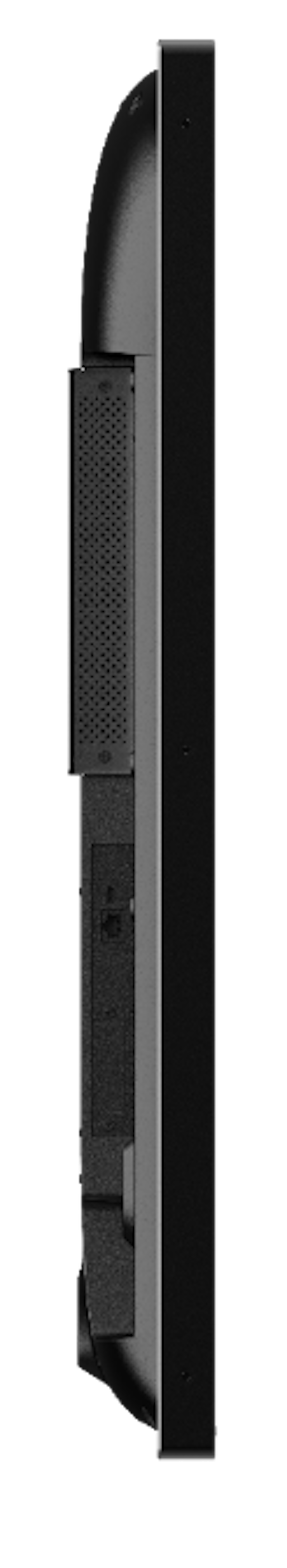

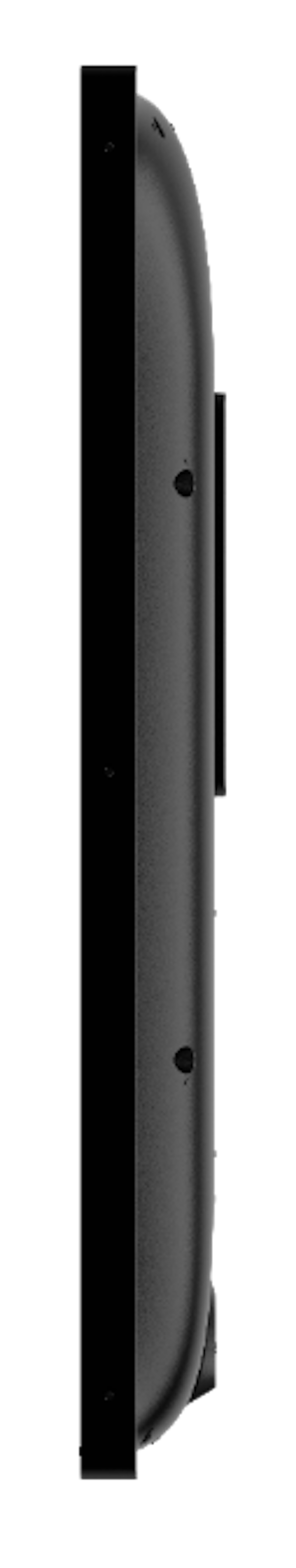

Set Depth	69.8 mm (Wall mount)/76.0 mm (OPS box) mm
Set Depth (inch)	2.75" (Wall mount) / 2.99" (AC connector) inch
Bezel width	27.0 mm touch black border (T/R/L/B)
Set Height (inch)	28.99" inch

Internal Player

Storage	32 GB eMMc
Memory	4 GB DDR3
CPU	Quad-Core Cortex A55
GPU	Multi-Core Mali-G52

Sound

Built-in speakers	2 x 10 W

Power

Energy Label Class	G
Consumption (Typical)	100 W
Consumption (Max)	179 W
Mains power	100 ~ 240 VAC, 50/60 Hz
Standby power consumption	<0.5 W

Multimedia Applications

USB Playback Video	MPEG 1/2 (1080p 60 Hz)
	MPEG 4 (1080p 60 Hz)
	H.263 (1080p 60 Hz)
	H.264 (4K2K 120 Hz)
	H.265 (4K2K 120 Hz)
	VP8 (1080p 60 Hz)
	VP9 (4K2K 120 Hz)
USB Playback Picture	JPEG
	PNG
	BMP
	WEBP
USB Playback Audio	AAC
	HEAAC
	MPEG 1/2/2.5 Layer 3
	MPEG 1/2 Layer 1
	MPEG 1/2 Layer 2
