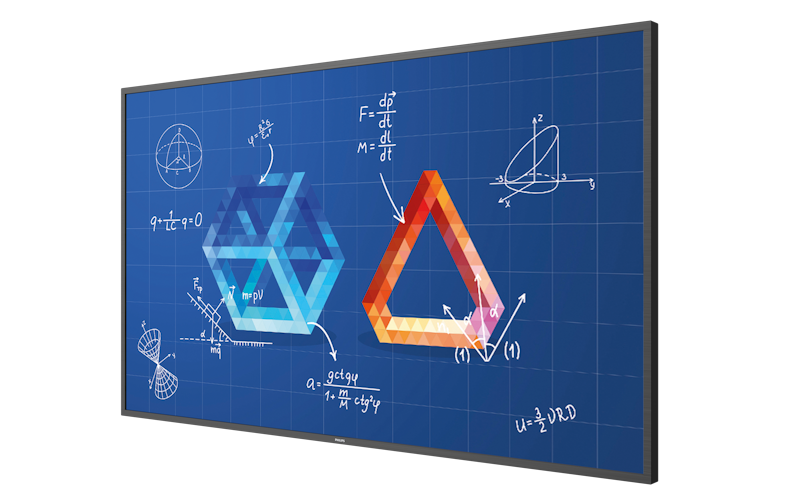

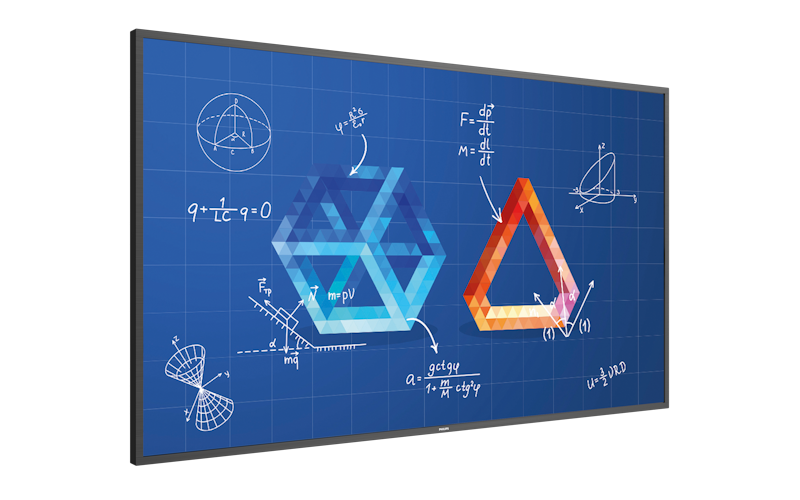

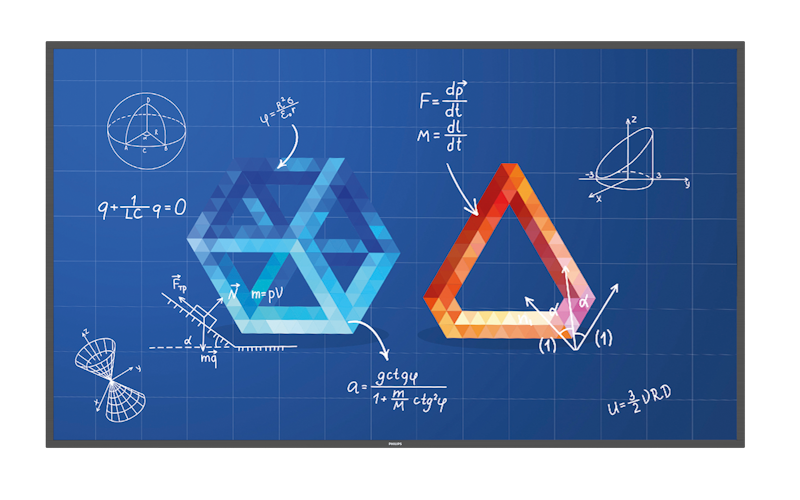

T-Line

65BDL3652T/00

Maximise engagement and inspire collaboration with an interactive Philips T-Line display. Featuring anti-glare toughened glass, these Android-powered displays are made to withstand heavy daily usage and feature up to 20 touchpoints

Get a quote

Technical Specifications

Operating conditions

Temperature range (storage)	-20 ~ 60 °C
Relative humidity	20–80% (Operational), 5–95% (Storage) %
Temperature range (operation)	0 ~ 40 °C
Altitude	0 ~ 3000 m
MTBF	50,000 hour(s)

Miscellaneous

On-Screen Display Languages	Arabic
	Dutch
	Danish
	English
	French
	Finnish
	German
	Italian
	Japanese
	Norwegian
	Polish
	Portuguese
	Russian
	Spanish
	Swedish
	Simplified Chinese
	Turkish
	Traditional Chinese
Regulatory approvals	CE
	FCC, Class A
	RoHS
	CB
	BSMI
	EAC
	EMF
	PSB
	ETL
Warranty	5-year warranty

Picture/Display

Pixel pitch	0.372 x 0.372 mm
Diagonal screen size (metric)	163.9 cm
Brightness	420 cd/m²
Panel resolution	3840 x 2160
Surface treatment	Anti-Glare coating
Picture enhancement	3/2 - 2/2 motion pull down
	3D Combfilter
	Motion compens. deinterlacing
	Progressive scan
	3D MA deinterlacing
	Dynamic contrast enhancement
Display colours	1.07 Billion
Optimum resolution	3840 x 2160 @ 60 Hz
Aspect ratio	16:9
Dynamic contrast ratio	500,000:1
Viewing angle (horizontal)	178 degree
Panel technology	IPS
Response time (typical)	9 ms
Viewing angle (vertical)	178 degree
Operating system	Android 9
Contrast ratio (typical)	1300:1
Diagonal screen size (inch)	64.5

Supported Display Resolution

Video formats	480p, 60 Hz
	576p, 50 Hz
	720p, 60 Hz
	720p, 50, 60 Hz
	1080i, 50, 60 Hz
	1080p, 50, 60 Hz
	4K x 2K
Computer formats	640 x 350, 70 Hz
	640 x 480, 60, 67, 72, 75 Hz
	800 x 600, 56, 60, 72, 75 Hz
	832 x 624, 75 Hz
	848 x 480, 60 Hz
	960 x 720, 75 Hz
	1024 x 768, 60, 70 Hz
	1152 x 864, 60, 70, 75 Hz
	1152 x 900, 66 Hz
	1280 x 720, 60, 70 Hz
	1280 x 768, 60 Hz, 75 Hz
	1280 x 800, 60, 75 Hz
	1280 x 960, 60 Hz
	1280 x 1024, 60, 67, 75 Hz
	1360 x 768, 60 Hz
	1366 x 768, 60 Hz
	1400 x 1050, 60, 75 Hz
	1440 x 900, 60, 75 Hz
	1440 x 1050, 60 Hz
	1600 x 900, 60 Hz
	1600 x 1200, 60 Hz
	1680 x 1050, 60 Hz
	1920 x 1080, 60 Hz
	1920 x 1200, 60 Hz
	3840 x 2160, 24, 25, 30, 60 Hz

Interactivity

Protection glass	Anti-Glare
	Tempered safety glass
Multi-touch technology	0-gap Infrared touch
Plug and play	HID compliant
Touchpoints	20 simultaneous touch points

Connectivity

Video output	DisplayPort 1.2 (x 1)
	DVI - D (x 1)
	USB 2.0 (x 2)
	HDMI 2.0 (x 2)
Audio output	3.5 mm Jack (x 2)
Video input	Display Port1.2 (x 1)
	DVI-I (x 1)
	HDMI 2.0 (x 2)
	HDMI 2.0 (x 4)
	USB 2.0 (x 2)
	USB 3.0 (x 2)
	USB-C
External control	IR (in/out) 3.5 mm jack
	RJ45
	RS232C (in/out) 2.5 mm jack
Audio input	3.5 mm Jack (x 1)
Other connections	OPS
	micro SD

Convenience

Ease of installation	Smart Insert
Remote control signal	Lockable
Screen-saving functions	Pixel Shift, Low Brightness
Picture performance	Advanced colour control
Placement	Portrait (12/7)
	Landscape (18/7)
Energy-saving functions	Smart Power
Network controllable	RS232
	RJ45
Keyboard control	Hidden
	Lockable
Other convenience	Carrying handles
Signal loop through	DisplayPort
	RS232
	IR Loop through

Accessories

Optional accessories	Interact dongles
Included Accessories	Cleaning cloth (x 1)
	DVI-D cable (1.8 m)
	M2 Screw (x 2)
	M3 screw (x 2)
	Philips logo (x 1)
	RS232 daisy-chain cable
	Touch Pen (x 2)
	Touch USB (x 1)
	USB Cover (x 1)
	AC power cord
	Batteries for remote control
	HDMI cable
	IR sensor cable (1.8 m) (x 1)
	Quick start guide (x 1)
	Remote control (x 1)
	RS232 cable

Dimensions

Set Height	869.40 mm

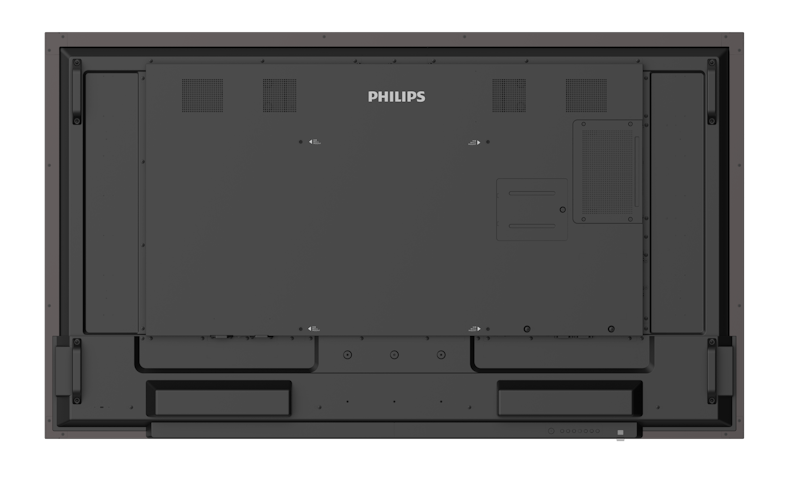

Wall Mount	400(H)x400(V), M8
Set Width	1494.30 mm
Set Depth	80.2 mm (D@wall mount)/106.8 mm (D@speaker cover) mm
Set Width (inch)	58.83
Smart Insert mount	100 mm x 100 mm, 6 x M4L6
Set Depth (inch)	3.16 (D@wall mount)/4.20 (D@speaker cover)
Product weight (lb)	96.12 lb
Product weight	43.6 kg
Set Height (inch)	34.23
Bezel width	17.8 mm(even)

Internal Player

Storage	32 GB eMMc
Memory	4 GB RAM
CPU	MTK5680
GPU	DDR4 4 GB
Wi-Fi	AP(WC0SR2511-88112BU)
	STA(WCT5GM2511MT7668AU)

Sound

Built-in speakers	2 x 20 W RMS

Power

Energy Label Class	G
Consumption (Typical)	175 W
Power Saving Features	Smart Power
Consumption (Max)	350 W
Standby power consumption	<0.5 W
Mains power	100 ~ 240 VAC, 50 ~ 60 Hz
