D-Line

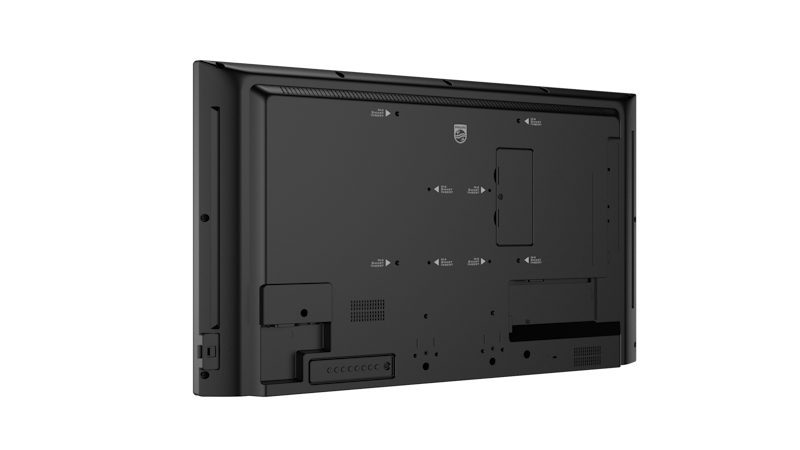

32BDL4650D/00

The Philips D-Line is designed to engage your audience and delight customers. Powered by Android 11 for easy software integrations, this versatile display is suitable for impact in any setting.

Get a quote

Technical Specifications

Connectivity

Audio output	3.5 mm jack
Video output	DisplayPort 1.4 (x 1)
Video input	DVI-I (x 1)
	DisplayPort 1.4 (x 1)
	HDMI 2.0 (x 2)
	USB 3.0 (x 2)
	VGA (via DVI)
Other connections	4G/LTE antenna connectors
	Micro USB (x 1) (OTG)
	USB 2.0 (x 1)
Audio input	3.5 mm jack
External control	RJ45
	RS232C (in/out) 2.5 mm jack
	IR (in/out) 3.5 mm jack

Convenience

Placement	Landscape (24/7)
	Portrait (24/7)
Screen-saving functions	Pixel Shift
Energy-saving functions	Smart Power
Network controllable	RS232
	External 4G mPCIe slot
	RJ45
Tiled Matrix	Up to 10 x 15
Signal loop through	RS232
	IR Loop through
	DisplayPort
Keyboard control	Hidden
	Lockable

Accessories

Included Accessories	RS232 daisy-chain cable
	Philips logo (x 1)
	USB Cover (x 1)
	Screws
	AC Power Cord
	AC Switch Cover
	IR sensor cable (1.8 m) (x 1)
	Quick start guide
	Remote control and AAA batteries
	RS232 cable
	Wire Clamper (x 3)

Internal Player

Storage	32 GB eMMc
Memory	4 GB RAM
GPU	ARM Mali-T860 MP4
CPU	2 x A72 + 4 x A53

Dimensions

Set Height	425.4 mm
Wall Mount	100 (H) x 100 (V) mm / 200 (H) x 200 (V) mm, M4
Set Width	726.5 mm
Set Depth	65.1 (@Wall mount)/ 69.1 (@AC) mm
Set Width (inch)	28.60 inch
Product weight (lb)	12.57 lb
Product weight	5.7 kg
Bezel width	11.9 mm (T/L/R), 17.2 mm (B)
Set Height (inch)	16.75 inch
Set Depth (inch)	2.56 (@Wall mount)/ 2.72 (@AC) inch

Sound

Built-in speakers	2 x 10 W RMS

Power

Energy Label Class	G
Consumption (Typical)	38 W
Mains power	100 ~ 240 VAC, 50 ~ 60 Hz
Standby power consumption	<0.5 W

Multimedia Applications

USB Playback Picture	BMP
	JPEG
	PNG
USB Playback Video	MPEG
	H.263
	H.264
	H.265
	AVI
	MP4
	MPEG4
	VP8
	VP9
	WEBM
USB Playback Audio	AAC
	HEAAC
	MPEG

Miscellaneous

On-Screen Display Languages	English
	French
	German
	Spanish
	Polish
	Turkish
	Russian
	Italian
	Simplified Chinese
	Traditional Chinese
	Arabic
	Japanese
	Danish
	Dutch
	Finnish
	Norwegian
	Portuguese
	Swedish
Regulatory approvals	CE
	CCC
	RoHS
	CB
	EMF
	FCC, Class A
	EnergyStar 8.0
	UL
Warranty	3 year warranty

Picture/Display

Pixel pitch	0.36375 (H) x 0.36375 (V) mm
Diagonal screen size (metric)	81.28 cm
Brightness	400 cd/m²
Panel resolution	1920 x 1080p
Picture enhancement	3/2 - 2/2 motion pull down
	Motion compens. deinterlacing
	Dynamic contrast enhancement
	Progressive scan
Optimum resolution	1920 x 1080 @ 60 Hz
Display colours	16.7 Million
Dynamic contrast ratio	500,000:1
Viewing angle (horizontal)	178 degree
Aspect ratio	16:9
Response time (typical)	8 ms
Operating system	Android 11
Viewing angle (vertical)	178 degree
Contrast ratio (typical)	1200:1
Haze	25%
Diagonal screen size (inch)	32 inch
Panel technology	ADS

Operating conditions

Temperature range (storage)	-20 ~ 60 °C
Altitude	0 ~ 3000 m
Humidity range (operation)[RH]	20–80% RH (No condensation)
Temperature range (operation)	0 ~ 40 °C
Humidity range (storage) [RH]	5–95% RH (No condensation)
MTBF	50,000 hour(s)

Supported Display Resolution

Video formats	1080i, 50, 60 Hz
	576i, 50 Hz
	576p, 50 Hz
	480p, 60 Hz
	480i, 60 Hz
	1080p, 50, 60 Hz
	720p, 50,60 Hz
Computer formats	1920 x 1080, 60 Hz
	1024 x 768, 60 Hz
	1280 x 1024, 60 Hz
	1280 x 720, 60 Hz
	1440 x 900, 60 Hz
	1600 x 900, 60 Hz
	1680 x 1050, 60 Hz
	640 x 480, 60 Hz
	800 x 600, 60 Hz
