D-Line

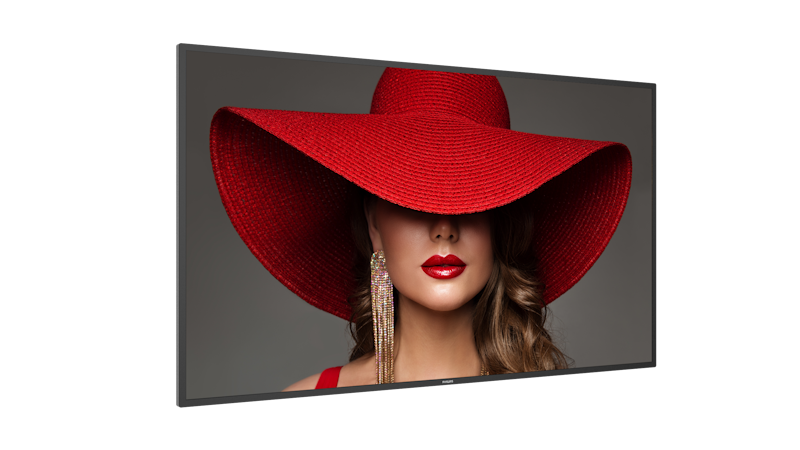

55BDL4650D/00

The Philips D-Line is designed to engage your audience and delight customers. Powered by Android 11 for easy software integrations, this versatile display is suitable for impact in any setting.

Get a quote

Technical Specifications

Connectivity

Video output	DisplayPort 1.4 (x 1)
Wi-Fi	Wi-Fi 6 + Bluetooth 5.2 (slide-in module)
Audio output	3.5 mm jack
Video input	DVI-I (x 1)
	DisplayPort 1.4 (x 1)
	HDMI 2.0 (x 2)
	USB 3.0 (x 2)
	VGA (via DVI)
Audio input	3.5 mm jack
Other connections	4G/LTE antenna connectors
	Micro USB (x 1) (OTG)
	USB 2.0 (x 1)
External control	RJ45
	RS232C (in/out) 2.5 mm jack
	IR (in/out) 3.5 mm jack

Convenience

Wi-Fi protocol	a b g n, 802.11 ax, 802.11 ac
Screen-saving functions	Pixel Shift
Energy-saving functions	Smart Power
Placement	Landscape (24/7)
	Portrait (24/7)
Tiled Matrix	Up to 10 x 15
Network controllable	RS232
	External 4G mPCIe slot
	RJ45
	Wi-Fi
Signal loop through	IR Loop through
	DisplayPort
	RS232
Keyboard control	Hidden
	Lockable

Accessories

Included Accessories	RS232 daisy-chain cable
	Philips logo (x 1)
	AC Switch Cover
	USB Cover (x 1)
	Screws
	AC Power Cord
	IR sensor cable (1.8 m) (x 1)
	Quick start guide
	Remote control and AAA batteries
	RS232 cable
	Wi-Fi module
	Wire Clamper (x 3)

Internal Player

Storage	32 GB eMMc
Memory	4 GB RAM
GPU	ARM Mali-T860 MP4
CPU	2 x A72 + 4 x A53

Dimensions

Wall Mount	400 (H) x 400(V) mm, M6
Set Height	712.6 mm
Set Width	1241.8 mm
Set Depth	63.6 mm
Set Width (inch)	48.89 inch
Set Depth (inch)	2.50 inch
Bezel width	13.9 mm (Even bezel)
Set Height (inch)	28.20 inch
Product weight	16.6 kg
Product weight (lb)	36.60 lb

Sound

Built-in speakers	2 x 10 W RMS

Power

Energy Label Class	G
Consumption (Typical)	112 W
Standby power consumption	0.5 W
Mains power	100 ~ 240 VAC, 50 ~ 60 Hz

Multimedia Applications

USB Playback Video	MPEG
	H.263
	H.264
	H.265
	AVI
	MP4
	MPEG4
	VP8
	VP9
	WEBM
USB Playback Picture	BMP
	JPEG
	PNG
USB Playback Audio	AAC
	HEAAC
	MPEG

Operating conditions

Temperature range (storage)	-20 ~ 60 °C
Humidity range (storage) [RH]	5–95% RH (No condensation)
Humidity range (operation)[RH]	20–80% RH (No condensation)
Altitude	0 ~ 3000 m
Temperature range (operation)	0 ~ 40 °C
MTBF	50,000 hour(s)

Miscellaneous

On-Screen Display Languages	English
	French
	German
	Spanish
	Polish
	Turkish
	Russian
	Italian
	Simplified Chinese
	Traditional Chinese
	Arabic
	Japanese
	Danish
	Dutch
	Finnish
	Norwegian
	Portuguese
	Swedish
Regulatory approvals	CE
	RoHS
	CB
	FCC, Class A
	CCC
	EMF
	EnergyStar 8.0
	UL
Warranty	3 year warranty

Picture/Display

Diagonal screen size (metric)	138.7 cm
Panel resolution	3840 x 2160
Brightness	500 cd/m²
Pixel pitch	0.315 × 0.315 mm
Optimum resolution	3840 x 2160 @ 60 Hz
Picture enhancement	3/2 - 2/2 motion pull down
	Dynamic contrast enhancement
	Motion compens. deinterlacing
	Progressive scan
Display colours	1.07 Billion
Aspect ratio	16:9
Viewing angle (horizontal)	178 degree
Dynamic contrast ratio	500,000:1
Response time (typical)	8 ms
Panel technology	VA
Haze	25%
Contrast ratio (typical)	5000:1
Viewing angle (vertical)	178 degree
Diagonal screen size (inch)	54.6 inch
Operating system	Android 11

Supported Display Resolution

Video formats	1080i, 50, 60 Hz
	576p, 50 Hz
	576i, 50 Hz
	480p, 60 Hz
	480i, 60 Hz
	1080p, 50, 60 Hz
	720p, 50,60 Hz
	2160p, 50, 60 Hz
Computer formats	1920 x 1080, 60 Hz
	1680 x 1050, 60 Hz
	1600 x 900, 60 Hz
	1024 x 768, 60 Hz
	1280 x 1024, 60 Hz
	1280 x 720, 60 Hz
	1440 x 900, 60 Hz
	3840 x 2160, 30, 60 Hz
	640 x 480, 60 Hz
	800 x 600, 60 Hz
