D-Line

50BDL4550D/00

Energy Label: g

Amaze your guests with a smarter, faster signage display. With integrated WiFi and designed for running Android apps, it's the next evolution in signage solutions

Get a quote

Made for results

  • undefined
  • undefined
  • undefined
  • undefined
  • undefined
  • undefined

D-Line

Bigger impact


Powered by Android

With Android on your professional display you'll enjoy a faster, richer and guest-friendly interface. It's your launch control to a wealth of dedicated hospitality services, applications and so much more. There's an easy-to-navigate menu with direct links to your favourite apps.

Discover Android

Internal memory

Save and play content without the need for a permanent external player. Your Philips professional display has an internal memory, which allows you to upload media into the display for instant playback. The internal memory also functions as a cache for online streaming.


Proof of Play

Be sure your Android-powered Philips professional display is showing the right content-even when you're not there. When playing content via the embedded media player, you can set up your display to take automatic screenshots at regular intervals. Screenshots are stored on the display's internal memory, and you can choose to receive them via email.


FailOver

From waiting room to meeting room, never show a blank screen. FailOver lets your Philips professional display switch automatically between primary and secondary inputs, ensuring that content keeps playing even if the primary source goes down. Simply set a list of alternative inputs to be sure your business is always on.


Smart Power

The backlight intensity can be controlled and pre-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.

CMND

Optimise your on-screen content with the PPDS exclusive CMND platform. Products that feature CMND put you in total control with powerful content creation, advanced system connectivity and pro-grade deployment through an easy to use interface.

CMND

CMND & Create

Take control of your content with CMND and Create. A drag-and-drop interface makes it simple to publish your own content, whether it's a daily specials board or branded corporate information. Preloaded templates and integrated widgets ensure that your stills, text and video will be up and running in no time.


CMND & Control

Run your display network over a local (LAN or RF) connection. CMND & Control allows you to perform vital functions like updating software and settings, as well as monitoring display status. Whether you’re in charge of one display or more, CMND & Control makes managing your fleet easy.


Integrated HTML5 browser

Connect and control your content over the internet with the integrated HTML5 browser. Using the Chromium-based browser, design your content online and connect a single display or your complete network. Show content in both landscape and portrait mode, with full-HD resolution. Streaming content can also be shown in a PIP (picture-in-picture) window. Simply connect the display to the internet using WiFi or with an RJ45 cable, and enjoy your own created playlist


ADS wide-view panel display

Be seen from any angle with ADS wide-view technology. Advanced Super Dimension Switch delivers faster on-display picture processing for smoother content transitions, remarkable image accuracy and superior colour reproduction with 180 degree viewing.


Automatic screenshots

Content is king, and with the automatic screenshot feature, you can make sure that your content is up and running at all times. Screenshots are taken throughout the day, which are then stored in the FTP server. From there, the screenshots can be viewed no matter when, or where you are.

Powerful performance

D-Line delivers versatility and performance designed for impact.


Technical Specifications

Picture/Display

Diagonal screen size (inch)49.5
Diagonal screen size (metric)125.7
Panel resolution3840 x 2160
Optimum resolution3840 x 2160 @ 60 Hz
Brightness500
Contrast ratio (typical)4000:1
Dynamic contrast ratio500,000:1
Aspect ratio16:9
Response time (typical)8
Pixel pitch0.2854 x 0.2854 mm
Display colours1.07 Billion
Viewing angle (horizontal)178
Viewing angle (vertical)178
Picture enhancement3/2 - 2/2 motion pull down
3D Combfilter
Motion compens. deinterlacing
3D MA deinterlacing
Dynamic contrast enhancement
Progressive scan
Operating systemAndroid 8.0
Panel technologyVA

Connectivity

Video inputDisplay Port1.2 (x 1)
DVI-I (x 1)
HDMI 2.0 (x 2)
USB 2.0 (x 2)
Video outputDisplayPort 1.2 (x 1)
HDMI 2.0 (x 1)
Audio input3.5 mm jack
Audio output3.5 mm jack
External controlRJ45
RS232C (in/out) 2.5 mm jack
IR (in/out) 3.5 mm jack
Wi-Fidual aerial 2,4Ghz and 5Ghz
4G/LTE antenna connectorsmPCIe

Supported Display Resolution

Computer formats1920 x 1080, 60 Hz
1024 x 768, 60 Hz
1280 x 1024, 60 Hz
1280 x 720, 60 Hz
1440 x 900, 60 Hz
1600 x 900, 60 Hz
1680 x 1050, 60 Hz
3840 x 2160, 30, 60 Hz
640 x 480, 60 Hz
800 x 600, 60 Hz
Video formats1080i, 50, 60 Hz
576i, 50 Hz
576p, 50 Hz
480p, 60 Hz
480i, 60 Hz
1080p, 50, 60 Hz
2160p, 24, 30, 60 Hz
720p, 50,60 Hz

Dimensions

Set Width1128.4
Set Height649.0

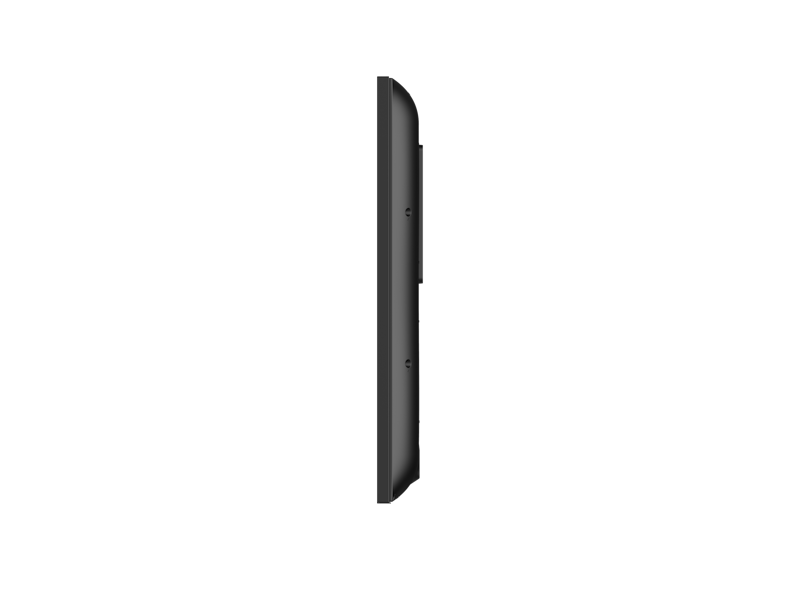

Set Depth63.5
Set Width (inch)44.43
Set Height (inch)25.55
Set Depth (inch)2.50
Bezel width14.9 mm (Even bezel)
Product weight (lb)32.52
Product weight14.75

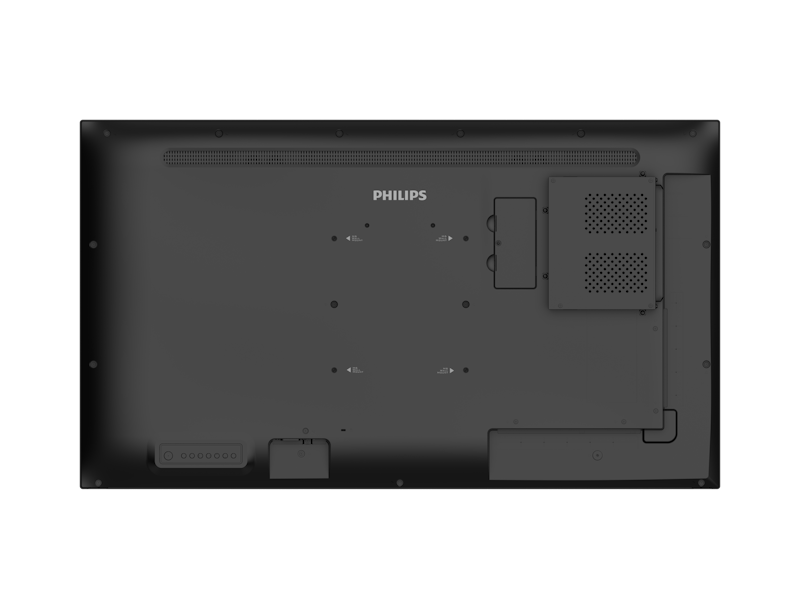

Wall Mount400 (H) x 400 (V) mm, M6

Convenience

PlacementLandscape (24/7)
Portrait (24/7)
Tiled MatrixUp to 10 x 15
Keyboard controlHidden
Lockable
Signal loop throughRS232
IR Loop through
DisplayPort
HDMI
Network controllableRS232
Energy-saving functionsSmart Power
Screen-saving functionsPixel Shift, Low Bright
WiFi protocola b g n, 802.1x

Power

Standby power consumption<0.5 W
Mains power100 ~ 240 VAC, 50 ~ 60 Hz
Consumption (Typical)100
Consumption (Max)132 W
Energy Label ClassG

Operating conditions

Temperature range (operation)0 ~ 40
Temperature range (storage)-20 ~ 60
Altitude0 ~ 3000 m
MTBF50,000
Humidity range (operation)[RH]20–80% RH (No condensation)
Humidity range (storage) [RH]5–95% RH (No condensation)

Sound

Built-in speakers2 x 10 W RMS

Accessories

Included accessoriesQuick start guide
RS232 cable
AC Power Cord
IR sensor cable (1.8 M)
Remote Control and AAA Batteries
Included AccessoriesRS232 daisy-chain cable
Philips logo (x 1)
AC Switch Cover
USB Cover (x 1)
Screws
StandBM05922(Optional)

Multimedia Applications

USB Playback AudioAAC
HEAAC
MPEG
USB Playback PictureBMP
JPEG
PNG
USB Playback VideoMPEG
H.263
H.264
H.265

Miscellaneous

On-Screen Display LanguagesEnglish
French
German
Spanish
Polish
Turkish
Russian
Italian
Simplified Chinese
Traditional Chinese
Arabic
Japanese
Danish
Dutch
Finnish
Norwegian
Portuguese
Swedish
Regulatory approvalsCE
CCC
RoHS
BSMI
CB
VCCI
CU
EMF
EnergyStar 8.0
ETL
FCC, Class A
PSB
Warranty3 year warranty

Internal Player

CPU2 x A53 + 2 x A73
GPUARM Mali G51
Memory3 GB DDR
Storage32 GB eMMc
