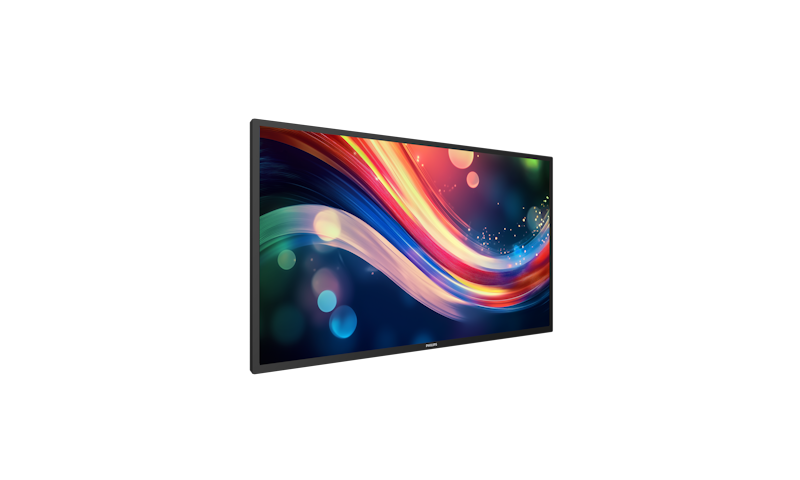

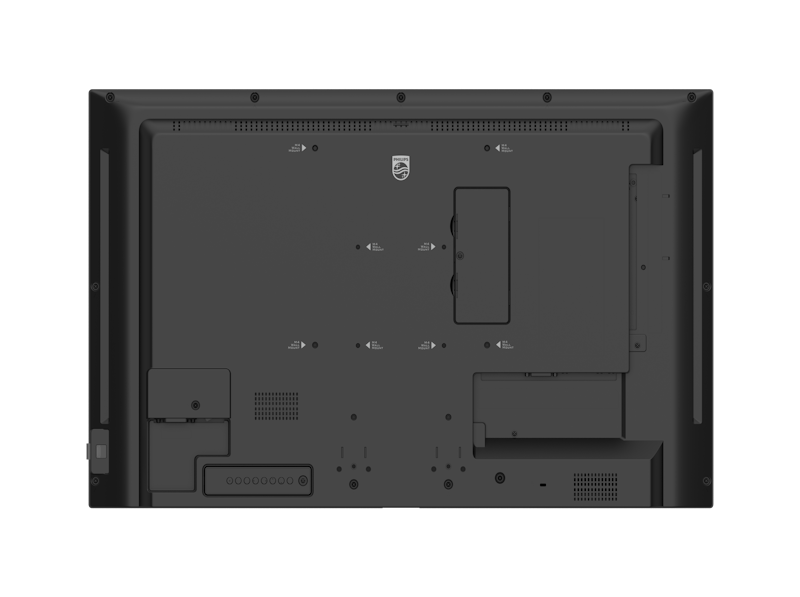

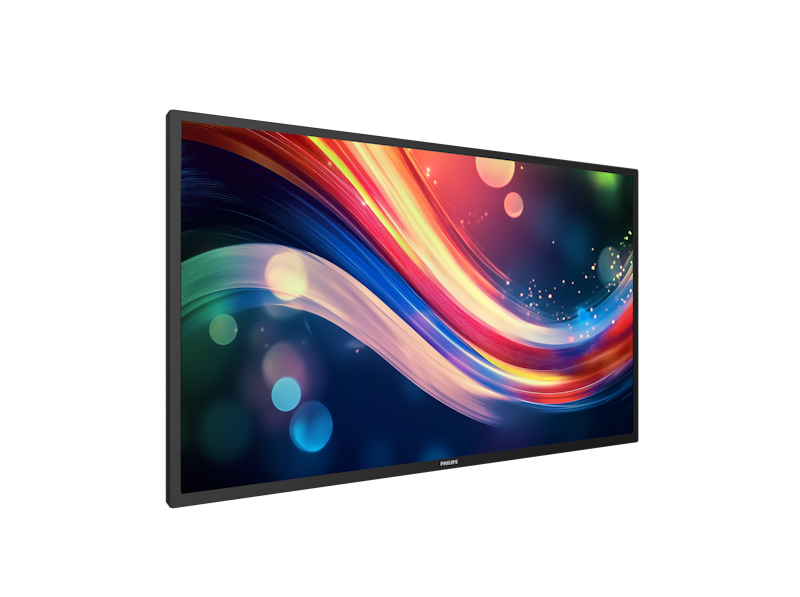

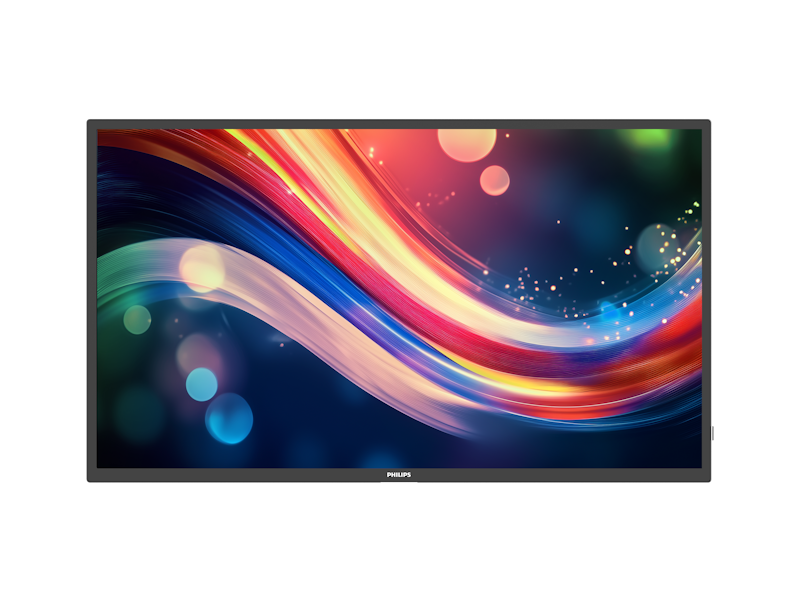

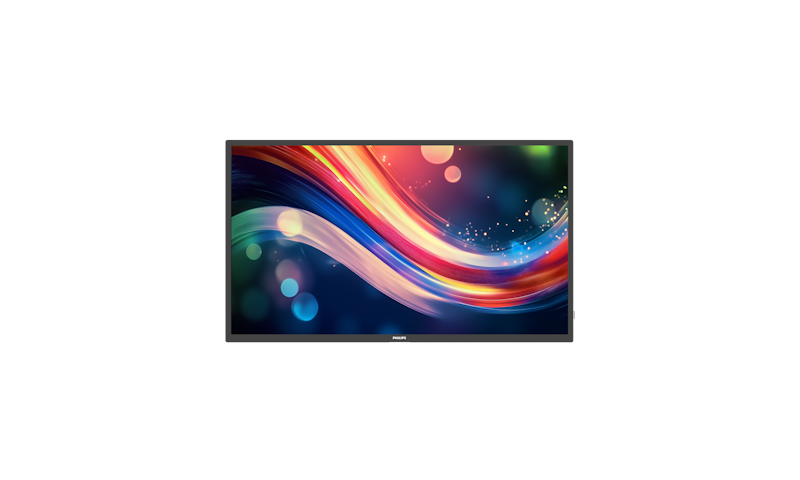

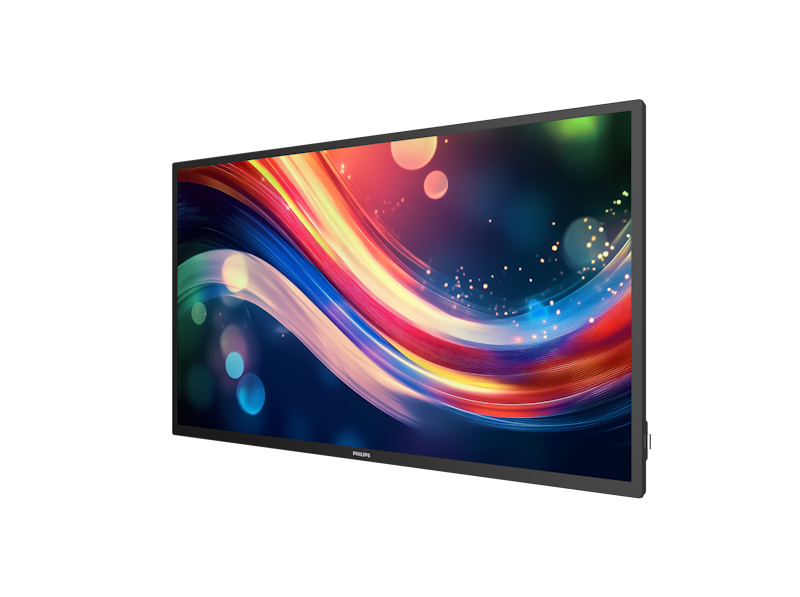

Q-Line

32BDL4050Q/00

Inform and enthral with Philips Signage 4050 Q-Line. UHD resolution is matched with enhanced brightness and high haze, and the efficiency of the tried and tested Android 10 SoC. Wave-ready for remote management, putting you in full control.

Get a quote

Technical Specifications

Connectivity

Other connections	micro SD
Audio output	3.5mm jack
Video input	HDMI 2.0 (x2)
	USB 2.0 (x2)
	DVI-I (x 1)
	USB 3.0 (x2)
Audio input	3.5 mm jack
External control	RJ45
	RS232C (in/out) 2.5 mm jack
	IR (in/out) 3.5 mm jack

Convenience

Energy saving functions	Smart Power
Tiled Matrix	Up to 3 x 3
Remote control signal	Lockable
Signal loop through	RS232
	IR Loopthrough
Placement	Landscape (24/7)
	Portrait (24/7)
Network controllable	RS232
	RJ45
Keyboard control	Lockable
	Hidden

Accessories

Included Accessories	RS232 daisy-chain cable
	Philips logo (x1)
	AC Power Cord
	Quick start guide
	Remote control & AAA batteries
	RS232 cable
	USB cover and screws

Dimensions

Set Width	726.5 mm
Set Height	425.4 mm
Product weight	5.7 kg
Set Depth (inch)	2.72 (D@Handle) / 2.56 (D@Wall mount inch
Wall Mount	100 mm x 100 mm, 200 mm x 200 mm, M4
Product weight (lb)	12.57 lb
Set Width (inch)	28.6 inch
Set Height (inch)	16.75 inch
Bezel width	11.9 mm (L/R/T) 17.2 (B)
Set Depth	69.1(D@Handle) / 65.1(D@Wall mount) mm

Internal Player

Memory	16GB
	3GB DDR
GPU	G52 MC1
CPU	Quad Core Cortex A55

Sound

Built-in speakers	2 x 10W RMS

Power

Standby power consumption	<0.5 W
Mains power	100 - 240V~, 50-60Hz, 1.5A
Power Saving Features	Smart Power
Energy Label Class	G

Multimedia Applications

USB Playback Picture	JPEG
	PNG
	BMP
	WEBP
USB Playback Video	MPEG 1/2 (1080p 60Hz)
	MPEG 4 (1080p 60Hz)
	H.263 (1080p 60Hz)
	H.264 (4K2K 60Hz)
	H.265 (4K2K 60Hz)
	VP8 (1080p 60Hz)
	VP9 (4K2K 60Hz)
USB Playback Audio	AAC
	HEAAC
	MPEG 1/2/2.5 Layer 3
	MPEG 1/2 Layer 1
	MPEG 1/2 Layer 2

Operating conditions

Humidity range (operation)[RH]	20 ~ 80% RH (No condensation)
Humidity range (storage) [RH]	5 ~ 95% RH (No condensation)
MTBF	50,000 hour(s)
Altitude	0 ~ 3000 m
Temperature range (storage)	-20 ~ 60 °C
Temperature range (operation)	0 ~ 40 °C

Miscellaneous

On-Screen Display Languages	English
	French
	German
	Italian
	Polish
	Turkish
	Russian
	Simplified Chinese
	Spanish
	Traditional Chinese
	Arabic
	Japanese
Warranty	3 year warranty
Regulatory approvals	CB
	CE
	FCC, Class A
	VCCI
	RoHS
	UL

Picture/Display

Picture enhancement	3/2 - 2/2 motion pull down
	Dynamic contrast enhancement
	Progressive scan
Response time (typical)	8 ms
Viewing angle (horizontal)	178 degree
Contrast ratio (typical)	1200:1
Viewing angle (vertical)	178 degree
Aspect ratio	16:9
Optimum resolution	1920 x 1080 @ 60 Hz
Dynamic contrast ratio	500,000:1
Haze	25%
Operating system	Android 10
Diagonal screen size (inch)	31.5 inch
Diagonal screen size (metric)	80 cm
Panel resolution	1920x1080p
Display colors	16.7 Million
Panel technology	ADS
Pixel pitch	0.36375 x 0.36375 mm
Brightness	400 cd/m²

Supported Display Resolution

Computer formats	720 x 400, 70Hz
	640 x 480, 60,67,75Hz
	800 x 600, 60Hz
	832 x 624, 75Hz
	1024 x 768, 60Hz
	1152 x 870, 75Hz
	1280 x 720, 60Hz
	1920 x 1080, 60Hz
	1680 x 1050, 60Hz
	3840 x 2160, 30, 60Hz
Video formats	480i, 60Hz
	480p, 60Hz
	576p, 50Hz
	576i, 50Hz
	720p, 50, 60Hz
	1080i, 50, 60Hz
	1080p, 50, 60Hz
	3840 x 2160, 30, 60Hz
