Q-Line

55BDL3511Q/00

Energy Label: g

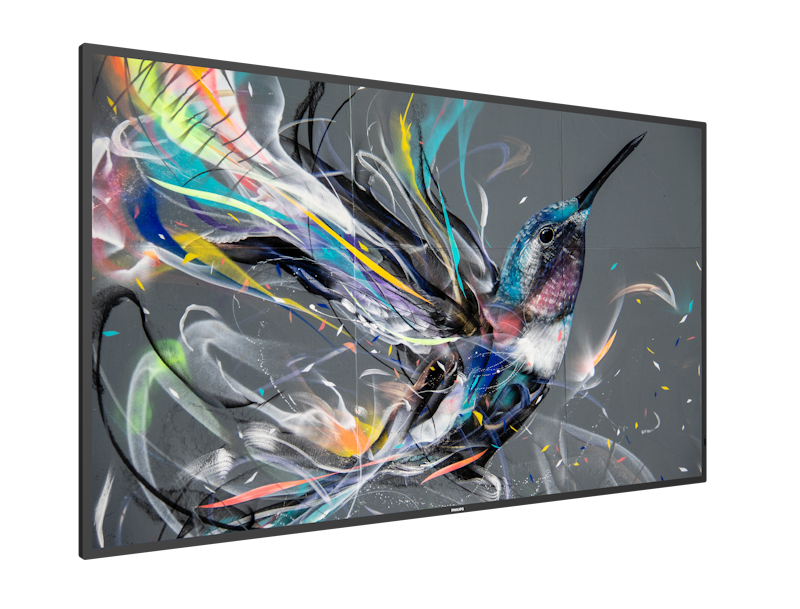

Inform and enthrall with a Philips Q-Line Professional Ultra HD Display. This reliable solution can be up and running as quickly as you need.

Technical Specifications

Connectivity

Audio output	3.5mm jack
Video input	DVI-I (x 1)
	HDMI 2.0 (x2)
	USB 2.0 (x2)
Audio input	3.5 mm jack
External control	IR (in/out) 3.5 mm jack
	RJ45
	RS232C (in/out) 2.5 mm jack

Convenience

Remote control signal	Lockable
Start-up window	enable / disable Philips logo
Tiled Matrix	Up to 10 x 15
Energy saving functions	Smart Power
Start-up	Switch on delay
	Switch on status
	Boot on source
Network controllable	RS232
	RJ45
Placement	Landscape (18/7)
	Portrait (18/7)
Signal loop through	RS232
	IR Loopthrough
Keyboard control	Hidden
	Lockable

Accessories

Included Accessories	IR sensor cable (1.8 m) (x1)
	Philips logo (x1)
	AC power cord
	AC Switch Cover
	Quick start guide (x1)
	Remote control & AAA batteries
	RS232 daisy chain cable (x1)
	USB Cover and screw x1
	Wire Clamper (x3)
Stand	BM05922(optional)

Dimensions

Set Height	712.6 mm
Product weight	16.6 kg
Set Width	1241.8 mm
Product weight (lb)	36.60 lb
Wall Mount	400mm x 400mm , M6
Set Depth (inch)	2.50 inch
Set Height (inch)	28.06 inch
Bezel width	13.9 mm (Even bezel)
Set Width (inch)	48.89 inch
Set Depth	63.6 mm

Sound

Built-in speakers	2 x 10W RMS

Power

Standby power consumption	<0.5 W
Power Saving Features	Smart Power
Mains power	100 ~ 240 VAC
Consumption (Max)	185 W
Consumption (Typical)	140 W
Energy Label Class	G

Multimedia Applications

USB Playback Video	H.264
	JPEG
	MPEG
	WMV3
USB Playback Picture	BMP
	JPEG
	PNG
USB Playback Audio	AAC
	WMA
	MPEG
	HEAAC

Operating conditions

Humidity range (operation)[RH]	20 ~ 80% RH (No condensation)
Altitude	0 ~ 3000 m
Humidity range (storage) [RH]	5 ~ 95% RH (No condensation)
MTBF	50,000 hour(s)
Temperature range (storage)	-20 ~ 60 °C
Temperature range (operation)	0 ~ 40 °C

Miscellaneous

On-Screen Display Languages	Arabic
	English
	French
	German
	Italian
	Japanese
	Polish
	Russian
	Spanish
	Simplified Chinese
	Turkish
	Traditional Chinese
Regulatory approvals	CE
	FCC, Class A
	CB
	BSMI
	EPA
	VCCI
	CU
	ETL
	EMF
	PSB
Warranty	3 year warranty

Picture/Display

Response time (typical)	9 ms
Viewing angle (vertical)	178 degree
Contrast ratio (typical)	1300:1
Viewing angle (horizontal)	178 degree
Diagonal screen size (inch)	54.6 inch
Dynamic contrast ratio	500,000:1
Haze	3%
Optimum resolution	3840 x 2160 @ 60 Hz
Aspect ratio	16:9
Display colors	1.07 Billion
Diagonal screen size (metric)	138.7 cm
Panel resolution	3840 x 2160
Pixel pitch	0.315 xx 0.315 mm
Brightness	400 cd/m²
Panel technology	IPS
Clinical image	D-Image preset (dicom part 14 compatible)

Supported Display Resolution

Computer formats	640 x 480, 60, 67, 72, 75Hz
	720 x 400, 70Hz
	800 x 600, 56, 60, 72, 75Hz
	832 x 624, 75Hz
	1024 x 768, 60, 70, 75Hz
	1152 x 864, 75Hz
	1152 x 870, 75Hz
	1280 x 720, 60Hz
	1280 x 800, 60Hz
	1280 x 1024, 60Hz
	1440 x 900, 60Hz
	1600 x 1200, 60Hz
	1680 x 1050, 60Hz
	1920 x 1080, 60Hz
Video formats	480i, 60Hz
	480p, 60Hz
	576p, 50Hz
	576i, 50Hz
	720p, 60Hz
	1080i, 50, 60Hz
	1080p, 50, 60Hz
	3840 x 2160, 30Hz
	3840 x 2160, 60Hz
