Q-Line

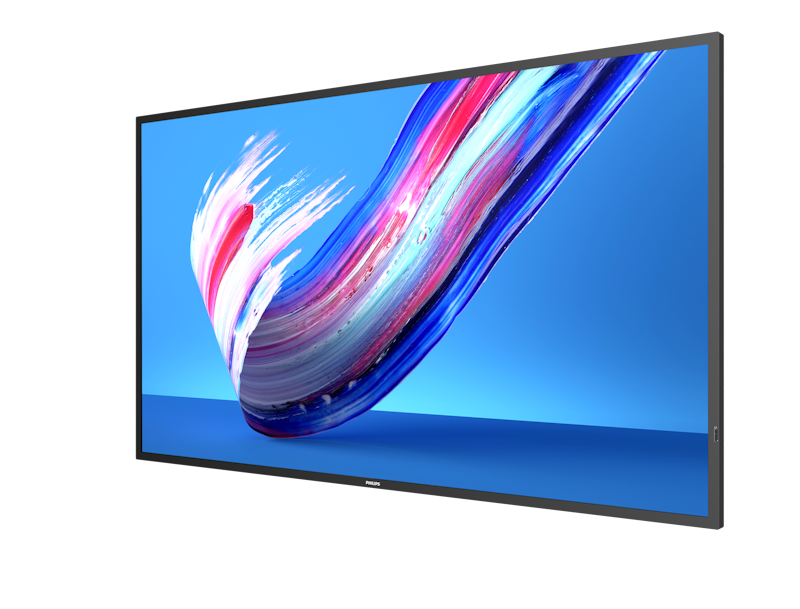

50BDL3650Q/00

Inform and enthral with a Philips Q-Line 4K Ultra HD digital display. This reliable, easy-to-install, Android powered signage solution is Wave-ready for remote management, putting you in full control, any time, anywhere.

Get a quote

Technical Specifications

Connectivity

Other connections	micro SD
Audio output	3.5mm jack
Video input	HDMI 2.0 (x2)
	USB 2.0 (x2)
	DVI-I (x 1)
	USB 3.0 (x1)
Audio input	3.5 mm jack
External control	RJ45
	RS232C (in/out) 2.5 mm jack
	IR (in/out) 3.5 mm jack

Convenience

Remote control signal	Lockable
Energy saving functions	Smart Power
Tiled Matrix	Up to 3 x 3
Signal loop through	RS232
	IR Loopthrough
Network controllable	RS232
	RJ45
Keyboard control	Lockable
	Hidden
Placement	Landscape (18/7)
	Portrait (18/7)

Accessories

Included Accessories	IR sensor cable (1.8 m) (x1)
	RS232 daisy-chain cable
	Philips logo (x1)
	AC Power Cord
	AC Switch Cover
	Quick start guide
	Remote control & AAA batteries
	RS232 cable
	USB cover and screws
	Wire Clamper (x3)

Dimensions

Set Height	649.0 mm
Product weight	14.75 kg
Set Width	1128.4 mm
Product weight (lb)	32.52 lb
Set Depth (inch)	2.50 inch
Wall Mount	400 mm x 400 mm, M6
Set Width (inch)	44.43 inch
Set Height (inch)	25.55 inch
Bezel width	14.9 mm (Even bezel)
Set Depth	63.5 mm

Internal Player

Memory	16GB
	3GB DDR
GPU	G52 MC1
CPU	Quad Core Cortex A55

Sound

Built-in speakers	2 x 10W RMS

Power

Standby power consumption	<0.5W
Power Saving Features	Smart Power
Consumption (Typical)	97 W
Mains power	100 - 240V~, 50/60Hz
Energy Label Class	G

Multimedia Applications

USB Playback Video	MPEG
	H.264
	H.263
	H.265
	AVI
	MP4
	VP8
USB Playback Picture	JPEG
	BMP
	PNG
USB Playback Audio	AAC
	HEAAC
	MPEG

Operating conditions

Altitude	0 ~ 3000 m
Humidity range (storage) [RH]	5 ~ 95% RH (No condensation)
MTBF	50,000 hour(s)
Humidity range (operation)[RH]	20 ~ 80% RH (No condensation)
Temperature range (storage)	-20 ~ 60 °C
Temperature range (operation)	0 ~ 40 °C

Miscellaneous

On-Screen Display Languages	English
	French
	German
	Italian
	Polish
	Russian
	Spanish
	Turkish
	Simplified Chinese
	Traditional Chinese
	Arabic
	Japanese
Regulatory approvals	CE
	FCC, Class A
	VCCI
	CB
	RoHS
	UL
Warranty	3 year warranty

Picture/Display

Picture enhancement	3/2 - 2/2 motion pull down
	Dynamic contrast enhancement
	Progressive scan
Response time (typical)	8 ms
Viewing angle (horizontal)	178 degree
Viewing angle (vertical)	178 degree
Contrast ratio (typical)	4000:1
Optimum resolution	3840 x 2160 @ 60 Hz
Operating system	Android 10
Diagonal screen size (inch)	49.5 inch
Aspect ratio	16:9
Haze	2%
Dynamic contrast ratio	500,000:1
Display colors	1.07 Billion
Panel resolution	3840 x 2160
Diagonal screen size (metric)	125.7 cm
Panel technology	VA
Pixel pitch	0.2854 x 0.2854 mm
Brightness	400 cd/m²

Supported Display Resolution

Computer formats	1920 x 1080, 60Hz
	1680 x 1050, 60Hz
	1600 x 1200, 60Hz
	1440 x 900, 60Hz
	1280 x 1024, 60Hz
	1280 x 800, 60Hz
	1280 x 720, 60Hz
	1024 x 768, 60, 70, 75Hz
	3840 x 2160, 60Hz
Video formats	1080p, 50, 60Hz
	1080i, 50, 60Hz
	720p, 50,60 Hz
	2160p, 50, 60Hz
