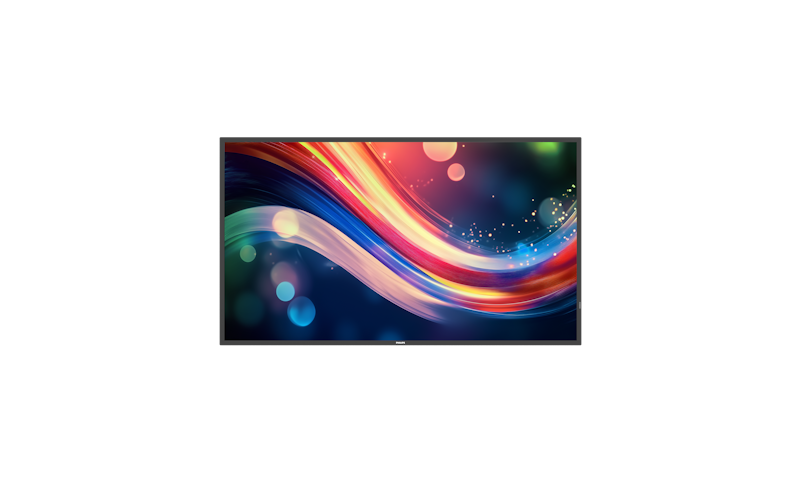

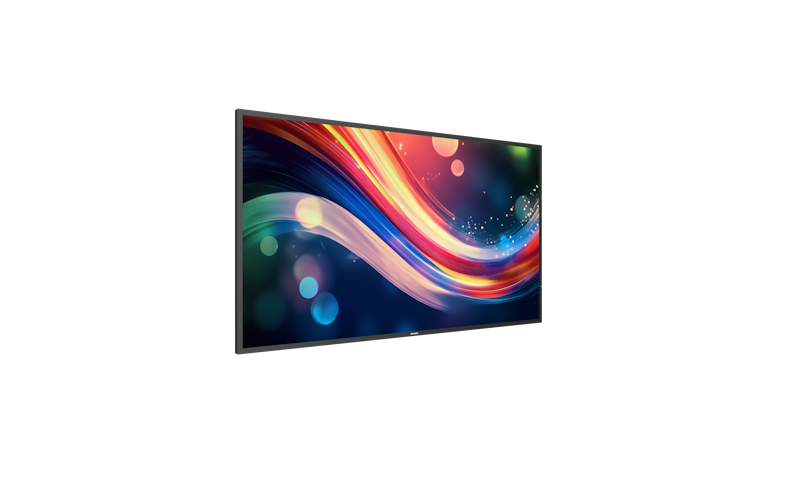

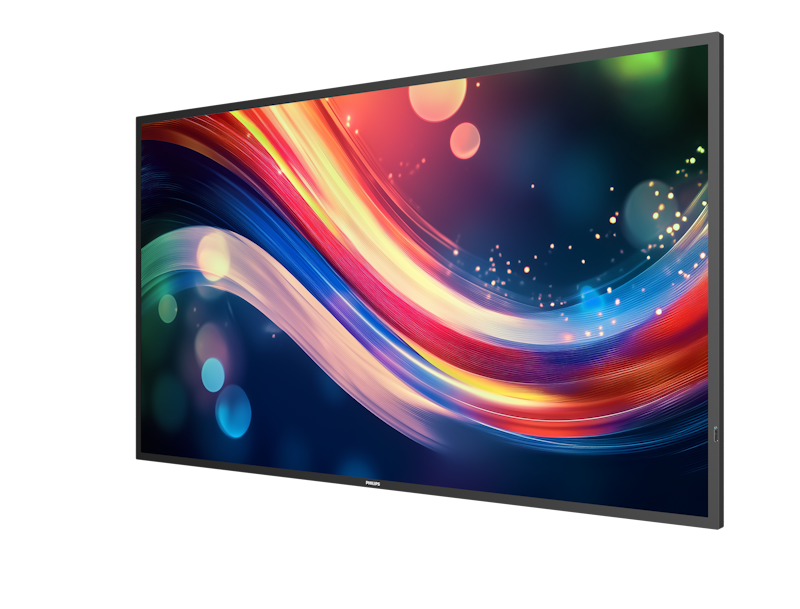

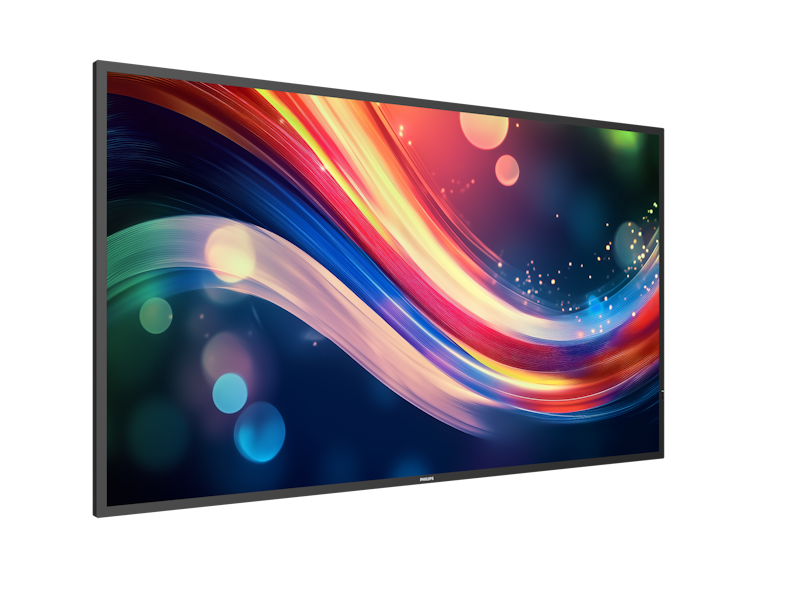

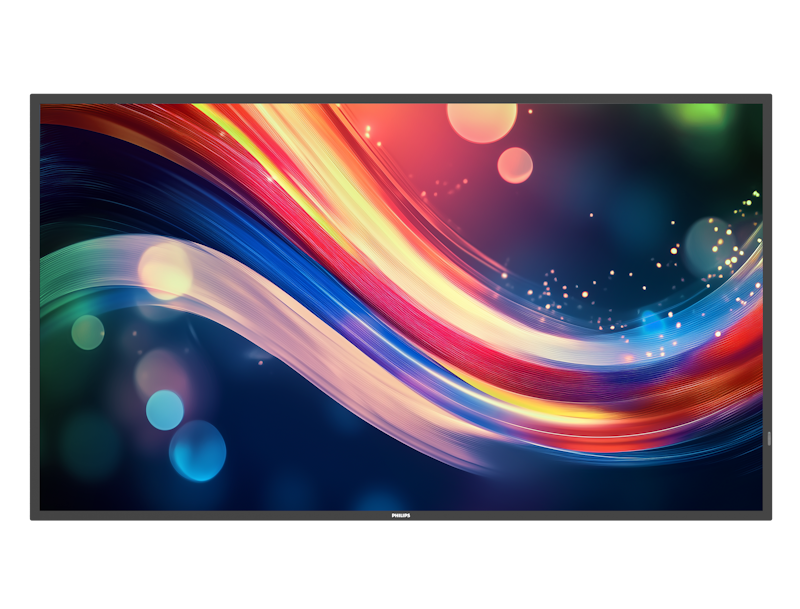

Q-Line

50BDL4050Q/00

Inform and enthral with Philips Signage 4050 Q-Line. UHD resolution is matched with enhanced brightness and high haze, and the efficiency of the tried and tested Android 10 SoC. Wave-ready for remote management, putting you in full control.

Get a quote

Technical Specifications

Connectivity

Audio output	3.5mm jack
Other connections	micro SD
Video input	HDMI 2.0 (x2)
	USB 2.0 (x2)
	DVI-I (x 1)
	USB 3.0 (x1)
Audio input	3.5 mm jack
External control	RJ45
	RS232C (in/out) 2.5 mm jack
	IR (in/out) 3.5 mm jack

Convenience

Tiled Matrix	Up to 3 x 3
Remote control signal	Lockable
Energy saving functions	Smart Power
Network controllable	RS232
	RJ45
Keyboard control	Lockable
	Hidden
Signal loop through	RS232
	IR Loopthrough
Placement	Landscape (24/7)
	Portrait (24/7)

Accessories

Included Accessories	RS232 daisy-chain cable
	Philips logo (x1)
	AC Power Cord
	AC Switch Cover
	Quick start guide
	Remote control & AAA batteries
	RS232 cable
	USB cover and screws

Dimensions

Product weight	14.3 kg
Set Height	649.0 mm
Set Width	1128.4 mm
Product weight (lb)	31.53 lb
Set Depth (inch)	2.50 inch
Wall Mount	400 mm x 400 mm, M6
Set Depth	63.5 mm
Set Width (inch)	44.43 inch
Bezel width	14.9 mm (Even bezel)
Set Height (inch)	25.55 inch

Internal Player

GPU	G52 MC1
Memory	16GB
	3GB DDR
CPU	Quad Core Cortex A55

Sound

Built-in speakers	2 x 10W RMS

Power

Standby power consumption	<0.5W
Mains power	100 - 240V~, 50/60Hz
Power Saving Features	Smart Power
Energy Label Class	G

Multimedia Applications

USB Playback Video	MPEG 1/2 (1080p 60Hz)
	MPEG 4 (1080p 60Hz)
	H.263 (1080p 60Hz)
	H.264 (4K2K 60Hz)
	H.265 (4K2K 60Hz)
	VP8 (1080p 60Hz)
	VP9 (4K2K 60Hz)
USB Playback Picture	JPEG
	PNG
	BMP
	WEBP
USB Playback Audio	AAC
	HEAAC
	MPEG 1/2/2.5 Layer 3
	MPEG 1/2 Layer 1
	MPEG 1/2 Layer 2

Operating conditions

Humidity range (storage) [RH]	5 ~ 95% RH (No condensation)
MTBF	50,000 hour(s)
Humidity range (operation)[RH]	20 ~ 80% RH (No condensation)
Altitude	0 ~ 3000 m
Temperature range (storage)	-20 ~ 60 °C
Temperature range (operation)	0 ~ 40 °C

Picture/Display

Response time (typical)	8 ms
Viewing angle (horizontal)	178 degree
Viewing angle (vertical)	178 degree
Contrast ratio (typical)	4000:1
Picture enhancement	3/2 - 2/2 motion pull down
	Dynamic contrast enhancement
	Progressive scan
Operating system	Android 10
Dynamic contrast ratio	500,000:1
Diagonal screen size (inch)	49.5 inch
Aspect ratio	16:9
Optimum resolution	3840 x 2160 @ 60 Hz
Haze	25%
Panel resolution	3840 x 2160
Display colors	1.07 Billion
Diagonal screen size (metric)	125.7 cm
Pixel pitch	0.2854 x 0.2854 mm
Panel technology	VA
Brightness	500 cd/m²

Miscellaneous

On-Screen Display Languages	English
	French
	German
	Italian
	Polish
	Russian
	Spanish
	Turkish
	Simplified Chinese
	Traditional Chinese
	Arabic
	Japanese
Warranty	3 year warranty
Regulatory approvals	CE
	FCC, Class A
	VCCI
	CB
	RoHS
	UL

Supported Display Resolution

Computer formats	720 x 400, 70Hz
	640 x 480, 60,67,75Hz
	800 x 600, 60Hz
	832 x 624, 75Hz
	1024 x 768, 60Hz
	1152 x 870, 75Hz
	1280 x 720, 60Hz
	1920 x 1080, 60Hz
	1680 x 1050, 60Hz
	3840 x 2160, 30, 60Hz
Video formats	480i, 60Hz
	480p, 60Hz
	576p, 50Hz
	576i, 50Hz
	720p, 50, 60Hz
	1080i, 50, 60Hz
	1080p, 50, 60Hz
	3840 x 2160, 30, 60Hz
