Q-Line

75BDL3511Q/00

Energy Label: g

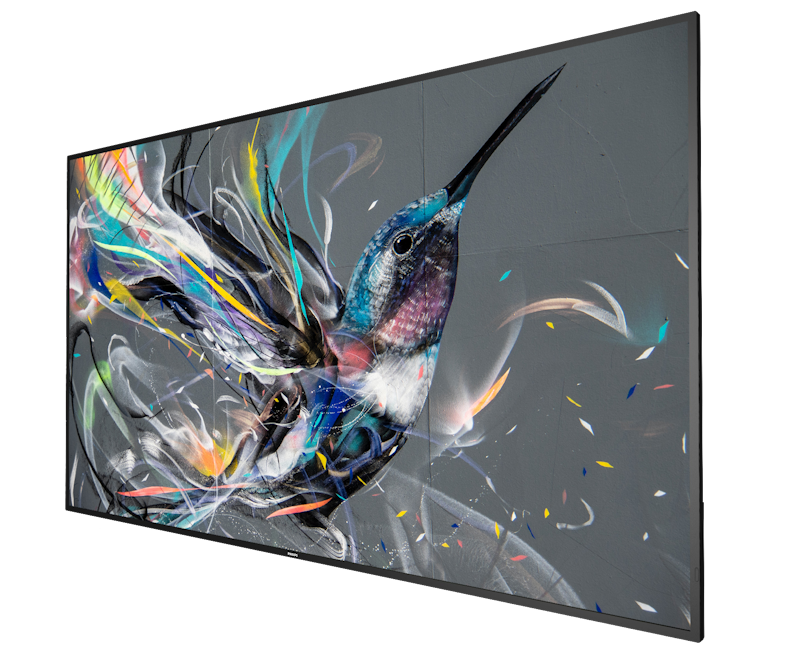

Inform and enthrall with a Philips Q-Line Professional Ultra HD Display. This reliable solution can be up and running as quickly as you need.

Technical Specifications

Connectivity

Other connections	OPS
Audio output	3.5mm jack
Video input	DVI-I (x 1)
	HDMI 2.0 (x3)
	USB 2.0 (x2)
Audio input	3.5 mm jack
External control	IR (in/out) 3.5 mm jack
	RJ45
	RS232C (in/out) 2.5 mm jack

Convenience

Start-up	Switch on delay
	Switch on status
	Boot on source
Tiled Matrix	Up to 10 x 15
Energy saving functions	Smart Power
Remote control signal	Lockable
Start-up window	enable / disable Philips logo
Ease of installation	Smart Insert
Signal loop through	RS232
	IR Loopthrough
Placement	Landscape (18/7)
	Portrait (18/7)
Network controllable	RS232
	RJ45
Keyboard control	Hidden
	Lockable

Accessories

Included Accessories	IR sensor cable (1.8 m) (x1)
	Philips logo (x1)
	AC power cord
	AC Switch Cover
	Quick start guide (x1)
	Remote control & AAA batteries
	RS232 daisy chain cable (x1)
	USB Cover and screw x1
	Wire Clamper (x3)

Dimensions

Set Height	961.7 mm
Set Width	1683.5 mm
Product weight	37..3 kg
Set Depth (inch)	2.74(@ wall mount)/ 3.61(@ handle) inch
Wall Mount	600 x 400 mm, M8
Product weight (lb)	82.23 lb
Bezel width	14.9 mm (Even bezel)
Set Height (inch)	37.86 inch
Set Width (inch)	66.28 inch
Set Depth	69.5mm(D@wall mount) / 91.8mm(D@handle) mm

Sound

Built-in speakers	2 x 10W RMS

Power

Standby power consumption	<0.5W
Consumption (Typical)	180 W
Power Saving Features	Smart Power
Consumption (Max)	320 W
Mains power	100 - 240V~, 50/60Hz
Energy Label Class	G

Multimedia Applications

USB Playback Video	H.264
	JPEG
	MPEG
	WMV3
USB Playback Picture	BMP
	JPEG
	PNG
USB Playback Audio	AAC
	WMA
	MPEG
	HEAAC

Operating conditions

Humidity range (operation)[RH]	20 ~ 80% RH (No condensation)
MTBF	50,000 hour(s)
Altitude	0 ~ 3000 m
Humidity range (storage) [RH]	5 ~ 95% RH (No condensation)
Temperature range (storage)	-20 ~ 60 °C
Temperature range (operation)	0 ~ 40 °C

Miscellaneous

On-Screen Display Languages	Arabic
	English
	French
	German
	Italian
	Japanese
	Polish
	Russian
	Spanish
	Simplified Chinese
	Turkish
	Traditional Chinese
Warranty	3 year warranty
Regulatory approvals	CE
	FCC, Class A
	CB
	BSMI
	EPA
	VCCI
	CU
	ETL
	EMF
	PSB

Picture/Display

Contrast ratio (typical)	1200:1
Response time (typical)	8 ms
Viewing angle (horizontal)	178 degree
Viewing angle (vertical)	178 degree
Haze	1%
Optimum resolution	3840 x 2160 @ 60 Hz
Aspect ratio	16:9
Dynamic contrast ratio	500,000:1
Diagonal screen size (inch)	74.5 inch
Display colors	1.07 Billion
Panel resolution	3840 x 2160
Diagonal screen size (metric)	189.3 cm
Panel technology	IPS
Clinical image	D-Image preset (dicom part 14 compatible)
Brightness	400 cd/m²
Pixel pitch	0.4296 x 0.4296 mm

Supported Display Resolution

Computer formats	640 x 480, 60, 67, 72, 75Hz
	720 x 400, 70Hz
	800 x 600, 56, 60, 72, 75Hz
	832 x 624, 75Hz
	1024 x 768, 60, 70, 75Hz
	1152 x 864, 75Hz
	1152 x 870, 75Hz
	1280 x 720, 60Hz
	1280 x 800, 60Hz
	1280 x 1024, 60Hz
	1440 x 900, 60Hz
	1600 x 1200, 60Hz
	1680 x 1050, 60Hz
	1920 x 1080, 60Hz
Video formats	480i, 60Hz
	480p, 60Hz
	576p, 50Hz
	576i, 50Hz
	720p, 60Hz
	1080i, 50, 60Hz
	1080p, 50, 60Hz
	3840 x 2160, 30Hz
	3840 x 2160, 60Hz
